18

C

C

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

* Denotes parts included in

the Service Kit. Parts listed

are for stock models.

** For specific OEM models,

please consult the factory.

When corresponding or

ordering parts, please give

complete model and serial

numbers.

***Foot support assembly

optional on some models.

REF DESCRIPTION

QTY

GAST PART#

1

BODY

1

AK500

2

*

VANE

4

AH850A

3

SHROUD

1

AK502B

4

END PLATE

1

AK501

5

*

GASKET

1

AK521

6

MUFFLER BOX

1

AK519

7

*

O-RING

2

AK473

8

*

FELT

2

AK524

9

END CAP

2

AK510

10

END CAP FILTER

2

AK526

ASSEMBLY

11

FILTER / MUFFLER

1

B343B

12*** FOOT SUPPORT ASSM 1

AT209

13

FELT SUPPORT

1

B347

14

*

FELT FILTER

2

B344A

15

SCREEN CAP

1

AJ571

16

TOLERANCE RING

1

AH775B

17

ROTOR

1

AF105

18

*

GASKET AMBER

1

AL408

**

SERVICE KIT

1

K882/K886

Intake Filter

Assembly

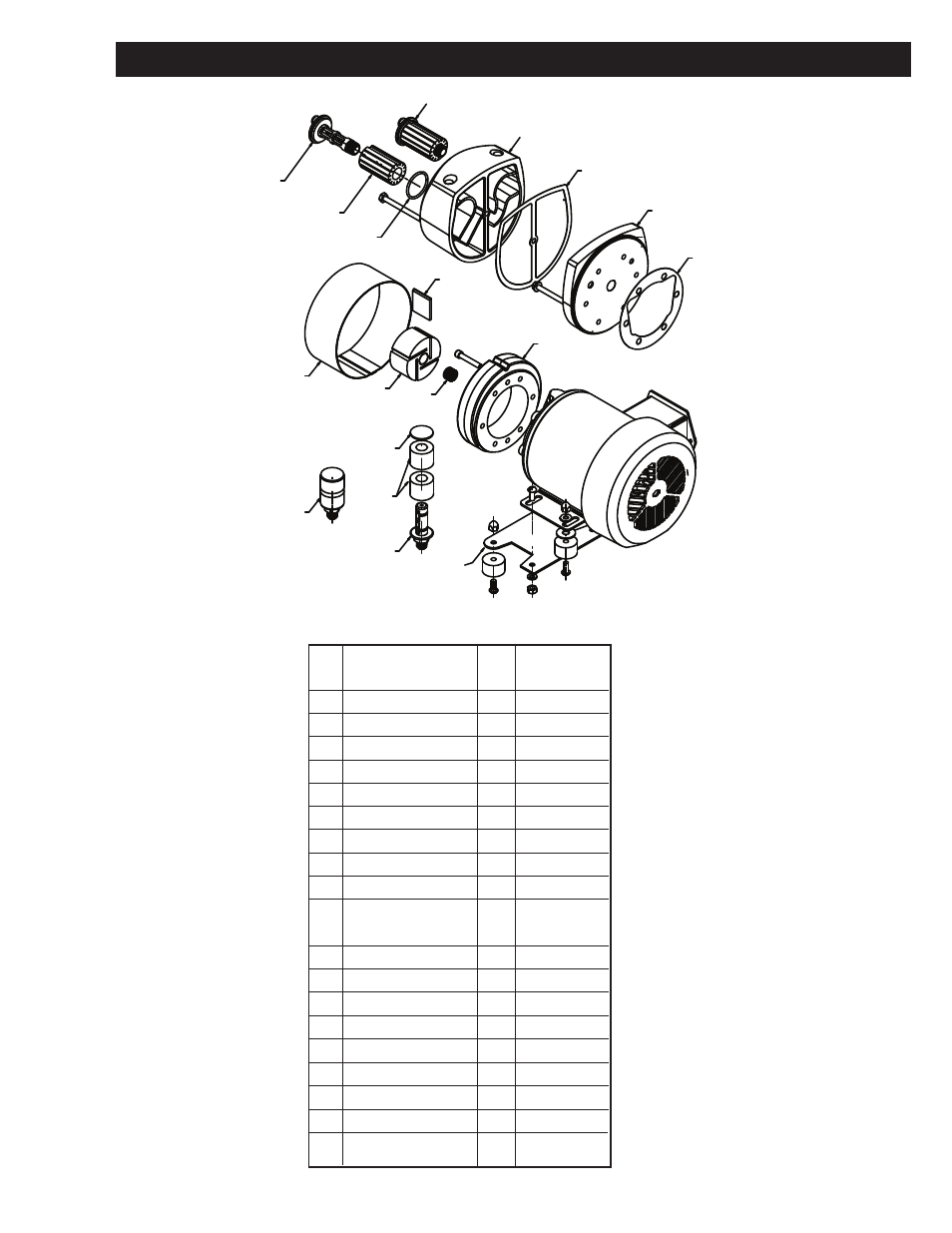

EXPLODED PRODUCT VIEW, PARTS AND ORDERING INFORMATION

5
