Gast 0523 Series Lubricated Laboratory Vacuum Pumps and Compressors - Manual (Page 7)

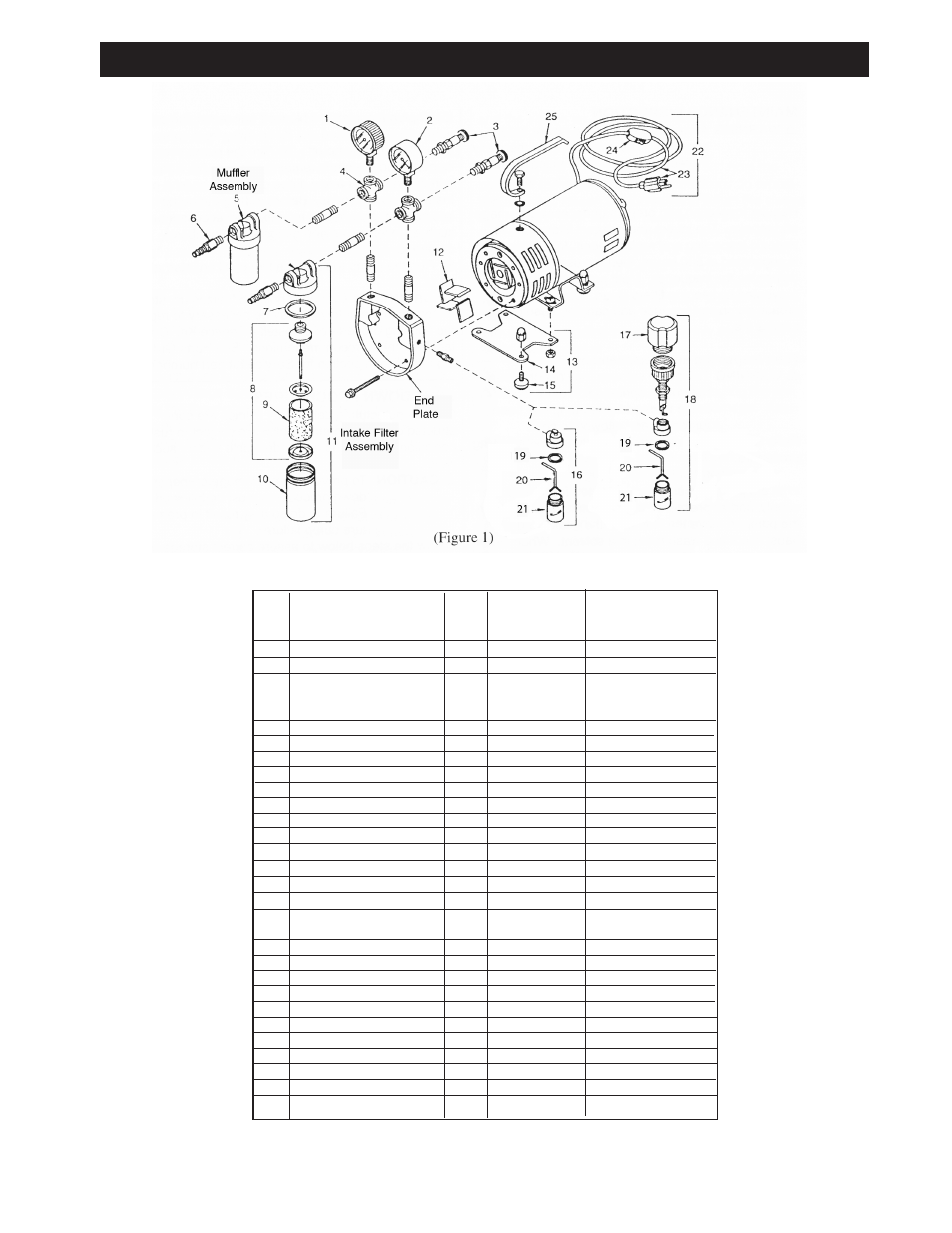

EXPLODED PRODUCT VIEW, PARTS & ORDERING INFORMATION
0323/0523/0823/1023 SERIES
REF DESCRIPTION QTY 0323-V4 0823-V4B
NO. 0523-V4A 1023-V4
1 PRESSURE GAUGE 1 AA644B AA644B
2 VACUUM GAUGE 1 AA640 AA640
REGULATOR ASSEMBLY 2 AA986B AK502
3 PRESSURE RELIEF VALVE 1 -- AA600
VACUUM RELIEF VALVE 1 -- AA840
4 CROSS 2 BA601 BA602
5 MUFFLER ASSEMBLY 1 AB609B AB608A
6 HOSE NIPPLE 2 AA254D AA239
7 ∆ COVER GASKET 2 AA404 AA404
INTAKE FILTER 1 AC433-1 AC433-1
8 ELEMENT ASSEMBLY
MUFFLER
1 AC434-1 AC434-1
9 ∆ CARTRIDGE 2 AC393 AC393
10 METAL JAR 2 AA132 AA132
11 INTAKE FILTER ASSM. 1 AB609D AB608B
12 ∆ VANE 4 AK731 AK741
13 FOOT SUPPORT ASSEMBLY 1 AC136 --
14 FOOT SUPPORT 1 AC135 --
15 RUBBER FOOT 4 -- AB319
16 SIPHON OILER 1 AA930B
17 OIL RESERVOIR 1 -- AD117
18 CONSTANT LEVEL OILER 1 -- AK125K
19 COVER GASKET - OILER 1 AA932 AA932
20 ∆ WICK 1 AA934 AA934
21 JAR 1 AA935A AA935A
22 CORD/SWITCH/PLUG ASSM 1 AA896 AL239 (0823-V4B ONLY)
23 CORD/PLUG ASSEMBLY 1 -- AL142 (0823-V4B ONLY)
24 SWITCH 1 -- AC169 (0823-V4B ONLY)
25 HANDLE 1 AC174 AF555
*** SERVICE KIT 1 K556A K486
7
∆ PARTS IN REPAIR KIT
*** PART NOT SHOWN
