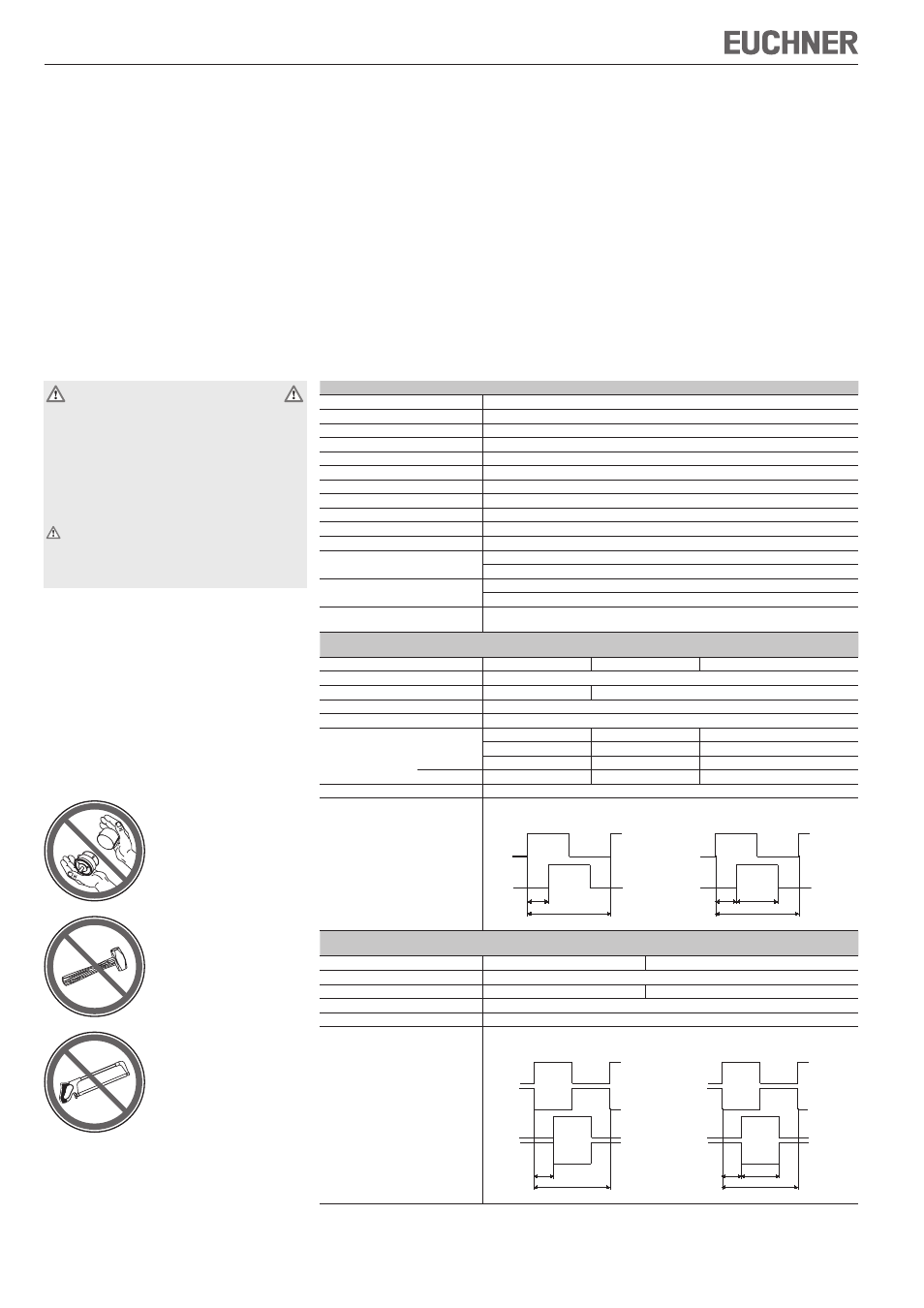

Operating instructions for electronic HBA handwheel with magnetic detent
EUCHNER GmbH + Co. KG Kohlhammerstraße 16 D-70771 Leinfelden-Echterdingen Tel. +49/711/75 97-0 Fax +49/711/75 33 16 www.euchner.de [email protected]
Correct use
The EUCHNER handwheel is a universal pulse gen-
erator for manual shaft positioning.
The handwheel is primarily used for positioning NC-
driven machine tools during set-up.
Handwheels are used as part of an overall higher-
level control system.
Their use, installation and operation are permissible
only in conformity with these Operating Instruc-
tions.
Correct use includes compliance with the relevant
requirements for installation and operation, in
particular

EN 60204, electrical equipment of machines
 EN 12100, safety of machines, general design
principles
 EN ISO 13849-1, safety-related parts of control
systems
Safety precautions
EUCHNER HBA handwheels are permanently inte-
grated into the HBA hand-held pendant station and
in this state meet the EMC protection requirements
according to EN 61000-6-2 and EN 61000-6-4.
HBA handwheels must not be used for residential
applications, in business or commercial areas or
in small businesses.
Appropriate safety measures must be taken to
prevent a malfunction of the handwheel which
could cause danger to human beings or dam-
age to operating equipment.
Function
Depending on the type, 100 or 25 square wave puls-
es per revolution are available on the handwheel‘s
output to the user.
A second phase-shifted output allows the connected
control to detect the direction of movement.
The pulses are evaluated in the control.
The detent mechanism is magnetic and is therefore
totally wear-free.
Assembly
The handwheel is integrated permanently.
Do not open the
handwheels!
Do not hit the handwheels!
Do not use tools on the
handwheels!
Electrical connection
The handwheel is already permanently connected
within the hand-held pendant station HBA.
Service and inspection
EUCHNER handwheels require no maintenance.
Handwheels may only be repaired by the manu-
facturer.
To clean the handwheels, only use solvent-free clean-
ing agents and a soft cloth.
Disclaimer of liability
The company does not accept liability regarding the
following cases:
 if the unit is not used for its intended purpose
 if the safety instructions are not followed

if the units are tampered with
Instructions for counting the handwheel
pulses: HBA handwheel
The following options are recommended for counting
the handwheel pulses:
 suitable counter module
 phase discriminator
Subject to technical modifications; no r
esponsibility is accepted for the accuracy of this information.
© EUCHNER GmbH + Co. KG
105823-02-04/09 (T
ranslation of the original operating instructions)
Technical data HBA handwheel, type HKB
Parameters Value
Pulses per revolution 2 x 25 or 2 x 100
Detent positions 100
Housing material Aluminium
Weight 95 g
Magnetic detent mechanism 0,04 ... 0.06 Nm
Shaft loading, axial, max. 25 N
Shaft loading, radial, max. 40 N
Mechanical service life, min. 5 x 10 6 U
Operating temperature 0 °C ... +50 °C
Storage temperature -20 °C ... +50 °C
Humidity, max. 80 % (condensation not permissible)
Degree of protection to the front In acc. with EN 60529 / IEC 529 IP 65
In acc. with NEMA 250-12
Resistance to Vibrations (3 axes) DIN/IEC 68-2-6
vibration Shock (3 axes) DIN/IEC 68-2-27
EMC protection requirements in acc.
with CE
EN 61000-6-2, EN 61000-6-4
Output circuit
Push-pull
Output stage
G05 G12 G24
Output signals A, B
Operating voltage U
B
DC 5 V ± 5 % DC 10 ... 30 V
Operating current, no load, max. 80 mA
Output specifications
Output voltage
HIGH (1), min. 4.0 V / 0 mA 4.9 V / 0 mA –
3.4 V / 5 mA 3.9 V / 5 mA –
3.0 V / 20 mA 3.6 V / 20 mA U
B
- 3 V / 20 mA
LOW (0), max. 1.3 V / 15 mA 1.3 V / 15 mA 3 V / 20 mA
Output current per output, max. 20 mA
Output signals
25 pulses
90°
360°
A
B
100 pulses
200 µs 400 µs
800 µs
A
B
Output circuit
RS422
Output stage
A05 A12
Output signals A, /A, B, /B
Operating voltage U
B
DC 5 V ± 5 % DC 10 ... 30 V
Operating current, no load, max. 80 mA
Output specifications In accordance with RS422A
Output signals
25 pulses
90°
360°
A
/A
B
/B
100 pulses
200 µs 400 µs
800 µs
A
/A
B
/B
