IMPORTANT: When replacing
water faucet coil, also replace
seal gaskets.

SERVICING INSTRUCTIONS (continued)

REPLACE SOLENOID

Symptom: Automatic brewer will not flow water; or,
automatic brewer drips continuously from brew head.

Unplug power cord or turn circuit breaker OFF. Turn OFF and
disconnect water supply from brewer inlet fitting.

Unscrew water inlet fitting from solenoid.

Remove two screws holding access door in place. Remove two
screws holding solenoid to door.

Remove brew water tube from solenoid. On faucet side, remove
faucet water tube from bypass side of solenoid by pressing the
white ring portion of the tube fitting tightly against the metal
portion while pulling the tube off of the solenoid.

Disconnect wiring from solenoid.

Transfer solenoid bracket to new solenoid.

Reassemble in reverse order.

CLEAN SOLENOID SCREEN

Symptom: Automatic brewer will not flow water.

Unplug power cord or turn circuit breaker OFF. Turn OFF and
disconnect water supply from brewer inlet fitting.

Unscrew water inlet fitting from solenoid.

Using needle-nose pliers, withdraw strainer screen from solenoid.
Clean screen under faucet. A stiff bristle brush may be used if
necessary.

Reinsert screen in solenoid. Be careful to maintain correct
orientation. (The OPEN END of the screen goes in FIRST.)

Reassemble in reverse order.

REPLACE TIMER ASSEMBLY

Unplug power cord or turn circuit breaker OFF.

Remove front panel. Remove knob and three screws holding
timer to bracket. Disconnect wiring to timer.

Reassemble in reverse order.
Adjust timer as described on page 13

REPLACE HOT WATER FAUCET COIL

Symptom: Brewer drips continuously from brew head, except
when faucet valve is turned OFF.

Remove tank lid assembly per above.

Remove two hex nuts hot water coil to cover. Pull coil from
mounting holes.

Reassemble in reverse order.

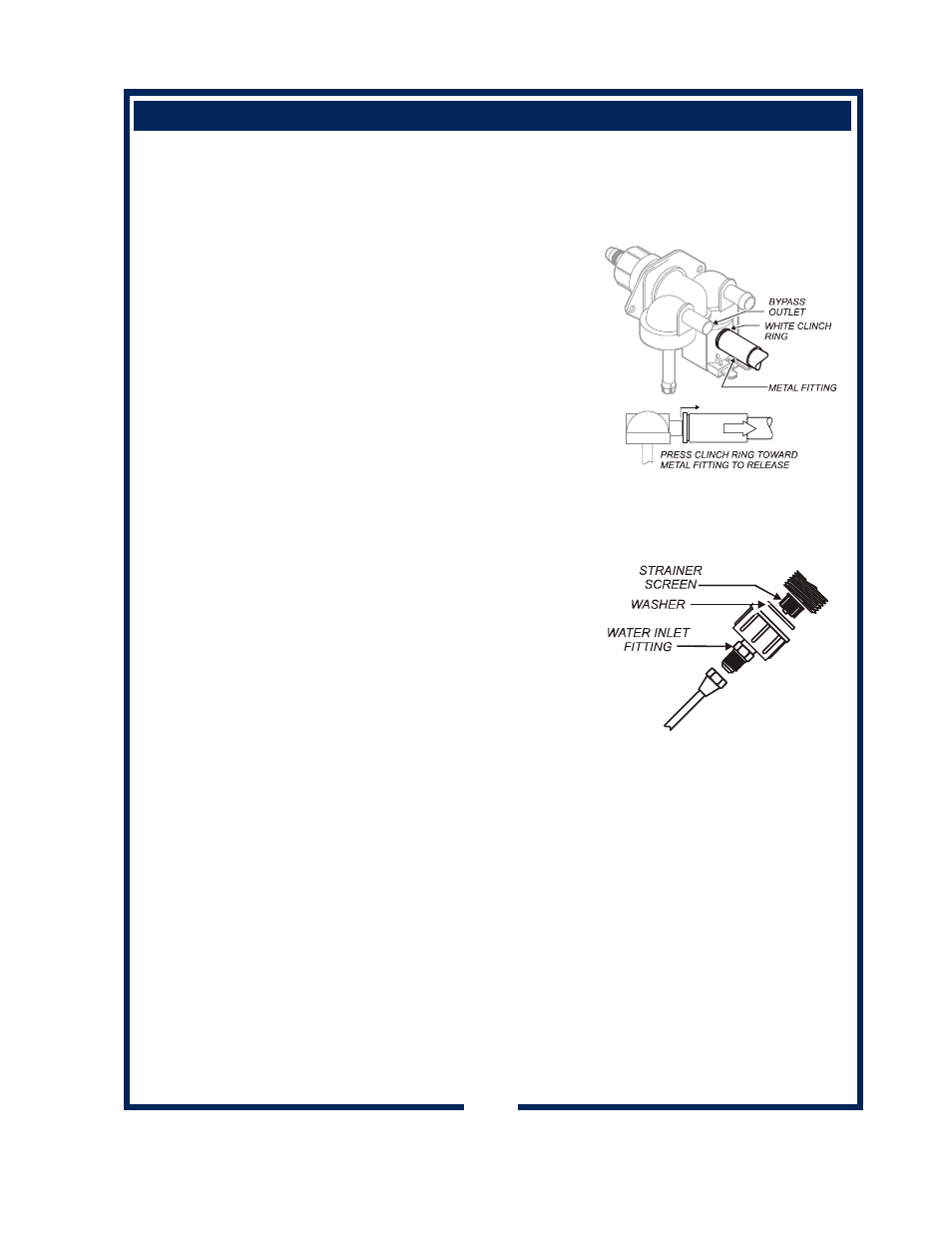

Fig. 14 Clean Strainer Screen

Fig. 13 Remove Faucet
Supply from Solenoid
