SERVICING INSTRUCTIONS
CAUTION
Electric Shock
Hazard
Opening access panels on this
brew may expose uninsulated
electrical components.
Disconnect brewer from
electrical power before
removing any panel.
ACCESS PANELS
TOP PANEL:
Remove top panel to access hot water tank, thermostat, heating
element, brew circuit tubing, faucet valve and piping, and
switches.
Top panel is held by two screws at the rear and a retaining lip at
the front.
FRONT PANEL:
Remove front panel to access timer, wiring and bypass nozzle
plumbing connections.
Front panel is held by two screws at the bottom and a retaining lip
at the top.
SOLENOID DOOR:
Remove solenoid door to access solenoid plumbing and electrical
connections.
Solenoid door is held by two screws and a retaining lip.

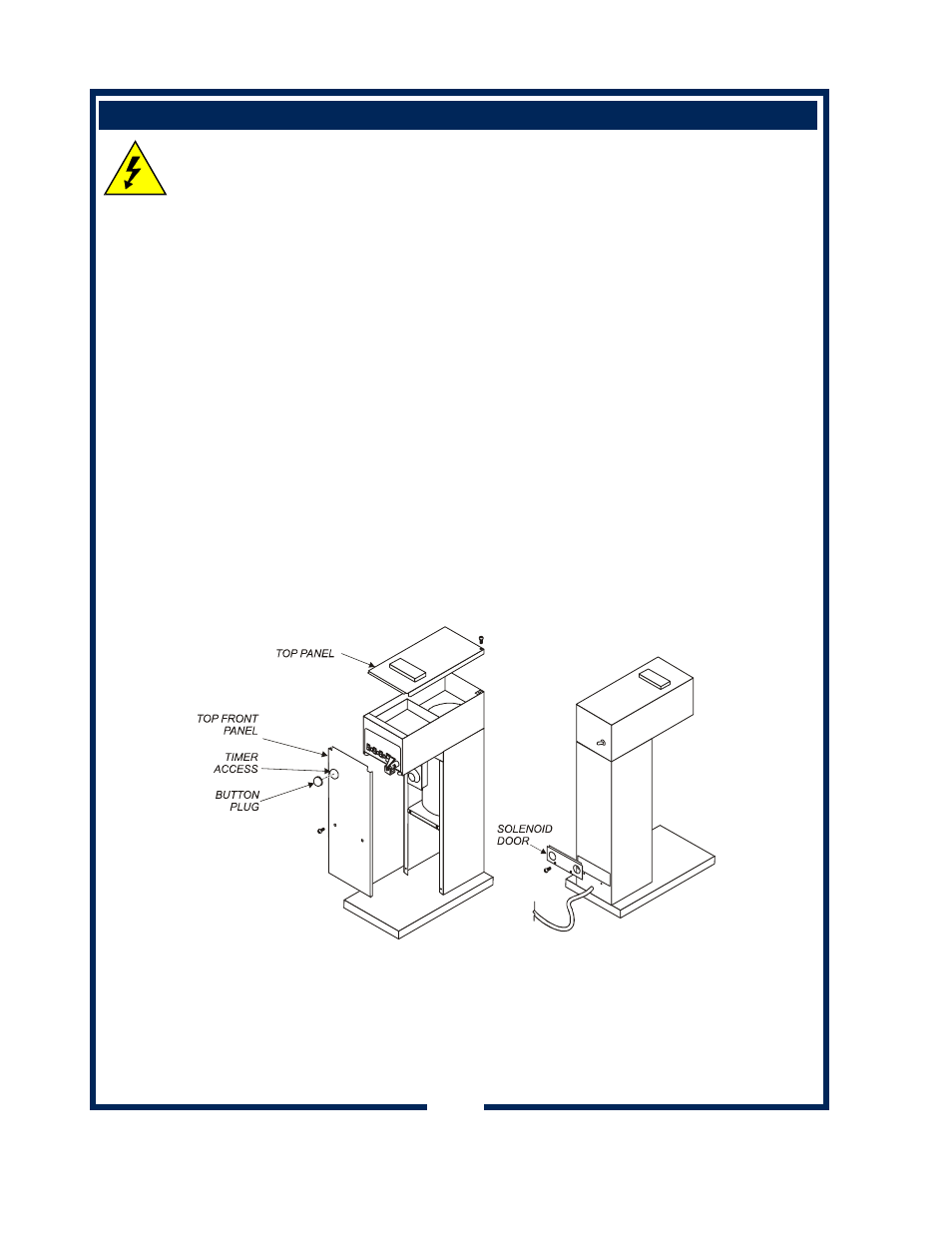

Fig. 9 Access Panels
