Bryant 559F User Manual
Page 44
—
44
—
559/579F240 AND 300, 460-3-60 UNITS
559/579F240 AND 300, 208/230-3-60 UNITS
LEGEND
C
— Contactor
OFC
— Outdoor (Condenser) Fan Contactor
FU
— Fuse
OFM
— Outdoor (Condenser) Fan Motor
IFCB
— Indoor Fan Circuit Breaker
TB
— Terminal Block
MMSN
— Motormaster Sensor
NOTE: See Lower Outdoor Ambient
Operation Accessories table on page 2
for correct application.

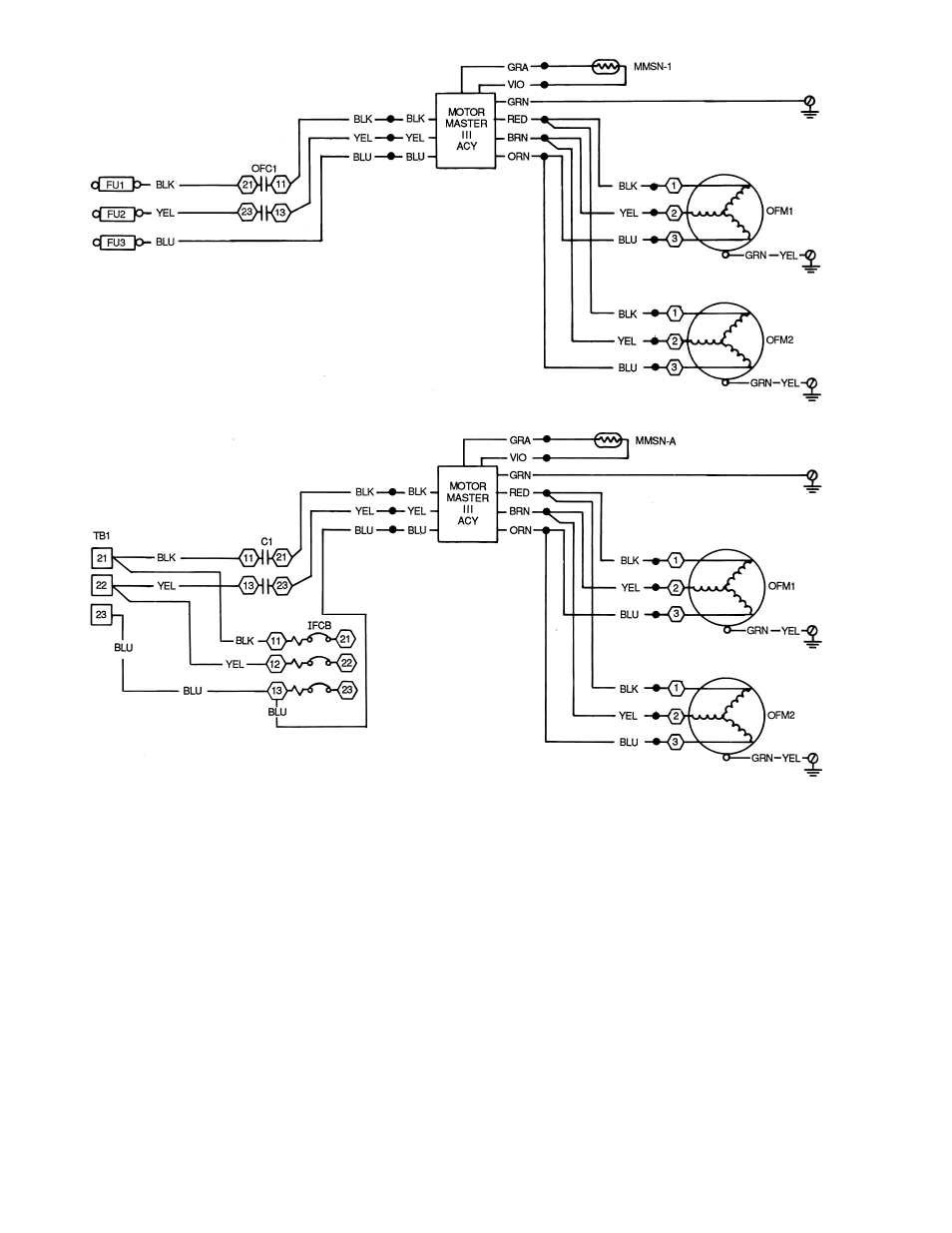

Fig. 27 — Motormaster® III Control Wiring; 559/579F240 and 300 Units
