Bryant 559F User Manual
Page 37
—
37
—
LEGEND

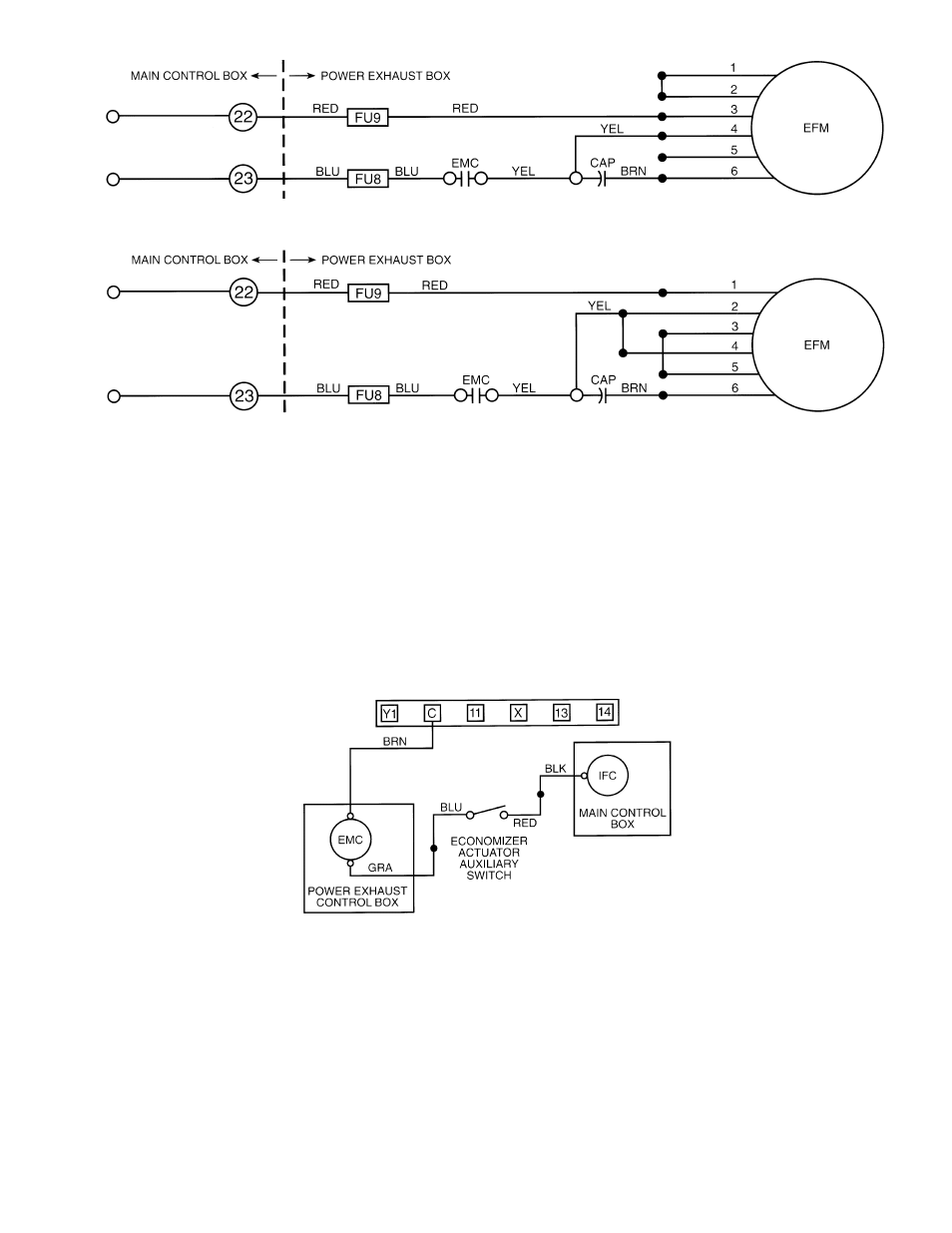

Fig. 17 — Power Exhaust Power Wiring
CAP — Capacitor
EFM — Exhaust Motor Contactor
EMC — Exhaust Fan Motor
FU
— Fuse
LEGEND
Fig. 18 — Accessory Power Exhaust Control Wiring
EMC — Exhaust Motor Contactor
IFC
— Indoor (Evaporator) Fan Contactor
B. 208/230 V (PART NO. CRPWREXH009A00 OR CRPWREXH008A00 WITH FIELD REWIRING)
A. 460 V (PART NO. CRPWREXH008A00)
