Bryant 559F User Manual
Page 38
—
38
—
LEGEND
*Time Guard II device connections.

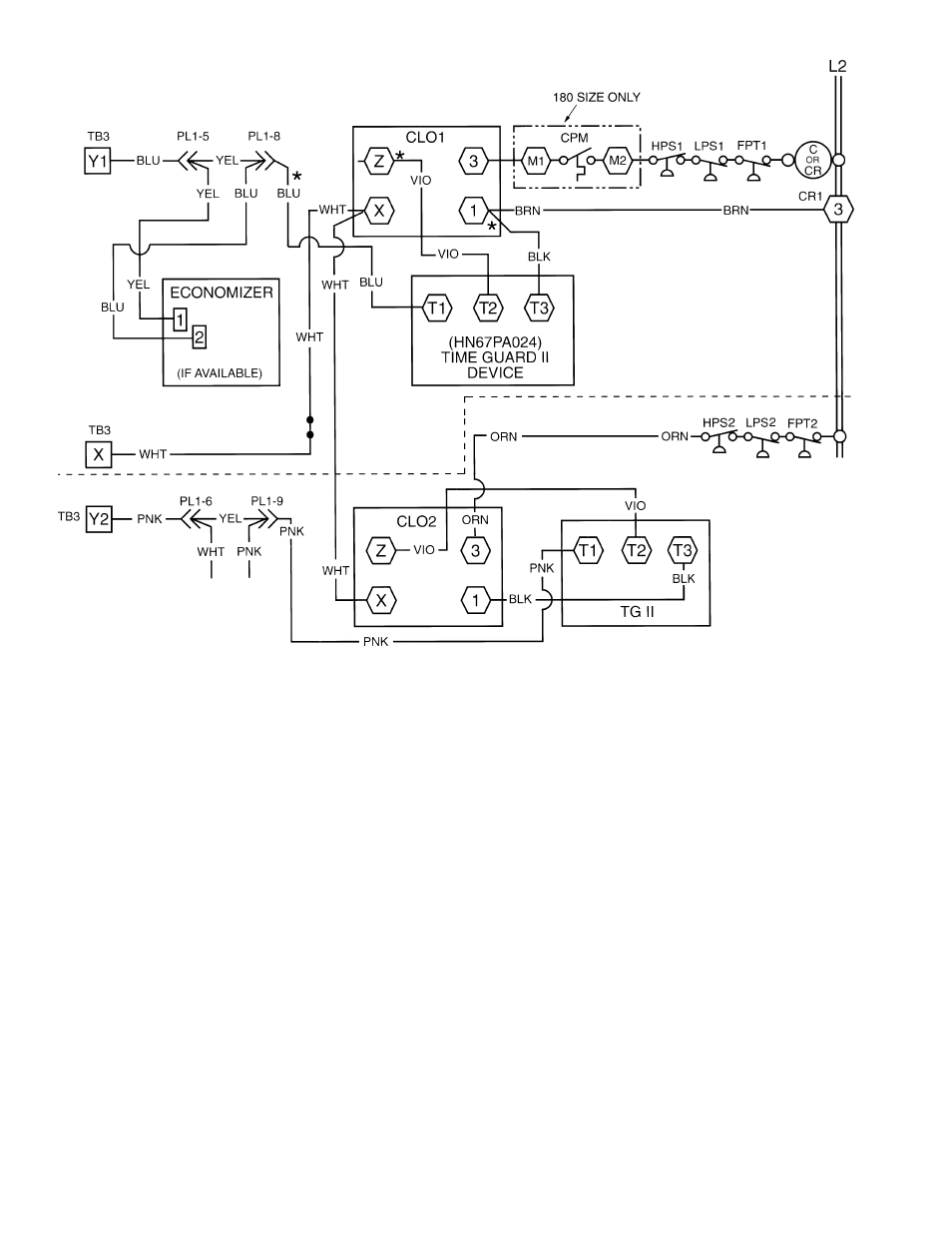

Fig. 19 — Time Guard® II Device Wiring
C
— Contactor
HPS
— High-Pressure Switch
CLO — Cooling Lockout
LPS
— Low-Pressure Switch
CPM — Compressor Protection Module
PL
— Plug
CR
— Control Relay
TB
— Terminal Block
FPT
— Freeze Protection Thermostat
TG II — Time Guard II Device
