Operating Instructions Safety System CES-AZ-UBS-01B
24
Read head CES-A-LCA-...
Ì
Cube-shaped design 42 x 25 mm
Ì
Plastic PE-HD housing material, suitable for use in aggressive media (e.g. ac-
ids, alkalis)

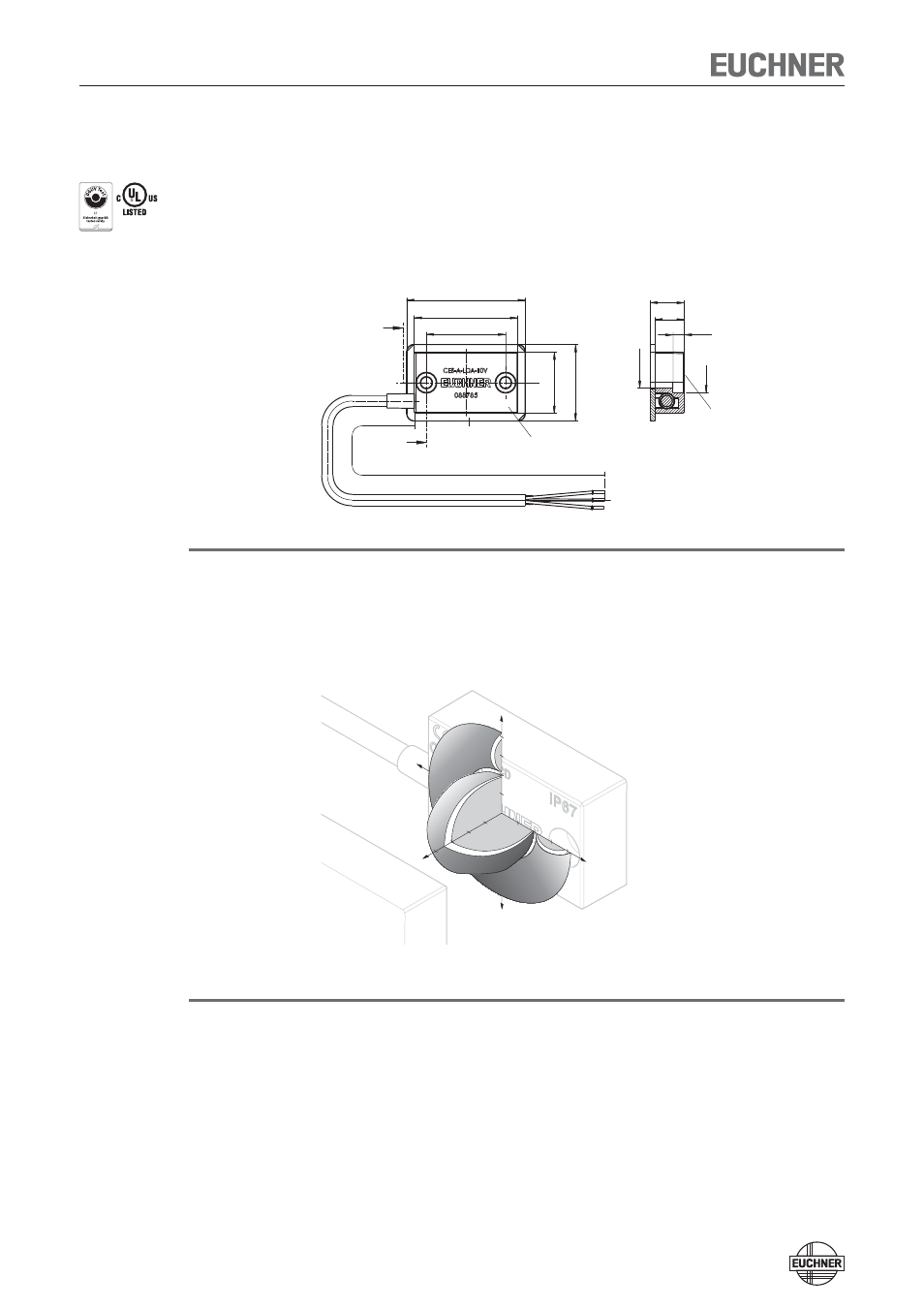

Dimension drawing
Note
The flat seal provided must be used during assembly.
Typical operating distance
With evaluation unit CES-AZ-UBS-... and actuator CES-A-BCA
Note
For a side approach direction for the actuator and read head, a minimum distance
of s = 3 mm must be maintained so that the operating distance of the side lobes
is not entered.
Approvals
32
42
48
25 31
l
12
14
4,6
8
4,
5
± 0,1
Active face
Active face
2 safety screws M4 x 14
included
Flat seal
X
20
15
10
5
20
15
10
5
5
10
15
20
Y
Z
