Operating Instructions Safety System CES-AZ-UBS-01B
17
Technical Data
Evaluation unit CES-AZ-UBS-01B
Ì
Housing for DIN rail mounting, IP 20
Ì
2 safety contacts (relay contacts)
Ì
2 internal NO contacts per safety contact
Ì
1 read head can be connected

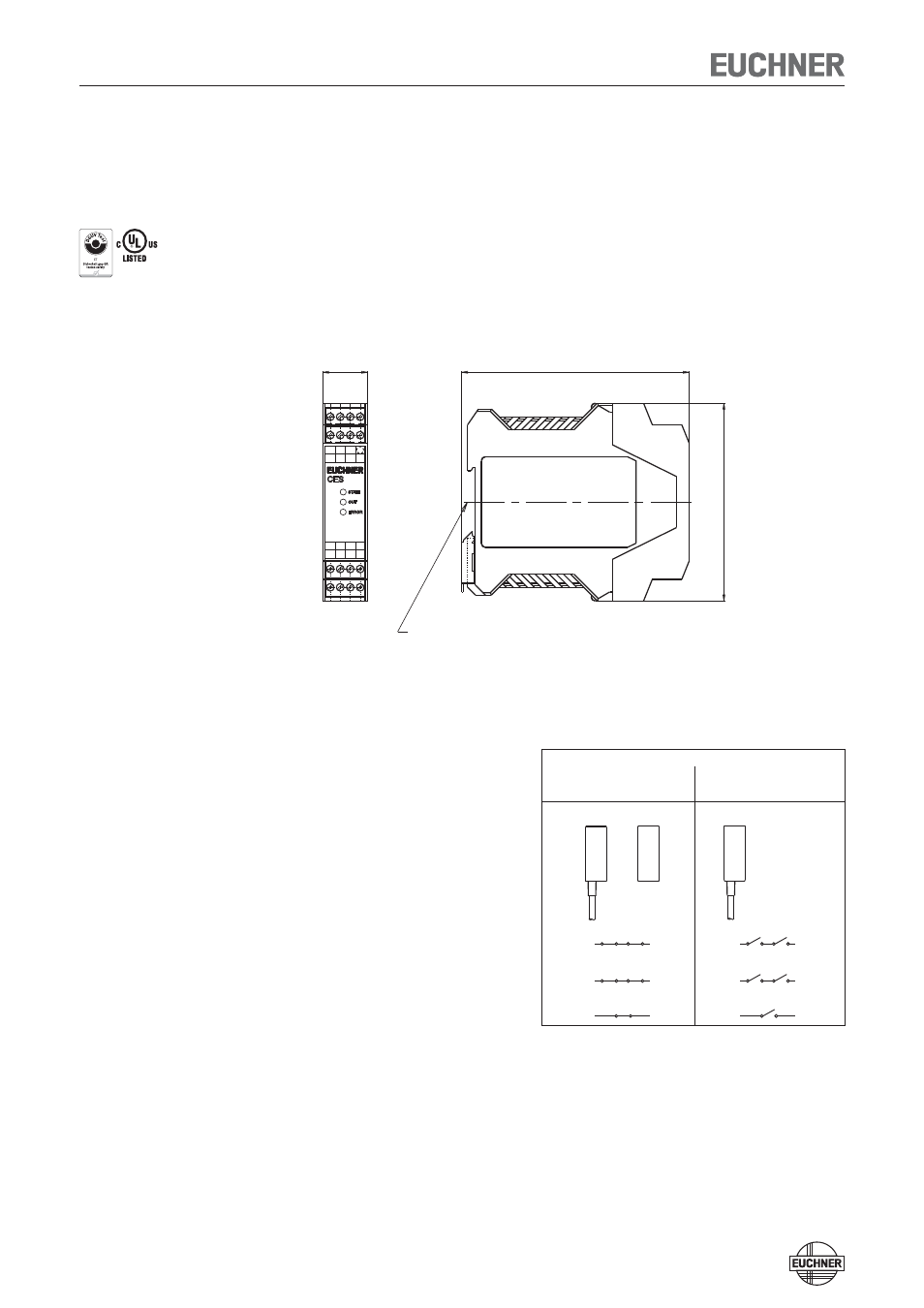

Dimension drawing
Switching characteristics
Ì
2 safety contacts
(relay contacts)
Ì
1 door monitoring contact
(semiconductor output,
not a safety output)
Approvals
CES
STATE
OUT
ERROR
114 22,5
99
13 14 23 24
GND ERR OUT TST
24V 0V
H11 H12 SH1
Suitable for standard 35 mm DIN rail
Safety guard
Closed
(actuator detected)
Open
(actuator not in the
operating distance)
Read head Actuator
13 14
23 24
24 V OUT
13 14
23 24
24 V OUT
Read head
