Read head ces-a-lna, Dimension drawing typical operating distance, Pin assignment – EUCHNER CES-AZ-UBS-01B (Multicode) User Manual

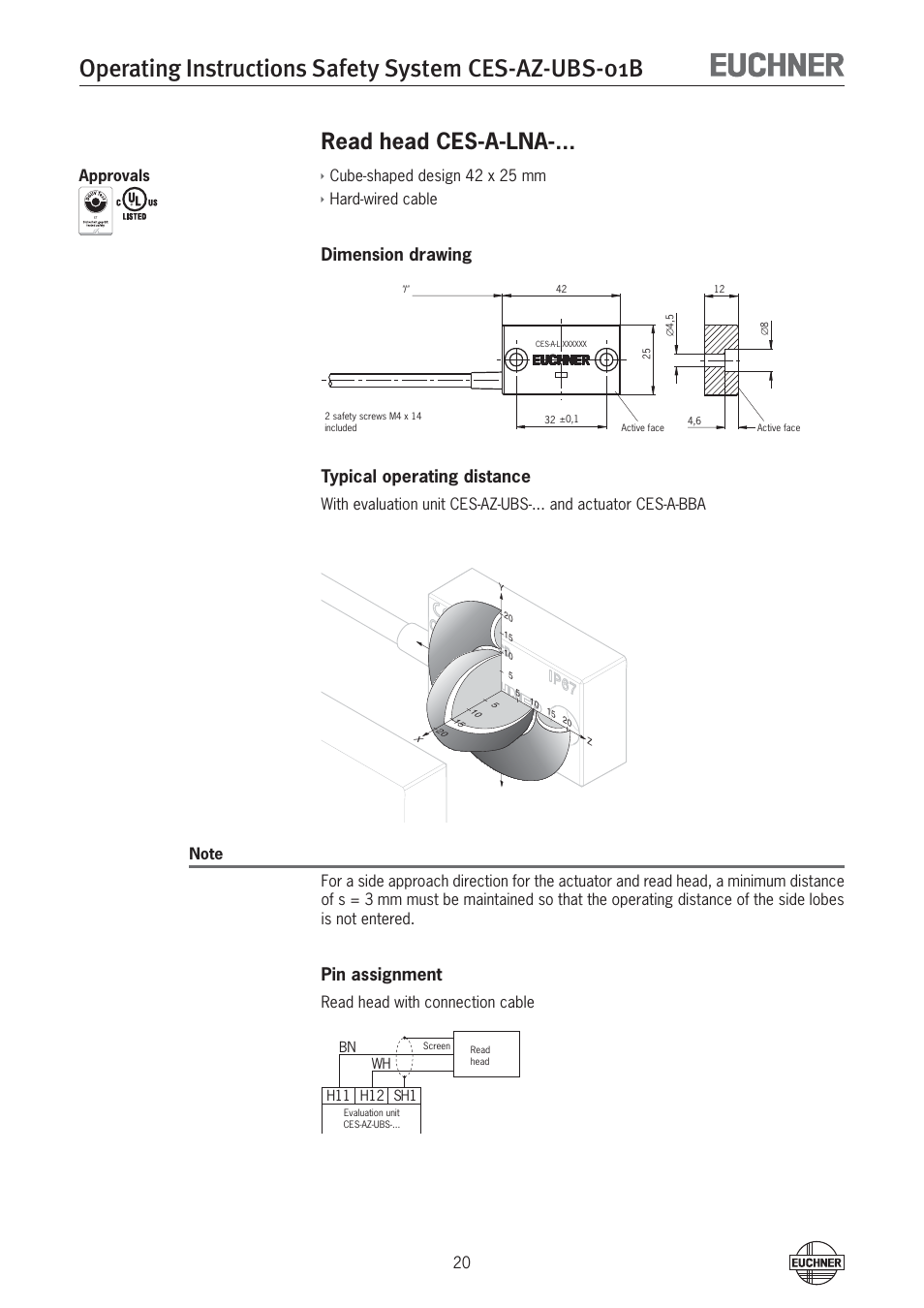

Page 20: Cube-shaped design 42 x 25 mm, Hard-wired cable, Read head with connection cable approvals
