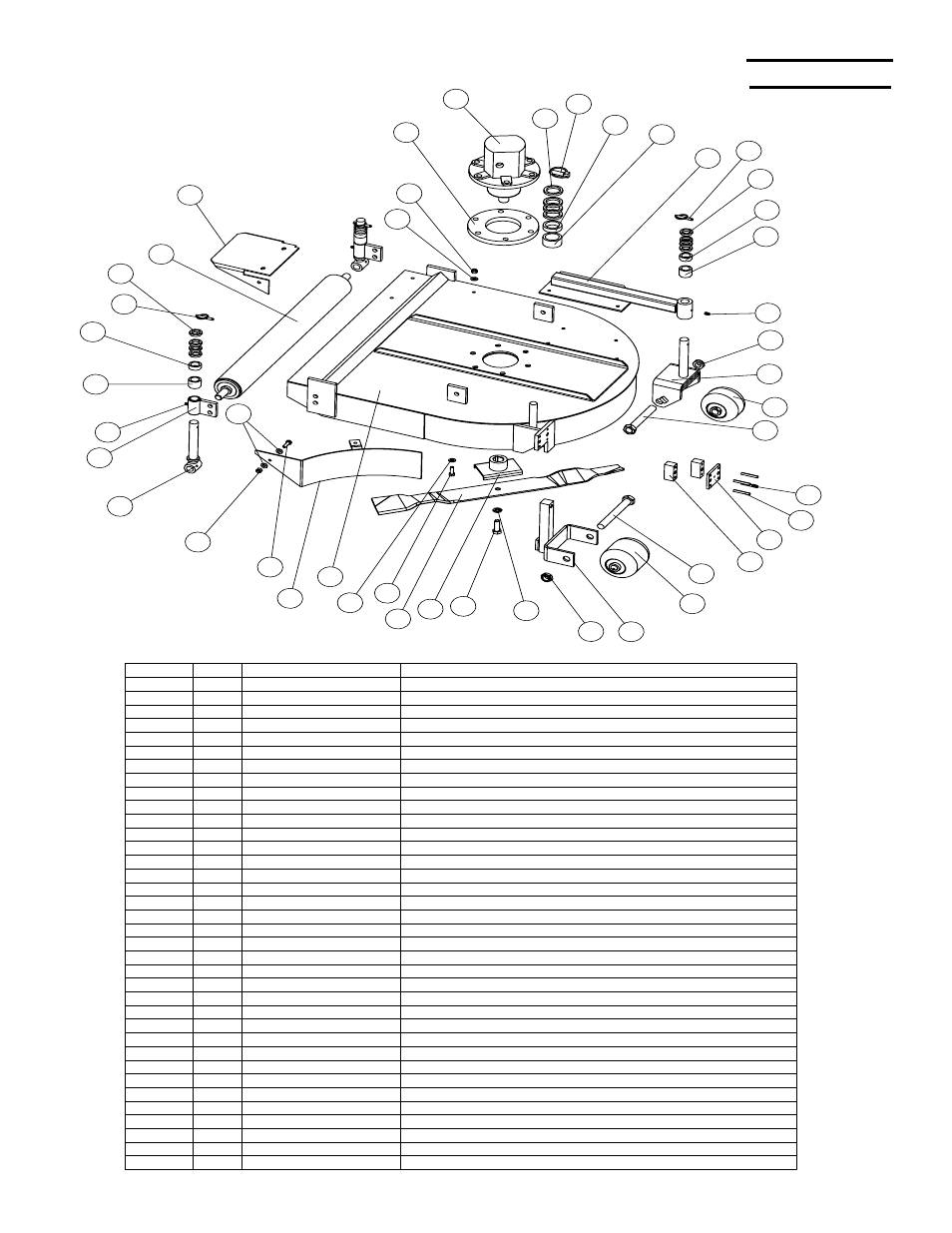

FIGURE 10—LEFT HAND MOWER ASSEMBLY
*
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 306107 WELDMENT - L DECK PLATFORM
2 1 306108 WELDMENT - CASTER PIVOT MOUNT
3 1 306074 WELDMENT - BLADE HOLDER
4 1 306058 WELDMENT - CASTER AXEL
5 2 306067 WELDMENT - REAR ROLLER ADJUSTER
6 2 306069 WELDMENT - HOUSING, REAR ROLLER ADJUSTER
7 1 306064 WELDMENT - FRONT ROLLER AXEL
8 1 306355 WELDMENT - CASTER FRAME
9 1 306376 WELDMENT - FRONT ROLLER FRAME
10 1 306444 ASSEMBLY - CASTER ROLLER
11 1 306443 ASSEMBLY - FIXED ROLLER
12 1 306442 ASSEMBLY - REAR ROLLER
13 1 306028 SPACER PLATE
14 1 306373 FACE PLATE
15 2 306374 SPACER BLOCK
16 1 306476 DISCHARGE SHIELD LH
17 1 306367 BLADE - STANDARD, LH
18 1 306311 MULCHING BLADE LH
19 1 306402 WASHER SPACER 1.0X1.88
20 1 306403 WASHER SPACER .5X1.88
21 4 306404 WASHER SPACER .25X1.88
22 3 306318 DECK SPACER 1.0X1.25
23 3 306319 DECK SPACER .5X1.25
24 12 306364 DECK SPACER .25X1.25
25 1 305736 DECK MOTOR - L DECK CW
26 3 07781 LYNCH PIN, 1/4", McM #90170A212
27 1 07782 LYNCH PIN, .44", McM #90170A221
28 4 04006 GREASE FITTING, STRAIGHT, 1/4-28 THRD
29 4 04016 SPRING PIN .25 X 1.75
30 2 02751 HEX JAM NUT, NYLOCK, 3/4-16
31 1 02186 BOLT HH 1/2-20 X 1.50 GR8
32 1 02305 LOCK WASHER, ½"
33 1 306113 WELDMENT - MULCHING DEFLECTOR, LH
34 2 02012 5/16-18 X 1.00 HHCS
35 4 02402 WASHER FLAT 5/16
36 2 02262 5/16-24 NYLOCK NUT
*OPTIONAL BLADE
