I-TRIM ®
13
2.4—DECK MOTORS AND BLADES
The I-Trim is available with standard or mulch-
ing blades. The Rear/Right decks require a RH
blade and the left deck uses a LH blade.
MULCHING BLADES
Rear/Right -P/N 306245 (stamped 306245)
Left -P/N 306311 (stamped 306311)
STRAIGHT BLADES
Rear/Right - P/N 306368 (stamped 4607)
Left - P/N 306367 (stamped 6406)
Motor rotation direction is stamped on the flange
of each deck motor. Rotation is clockwise (from
above) on right and rear decks and counter-
clockwise on left deck.
NEVER START TRACTOR WITH DECKS ROTATED

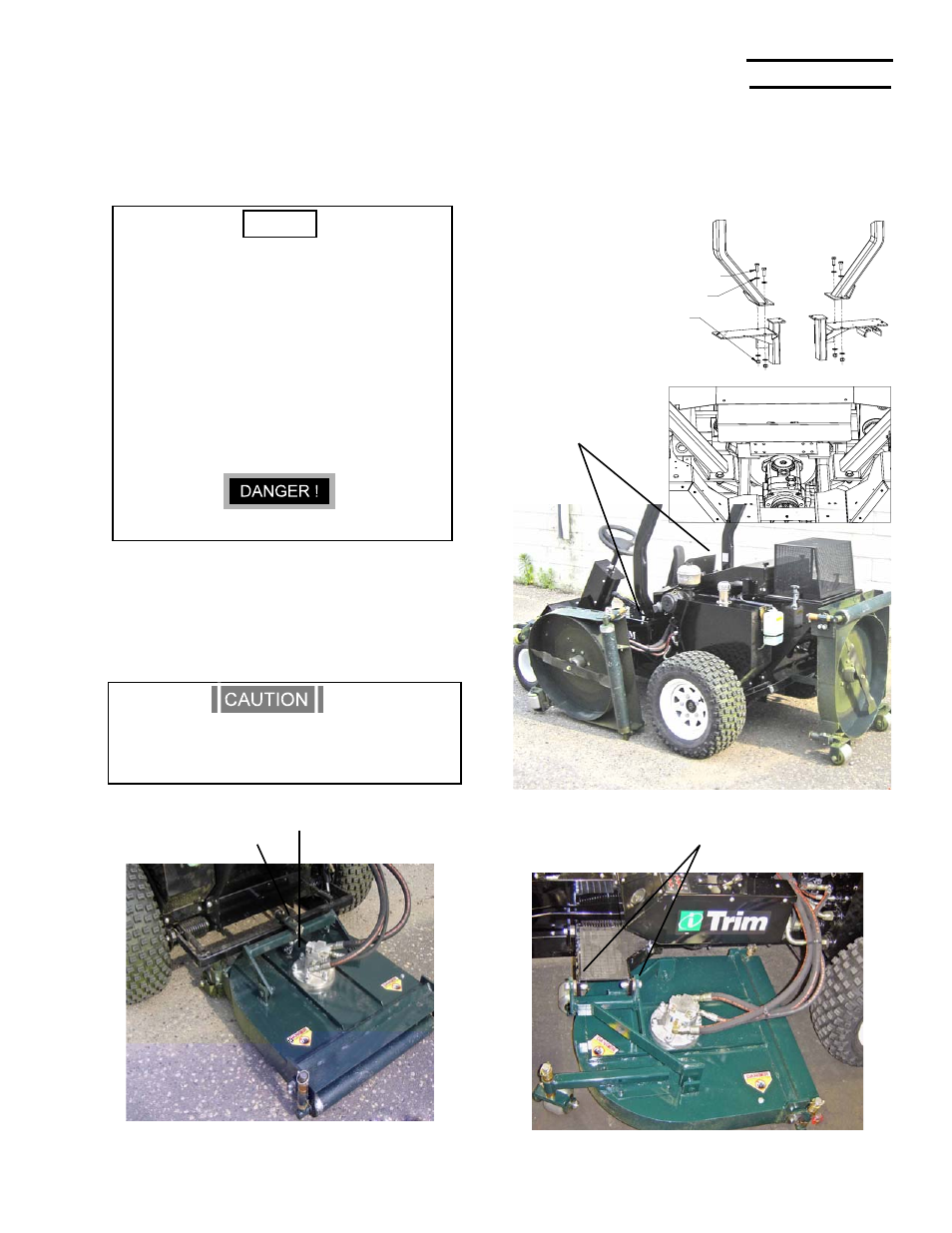

1. Rotate decks vertical as shown in Fig E. Install deck
motors with hoses rotated as shown in Fig C and D using
supplied botts and nyloc nuts. Note: install ring spacer
between motor and deck.
2. Install lift chains on rear deck with supplied bolts. Note:
The rear deck has a anti-flip chain with quick-release
connector link to allow easy removal for HOC adjustments.
2.5—ROPS
1. Install roll-over protective structure with supplied bolts and
nuts as shown on Fig E. ROPS can be installed with seat in
forward position. Lower ROPS over seat and insert LH side
into position. Slide ROPS to RH side and spread it slightly
to clear brackets. Install with supplied fasteners.
.
FIGURE C
FIGURE D
NOTE
Attachment shaft and roll pin
Side deck attachement bolts
Make sure anti-flip chain is installed on rear deck
to prevent deck from rotating during operation.
FIGURE E
Anti-flip chain
ROPS attachment points
HEX BOLT ½-20 X 1½ GR 5
(4)
WASHER ½ SAE
(8)
NUT, NYLOCK ½-20
(4)
