I-TRIM ®
49
32
3
15
27
7
8
2
2
8
27
6
26
25
10
11
24
16
17
18
12
22
21
20
19
23
25
5
9
4
1
13
28
29
30
31
32
33
32
31
33
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 306171 WELDMENT - DECK PLATFORM RR
2 2 306064 WELDMENT - FRONT ROLLER AXEL
3 1 306074 WELDMENT - BLADE HOLDER
4 2 306067 WELDMENT - REAR ROLLER ADJUSTER
5 2 306069 WELDMENT - HOUSING, REAR ROLLER ADJUSTER
6 1 306376 WELDMENT - FRONT ROLLER FRAME
7 1 306379 WELDMENT - FRONT ROLLER FRAME, RH
8 2 306443 ASSEMBLY - FIXED ROLLER
9 1 306442 ASSEMBLY - REAR ROLLER
10 2 306373 FACE PLATE
11 4 306374 SPACER BLOCK
12 1 306028 SPACER PLATE
13 1 306476 DISCHARGE SHIELD RH
14 1 306368 BLADE - STANDARD, RH
15 1 306245 MULCHING BLADE RH
16 2 306402 WASHER SPACER 1.0X1.88
17 2 306403 WASHER SPACER .5X1.88
18 8 306404 WASHER SPACER .25X1.88
19 2 306318 DECK SPACER 1.0X1.25
20 2 306319 DECK SPACER .5X1.25
21 8 306364 DECK SPACER .25X1.25
22 1 305737 DECK MOTOR - R, REAR DECKS, CCW
23 2 07781 LYNCH PIN, 1/4", McM #90170A212
24 2 07782 LYNCH PIN, .44", McM #90170A221
25 4 04006 GREASE FITTING, STRAIGHT, 1/4-28 THRD
26 8 04016 SPRING PIN .25 X 1.75
27 2 02751 HEX JAM NUT, NYLOCK, 3/4-16
28 1 02186 BOLT HH 1/2-20 X 1.50 GR8
29 1 02305 LOCK WASHER, ½"
30 1 306235 WELDMENT - MULTCHING DEFLECTOR, R, RR
31 2 02012 5/16-18 X 1.00 HHCS
32 4 02402 WASHER FLAT 5/16
33 2 02262 5/16-24 NYLOCK NUT

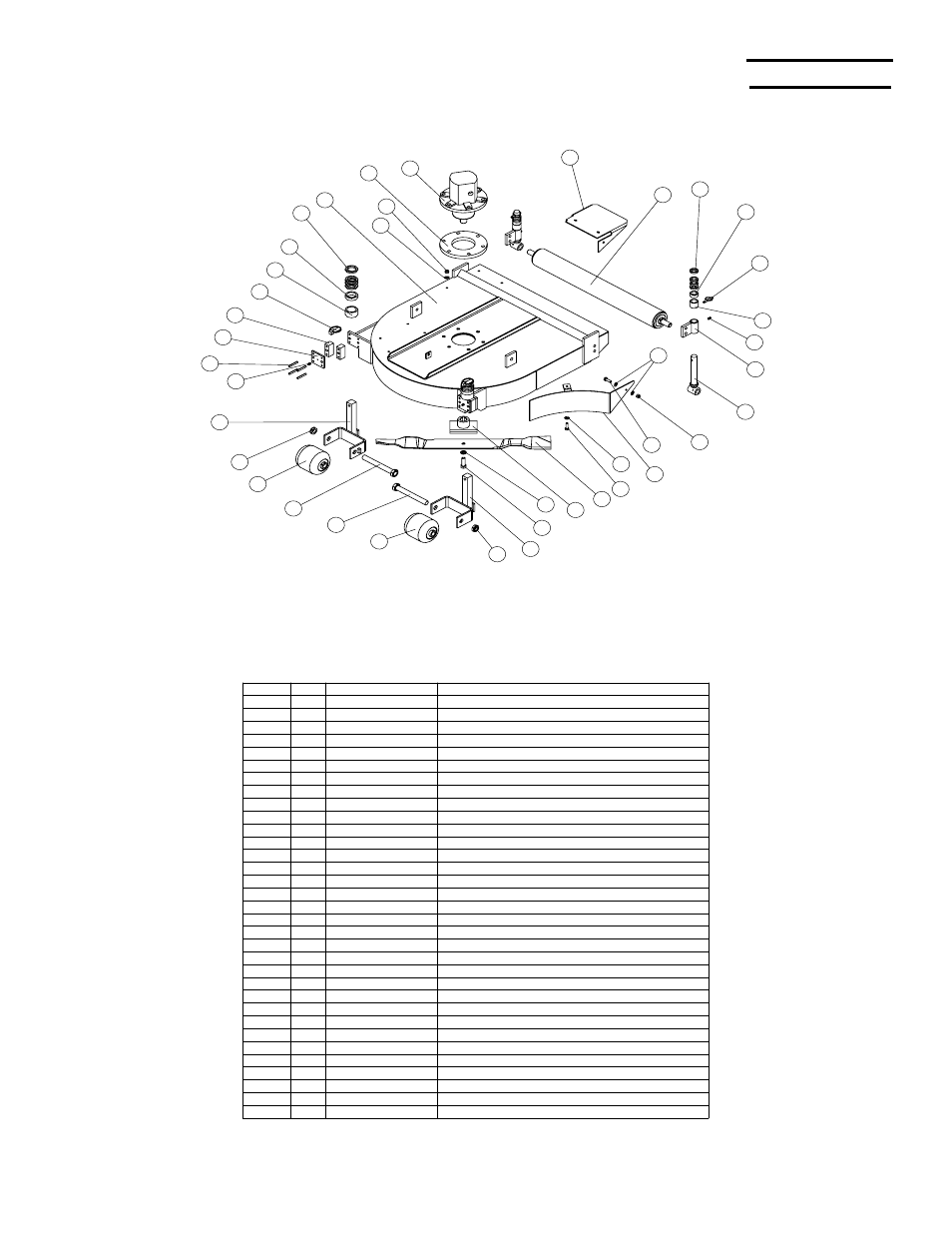

FIGURE 8—REAR MOWER DECK ASSEMBLY
*OPTIONAL PURCHASE
*
