Overview
The ETC Source Four LED CYC adapter is an attachment that installs on the front end of any Source
Four LED
™
light engine. The following procedure details the installation of this attachment.
Installation Instructions
Tools required
• #1 Phillips Screwdriver

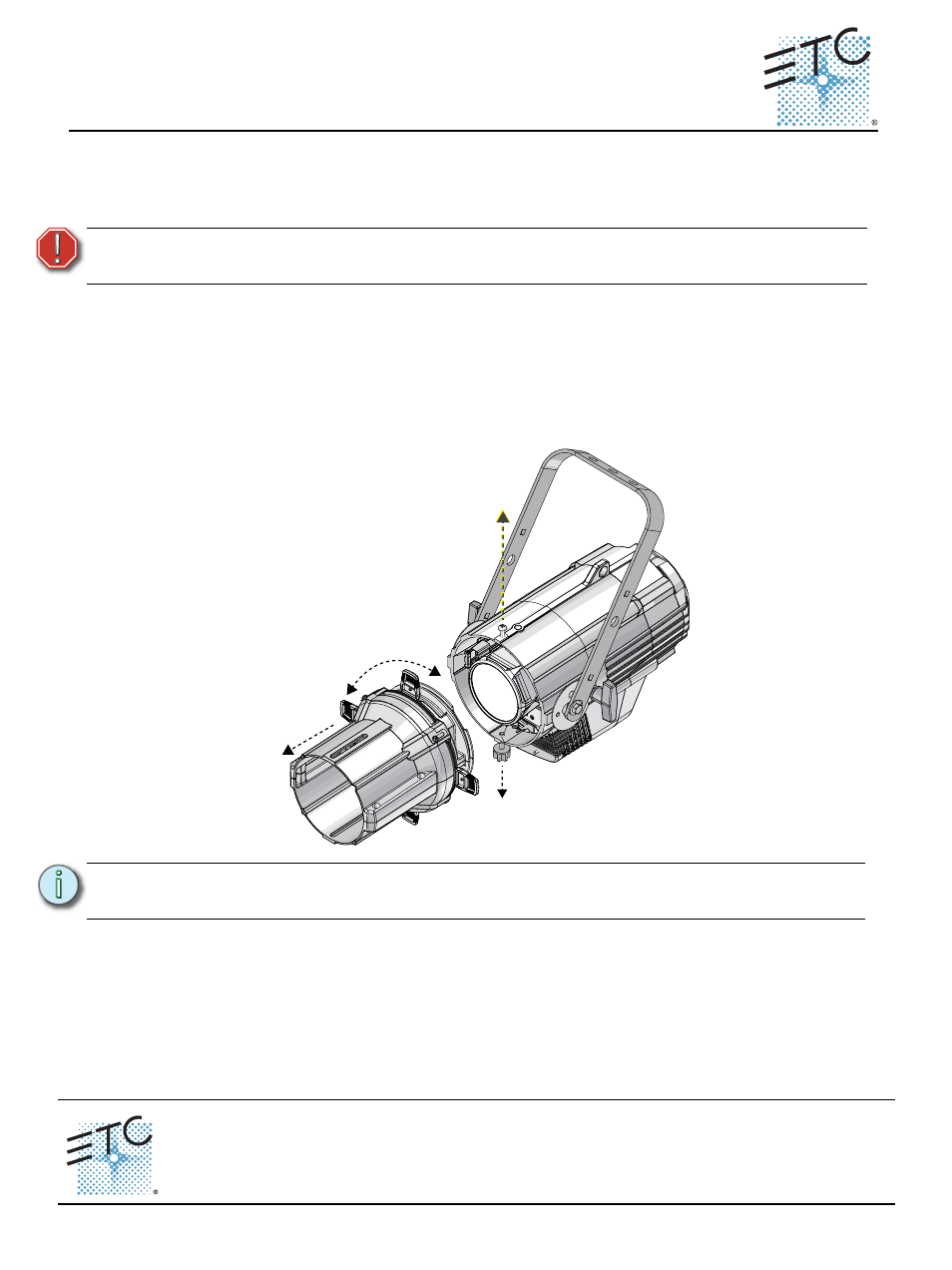

Unassembling the Source Four LED Shutter Barrel
Remove the lens tube from the Source Four LED fixture before removing the shutter barrel.
Step 1:
Loosen the small screw.
Step 2:
Loosen the barrel screw.
Step 3:
Rotate the barrel counter-clockwise. The barrel should slide easily off of the light engine.
W A R N I N G :
The Source Four LED CYC is not compatible with Source Four incandescent fixtures.
Use with incandescent fixtures will result in equipment failure.
N o t e :
Both the small screw and barrel screw will hold the CYC adapter in place with a
tension mounting and do not need to be fully removed when unassembling the fixture.
Step 1
Step 3
Step 2
Lens tube not
shown.
