Overview
The ETC Source Four LED CYC barn door is an attachment that installs on the front end of any Source
Four LED CYC adapter. The following procedure details the installation of this attachment.
Tools required
• Phillips Screwdriver
Installation Instructions
N o t e :
Both the top and bottom flaps must be folded in before installing the barn door.
N o t e :
The bottom flap of the barn door will give a hard-cut edge while the top flap is intended
to be used for glare control only.
Step 1:
There are two screws that ship with the
barn door accessory. Locate these
screws and set them aside.

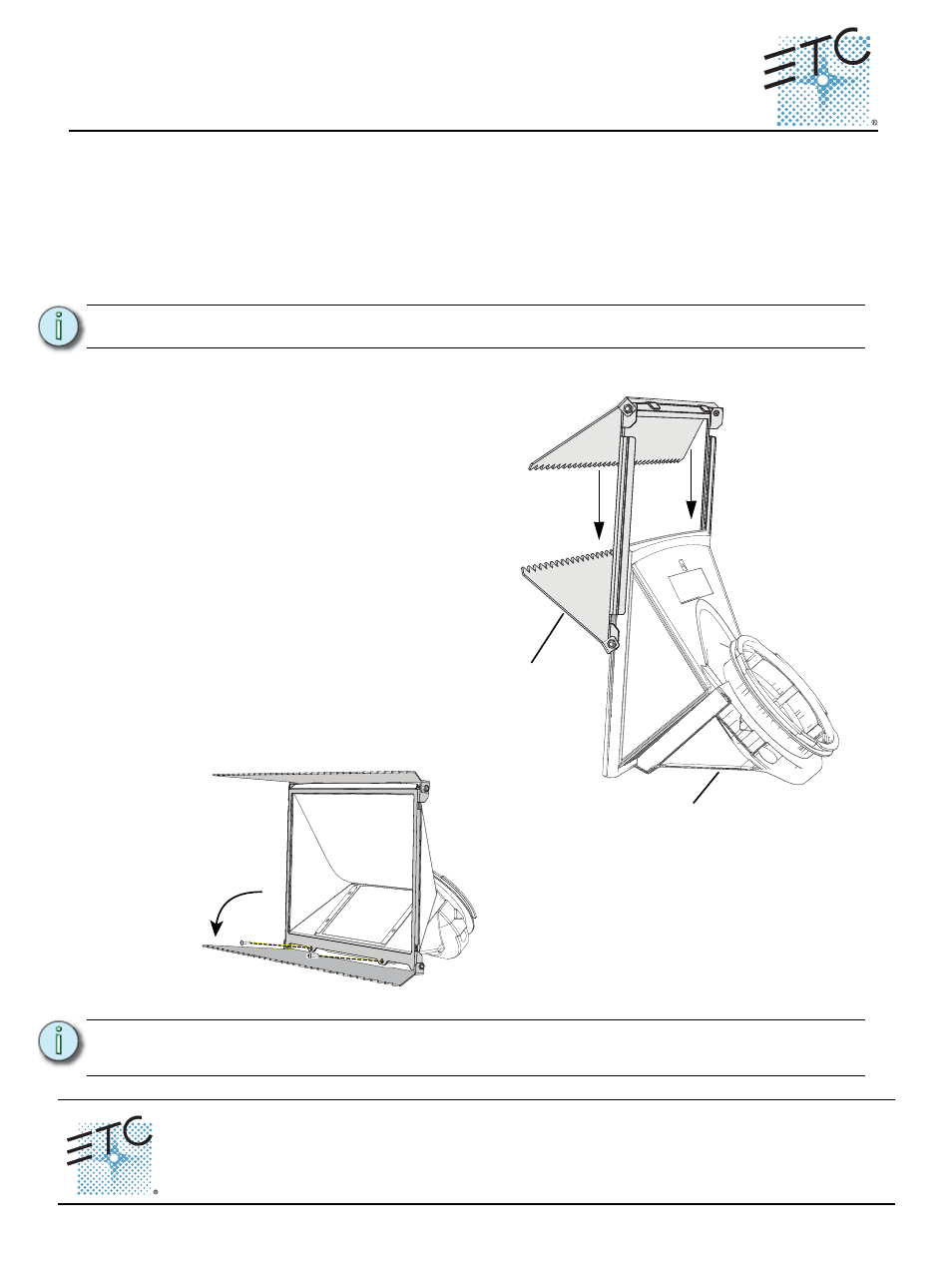

Step 2:
With the flaps folded in, align the barn
door accessory with the left and right
edges of the CYC adapter.
Step 3:
Slide the barn door accessory onto the
CYC adapter as shown.
Step 4:
Hinge the bottom flap open.
Step 5:
Using the Phillips screwdriver, install the
two screws to secure the barn door in
place.
Screws must be fully tightened below the
lower edge of the CYC adapter to secure the
barn door in place and allow full movement of
the bottom flap.
Light engine
has been
removed for
clarity.
CYC
adapter
Barn door
accessory
Step 4
Step 5
