4 Source Four jr/jr Zoom CE User Manual
English
HPL lamp table
Colour frame holder
The colour frame holder is equipped with a spring-loaded retaining clip that prevents colour frames
and accessories from falling out. See Figure 2 .
Step 1: Release the retaining clip by pushing it sideways while gently pulling backwards.
Step 2: Insert the colour frame.
Step 3: Lock the retaining clip by pushing sideways while gently pushing forward.
C A U T I O N : The Source Four jr is rated for 575w maximum lamp. Do not use lamps other than
the HPL in Source Four fixtures. Use of lamps other than HPL or greater than
575w will void your warranty.
Lamp code Watts Volts Initial Lumen Colour
temp.
Average rated life
HPL 575/230 575 230 14,900 3,200°K 400 hours
HPL 575/230X 575 230 11,780 3,050°K 1500 hours
HPL 375/230 375 230 7,250 3,000°K 1000 hours
HPL 575/240 575 240 14,900 3,050°K 400 hours
HPL 575/240X 575 240 11,780 3,050°K 1500 hours
HPL 375/240X 375 240 19,750 3,000°K 1000 hours
W A R N I N G : Make sure all colour frame accessories are locked in position with the
retaining clip before hanging the Source Four jr / jr Zoom CE.
N o t e : The performance of saturated colours may be less than desirable in any theatrical
lighting luminaire. For best results, always use high-quality colour media rated for
high-temperature use.
ETC’s optional Conical Gel Extender, part # 7060A1048, will provide maximum
colour media life. Gel Extenders are not recommended for 70° and 90° lens tubes
due to the extremely wide-angle beam.
A variety of heat shield products is also available from many colour media
manufacturers. Follow the manufacturer’s instructions for the use of these
products.

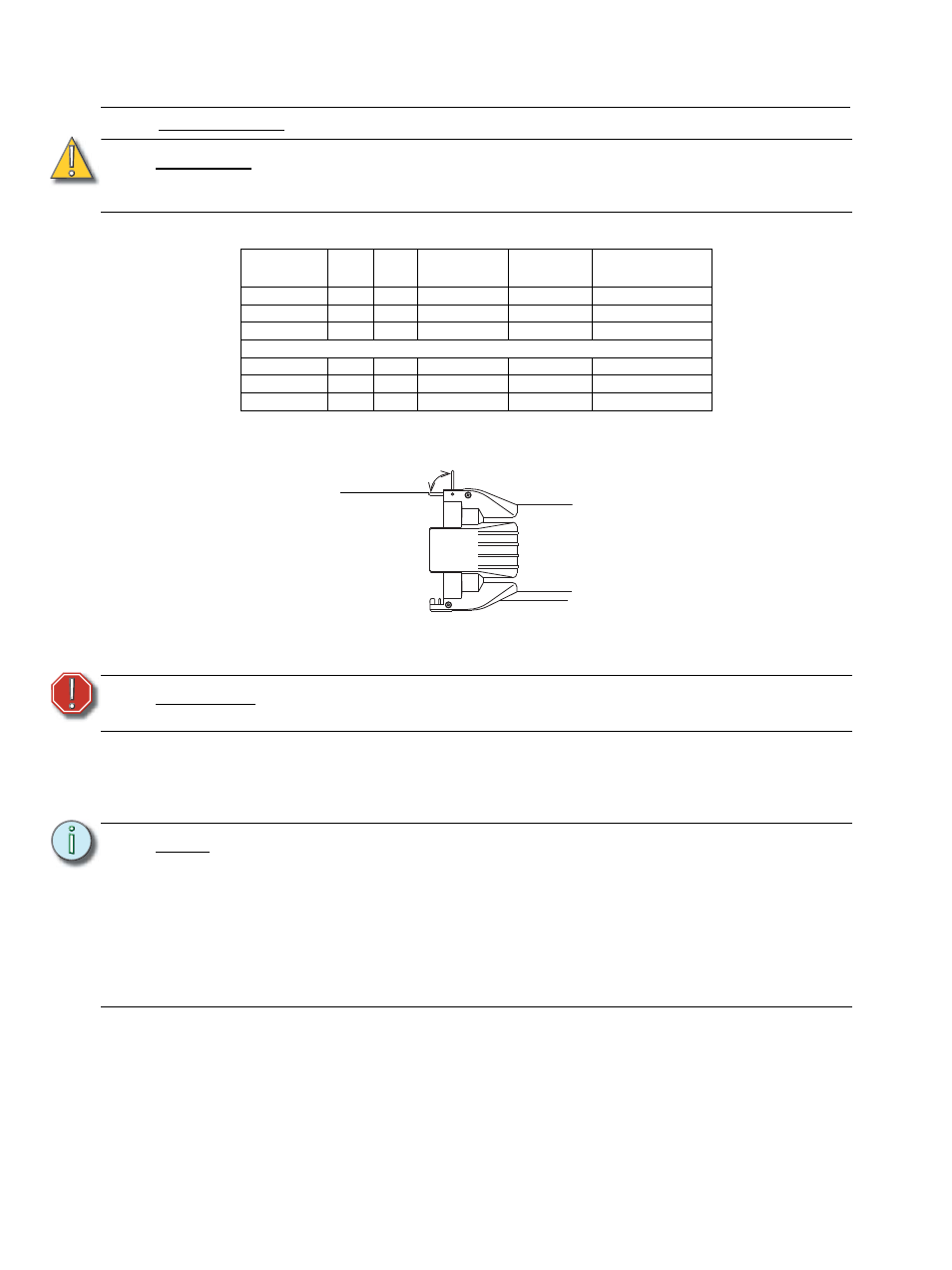

Figure 2
Retaining clip
