6 Source Four Mini LED User Manual

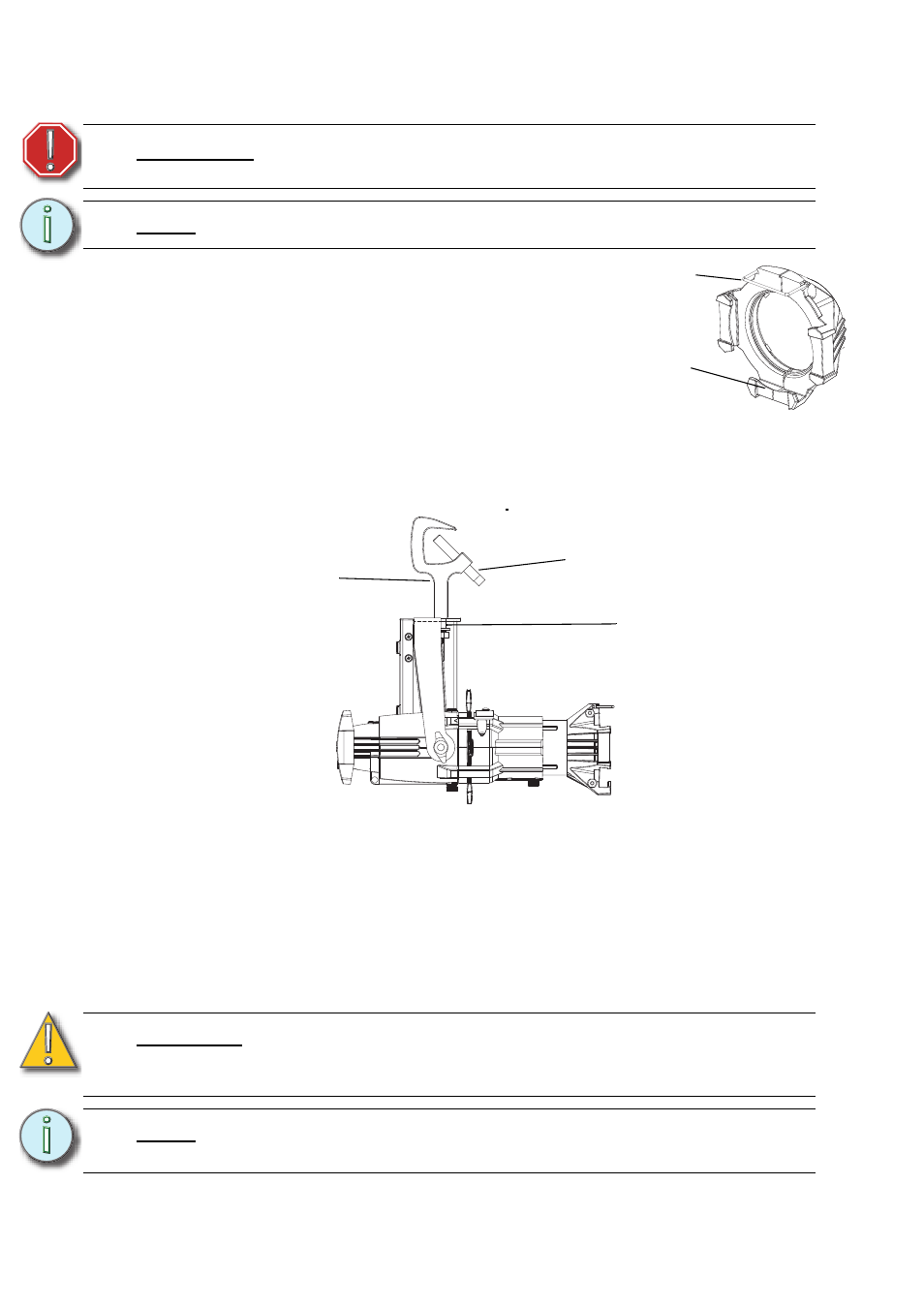

Step 1: Release the retaining clip by gently
pushing it up.
Step 2: Insert the color frame.
Step 3: Lock the retaining clip by gently pushing it
down.
Additional accessories are available for the Mini LED
that also fit into the color frame holder. Those
accessories are top hat, short top hat, half hat, short
half hat, and donut. When an accessory is used, the color frame should be installed
in the rear slot of the holder.
Adjusting the C-clamp on the Portable
The C-clamp attaches the fixture to the mounting pipe and allows you to adjust the
position of the fixture once it is mounted. The C-clamp will fit a 3/8” to 1” pipe.
Step 1: Tightly fasten the C-clamp to the yoke with the provided yoke bolt and
lock washer.
Step 2: Place the C-clamp on the mounting pipe, and then tighten the pipe bolt
to secure it.
Step 3: Loosen the C-clamp yoke bolt and rotate the yoke to the desired position.
Step 4: Tighten the bolt to lock the fixture.
WARNING: Make sure the color frame is locked in position with the
retaining clip.
N o t e : The color frame should be inserted open side down.
C A U T I O N : Tighten the C-clamp pipe bolt to about 18in/lbs. (Approximately
finger tight plus up to one-quarter turn.) Do not use excessive
force.
N o t e : The Source Four Mini LED yoke has a C-clamp hole with a .406”
diameter.
Retaining
clip
Color
Frame
Holder
Yoke bolt
Pipe bolt
C-clamp
