E T C I n s t a l l a t i o n G u i d e
D40/D60 XTI Grid Louver
D40/D60 XTI Grid Louver Page 2 of 2 Electronic Theatre Controls, Inc.
To install the Grid Louver:
Step 1: Using a #2 Philips screwdriver, remove the four trim ring screws and washers, the trim
ring, and the rubber washers.
Step 2: Place the Grid Louver on top of the enclosure glass.
Step 3: Optional: place a clear tempered glass lens (not included) on top of the Grid Louver.
Step 4: Reinstall the four screws and washers through the front of the trim ring, then reinstall the
four rubber washers to the back side of the screws between the trim ring and the
enclosure housing.
Step 5: Align the trim ring with the Grid Louver (and optional glass lens) to the fixture, and secure
screws.
N o t e : Be careful not to lose the rubber washers that are placed between the trim ring and
the fixture housing. Replacement washers can be purchased from ETC (part #
HW6398)

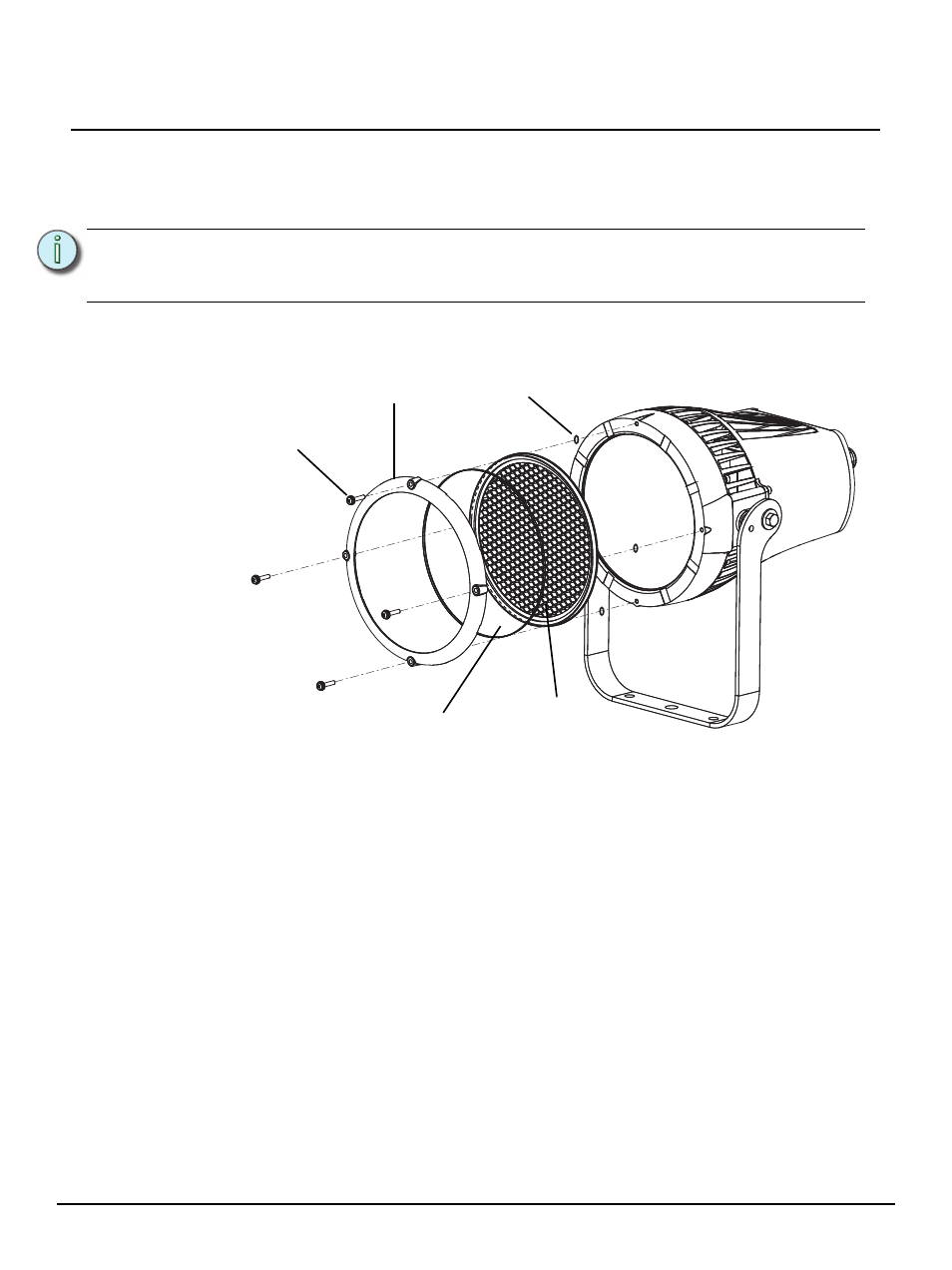

Rubber
washers (4)
Screws and
washers (4)
Trim ring
Grid Louver
Tempered glass
(optional)
