Gold Bassoon Installation Guide
MAN-G-BASIG-EC (Ver. 1.002)
|STO| www.elmomc.com
43
Table of Contents

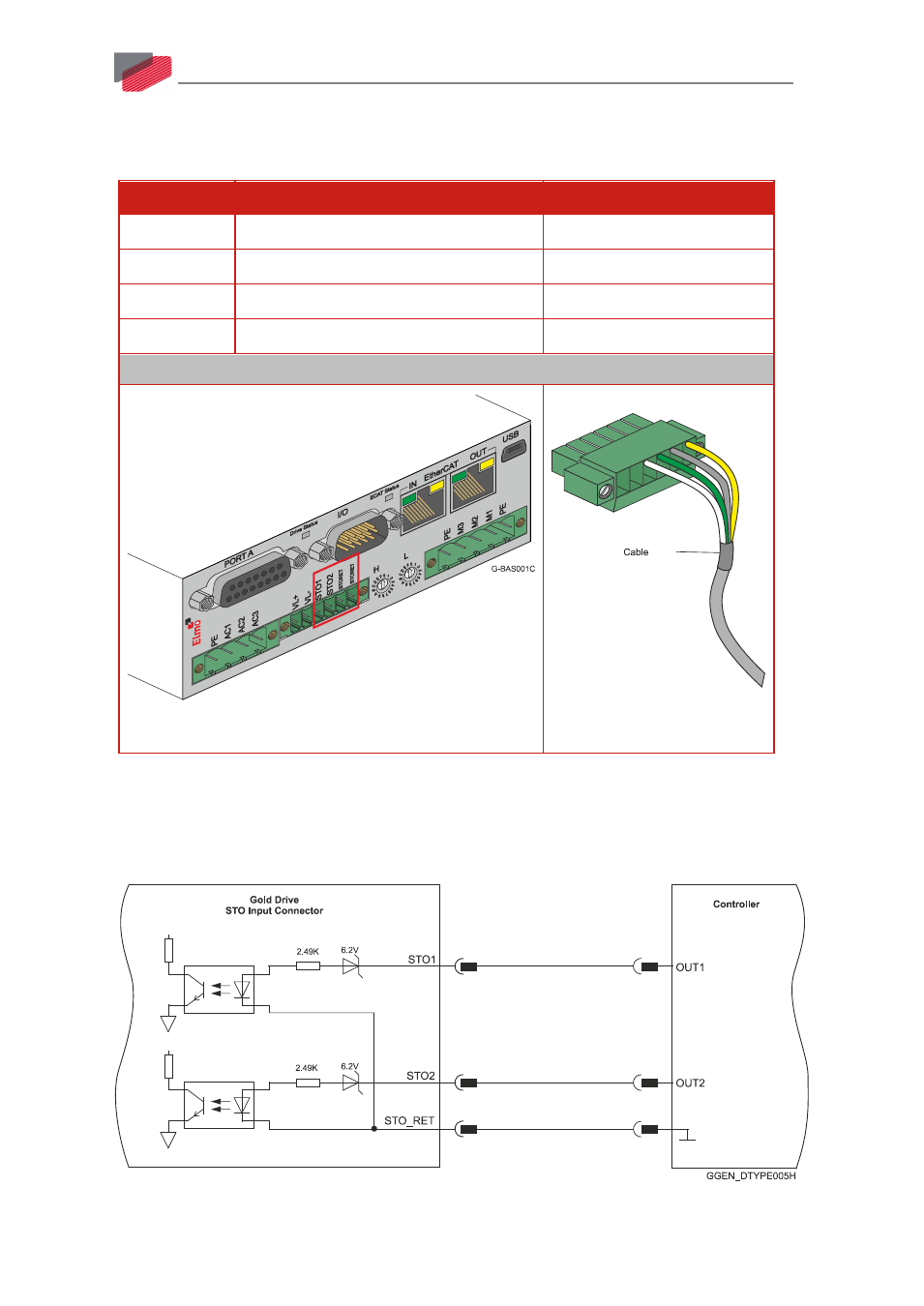

6.8 STO
See Chapter 9 in the in the MAN-G-Panel Mounted Drives Hardware manual for full details.
Pin Function Cable
STO1 STO1 Input STO cable
STO2 STO2 Input STO cable
STORET STO Return Signal STO cable
STORET STO Return Signal STO cable
Pin Positions
4/6-Pin Pluggable 3.5 mm Screw Flange Connector
Table 7: STO Pin Assignments
The following circuits describe the STO wiring options.
6.8.1 Source Mode PLC Voltage Level
Figure 25: STO Input Connection – PLC Source Option
