6.11.4. EtherCAT Link Indicators
The Gold Cello can serve as an EtherCAT slave device. For this purpose it has two RJ-45 connectors,
which are designated as EtherCAT In and EtherCAT Out. Each of these RJ-45 connectors has two
status LEDs, which are shown in Figure 35.

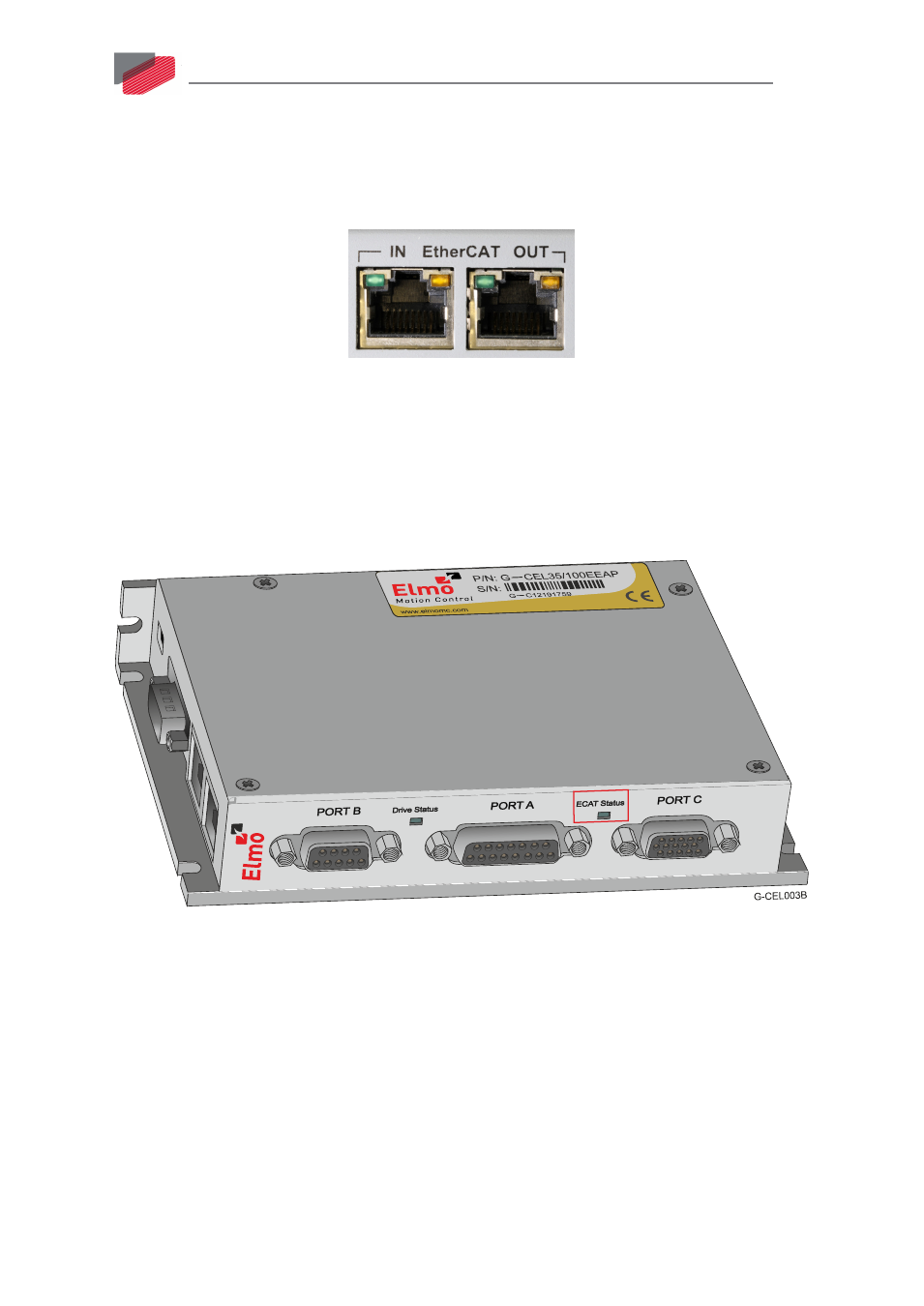

Figure 35: Ethernet Connector LEDs
The green LED is the link/activity indicator. It shows the state of the applicable physical link and the
activity on that link. The amber LED is the speed indicator. It shows the speed of the connection on
the Ethernet line. Refer to the section 12.2.1.2 in the document; MAN-G-Panel Mounted Drives
Hardware manual.
6.11.5. EtherCAT Status Indicator
Figure 36: EtherCAT Status LED
The EtherCAT status indicator is a red/green dual LED. It combines run indication (when it is green)
and error indication (when it is red) of the EtherCAT device. For further details, see the EtherCAT
Manual.
