Gold Cello Installation Guide
MAN-G-CELIG (Ver. 1.201)
||Auxiliary Power (J10)(optional)| www.elmomc.com
27
Table of Contents

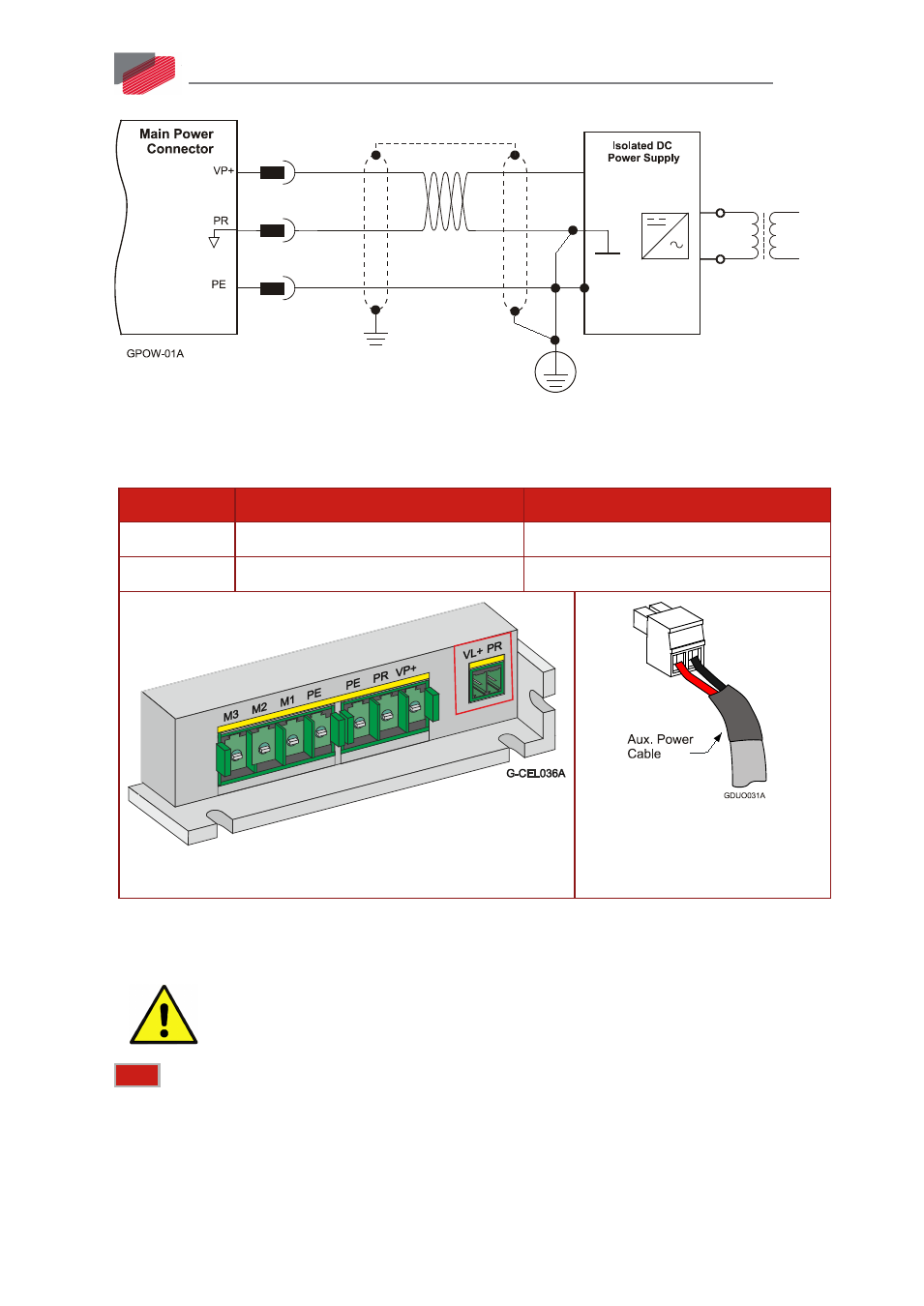

Figure 11: Main Power Supply Connection Diagram (no Auxiliary Supply)
6.4. Auxiliary Power (J10)(optional)
Signal (J10) Function Cable
VL+ Auxiliary Supply Input DC Power
PR Auxiliary Supply Return DC Power
2-Pin Phoenix 3.81 mm Pitch
2-Pin Phoenix Plug-in Connector
Table 6: Aux. Power Connector – Pin Assignments
Caution: Power from the Gold Cello to the motor must come from the Main
Supply and not from the Auxiliary Supply.
Note: The source of the Auxiliary Supply must be isolated.
Connect the VL and PR pins on the Gold Cello in the manner described below.
Power to the Auxiliary Supply can be provided by a separate Auxiliary Supply.
