SPECIFICATIONS
INPUT VOLTAGE—
24 vdc nominal, 18 to 30 vdc. 10% overvoltage will not
cause damage to the equipment.
POWER REQUIREMENTS—
9 watts nominal, 12 watts maximum.
I/O PORTS—
The Controller provides two electrically isolated serial
ports, which can be active simultaneously.
Port 1 is a RS-232 port used for system configuration.
Port 2 is a RS-485 port that supports MODBUS RTU
protocol.
An optional dual media ControlNet board is available.
This provides a ControlNet interface, which enables
users to monitor status information as well as configure
various controller parameters.
Two 78.5 kb LON/SLC ports provide the start and end of
the communication loop for the detection devices. The
wiring is transformer coupled for enhanced EMI immuni-
ty. The LON/SLC is monitored for ground faults.
UNSUPERVISED OUTPUTS (8 Relays)—
Dry Contact Rating: 1 ampere at 30 vdc maximum.
SPDT normally open/normally closed contact, config-
urable for normally energized or de-energized (de-ener-
gized is the default mode).
TROUBLE OUTPUT—
SPDT normally open/normally closed contact.
Non-configurable, normally energized only.
RELAY RESPONSE TIME—
Output relays actuate in <0.1 second after acknowledg-
ing an alarm command message.
UNSUPERVISED DIGITAL INPUTS (8 Channels)—
Two state input (on/off).
TEMPERATURE RANGE—
Operating: –40°F to +185°F (–40°C to +85°C).
Storage:
–40°F to +185°F (–40°C to +85°C).
Excluding communication port optional modules.
HUMIDITY RANGE—
0 to 95% RH, non-condensing.
MOUNTING—
DIN rail or panel mount specified at the time of order.
VIBRATION—
Meets FM 3260, ANSI/ISA 12.13.01, CSA C22.2 #152,
EN61779-1.
CERTIFICATION—
FM / CSA:
Class I, Div. 2, Groups A, B, C, D (T4).
Class I, Zone 2, Group IIC (T4).
Performance verified.
CENELEC/CE: ATEX/EMC Directive Compliant.
Performance verified per EN 61779-4.
0539 II 3 G
EEx nC IIC T4
DEMKO 02 ATEX 133867U
T4 (Tamb = –40°C to +85°C).
Special conditions for safe use:
The device shall be installed in an enclosure that com-
plies with all relevant requirements of EN 50021: 1999,
and provides a degree of ingress protection of at least
IP54. The device may only be installed, connected or
removed when the area is known to be non-hazardous.
SHIPPING WEIGHT (Approximate)—
2 pounds (0.9 kilograms).
DIMENSIONS—
See Figure 1.
EAGLE QUANTUM PREMIER
Safety System Controller
Fire Alarm Inhibit Power Supervisory
High Gas Trouble Cntrl Flt Lon Fault
Low Gas Acknowledge Silence Output Inhibit
Time & Date
16:38:55
JAN 11/2002
Cancel Enter Next Previous Reset Acknowledge Silence
10.75
(27.3)
7.0
(17.78)
5.5
(13.9)
5.95
(15.1)
D2103
EAGLE QUANTUM PREMIER
Safety System Controller
Fire Alarm Inhibit Power Supervisory
High Gas Trouble Cntrl Flt Lon Fault
Low Gas Acknowledge Silence Output Inhibit
Time & Date
16:38:55
JAN 11/2002
Cancel Enter Next Previous Reset Acknowledge Silence
10.75
(27.3)
2.53
(6.4)
5.25
(13.3)
PANEL MOUNTING DIMENSIONS DIN RAIL MOUNTING DIMENSIONS
2.4
(6.1)
DET - TRONICS ® DET - TRONICS ®

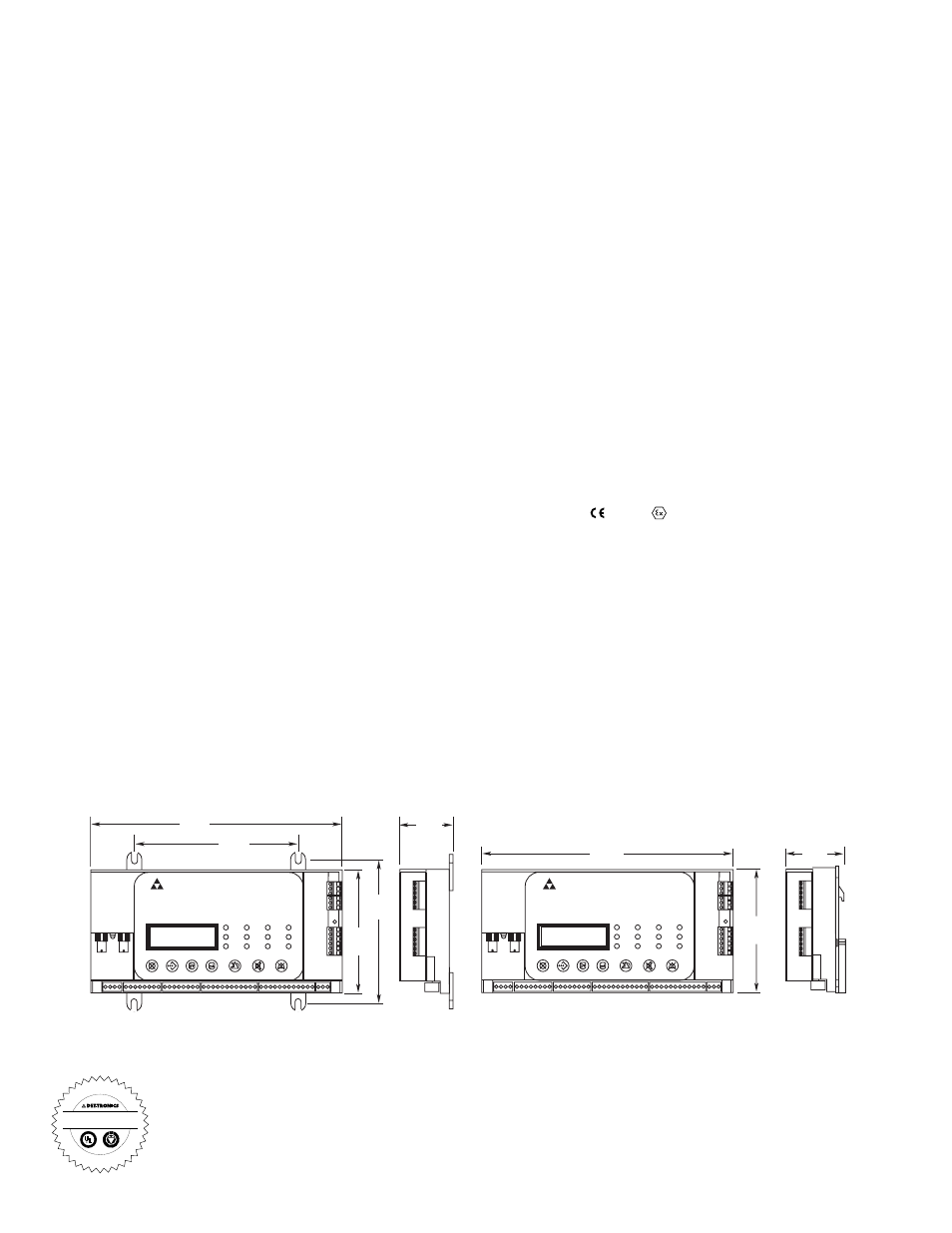

Figure 1—Dimensions of Controller in Inches (Centimeters)
