Det-Tronics U5005 Smoke Detector - Manual (Page 4)

MAINTENANCE
Regularly scheduled maintenance is normally not
needed, however, periodic cleaning of the smoke
chamber may be necessary when detectors are located
in abnormally dirty or dusty environments. Vacuuming
around the smoke chamber housing prior to blowing out
the chamber with a “dry air” hose is recommended.
NOTE
The U5005 is not designed to be serviced or
repaired in the field. Disassembly of the detector
in the field will void the warranty. If service or
repairs are required, return the entire unit to the
factory.
The smoke detector can be tested using the same
methods employed for any photo-electric detector.
We recommend using canned smoke for periodic
maintenance of the detector.
DEVICE REPAIR AND RETURN
Prior to returning devices or components, contact
Detector Electronics so that a Service Order number
can be assigned. A written statement describing the
malfunction must accompany the returned device or
component to expedite finding the cause of the failure.
Return all equipment transportation prepaid to the
factory in Minneapolis.
1
2
3
4
5
AUXILIARY ALARM CONTACTS
+
–
C
NO
NC
TB – 2
TB – 3
POWER
2 WIRE
CLASS B
RECEIVING ZONE
CHASSIS
GROUND
LISTED CONTROL PANEL
+
–
EOL DEVICE
SUPPLIED BY
PANEL MANUFACTURER
ADD JUMPER
GROUND STUD B1193
6
7
8
9
10

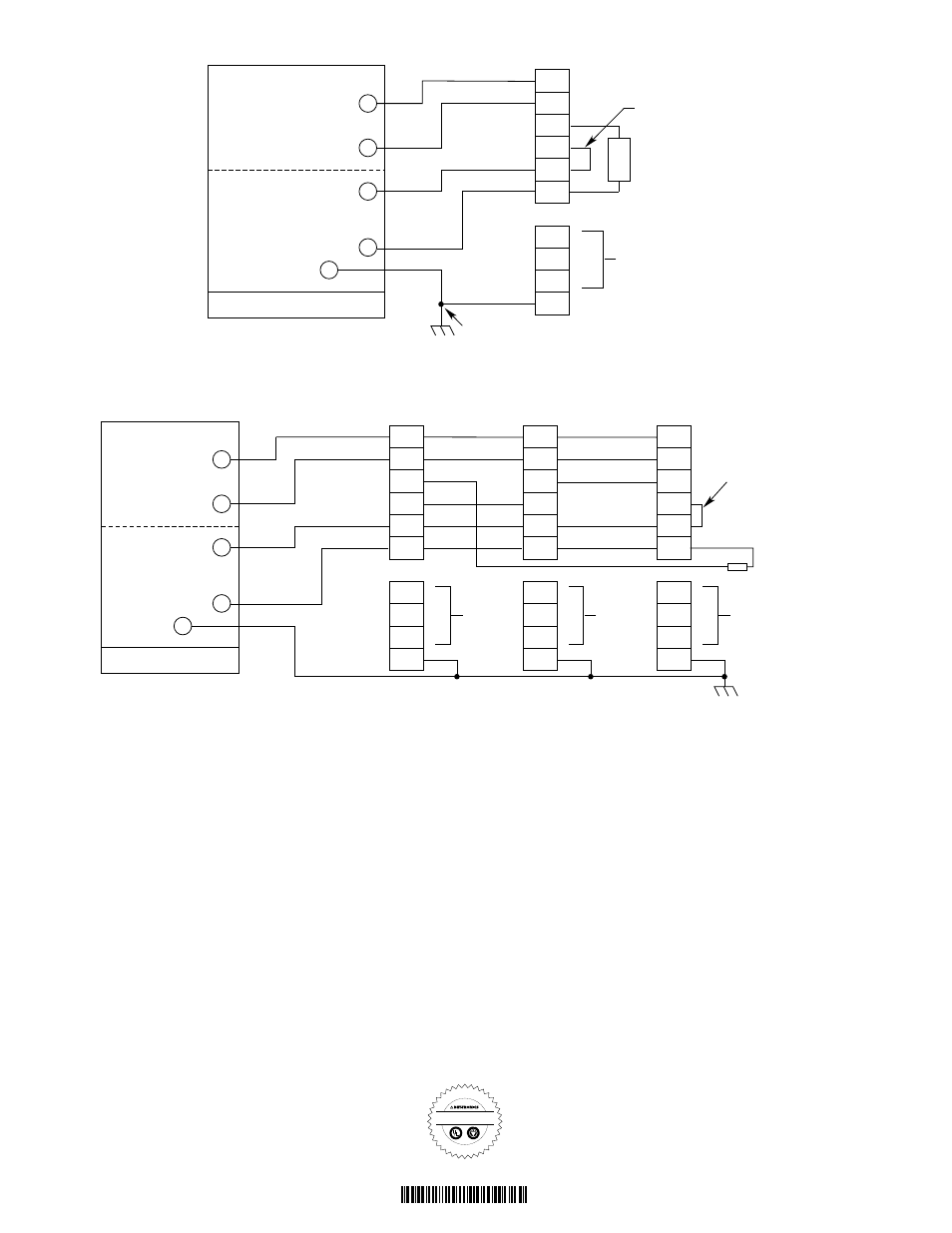

Figure 4—Single Detector wiring
Figure 5—Multiple Detector wiring
FIRST DETECTOR IN LOOP
TB – 2
LAST DETECTOR IN LOOP
TB – 2
TB – 3
POWER
2 WIRE
CLASS B
RECEIVING ZONE
CHASSIS
GROUND
LISTED CONTROL PANEL
+
–
AUXILIARY
ALARM
CONTACTS
C
NO
NC
AUXILIARY
ALARM
CONTACTS
C
NO
NC
AUXILIARY
ALARM
CONTACTS
C
NO
NC
TB – 2
TB – 3
1
2
3
4
5
TB – 3
EOL DEVICE
SUPPLIED BY
PANEL MANUFACTURER
INSTALL JUMPER
C1696
1
2
3
4
5
1
2
3
4
5
6 6 6
7 7 7
8 8 8
9 9 9
10 10 10
Detector Electronics Corporation
6901 West 110th Street • Minneapolis, Minnesota 55438 USA
Operator: (952) 941-5665 or (800) 765-FIRE
Customer Service: (952) 946-6491 • Fax (952) 829-8750
http://www.det-tronics.com • E-mail: [email protected]
Specifications subject to change without notice.
Det-Tronics and the DET-TRONICS logo are registered trademarks or trademarks
of Detector Electronics Corporation in the United States, other countries, or both.
Other company, product, or service names may be trademarks or service marks
of others.
©Copyright Detector Electronics Corporation 2010. All rights reserved.
R
EG
IST
ERE D BY UL AN
D B
SI
NO
. A2305 • NO. 2582 6
ISO 9001
RE GIS TERED FIRM
R EG IS TERED FIR M
95-8452
