specifications
SENSOR AND TRANSMITTER
AVAILABLE SENSORS—
Refer to Appendix A.
CROSS SENSITIVITY—
See Appendix A for Cross Sensitivity information.
CALIBRATION—
Sensors are calibrated at the factory. Gas type and
range are read by the transmitter. Field calibration is
initiated at the detector, at the UD10/UD20 Universal
Display Unit, or by some other HART interface device.
OPERATING VOLTAGE—
24 volts dc nominal. (12 Vdc minimum, 30 Vdc maximum).
Maximum ripple is 2 volts peak-to-peak.
If using the HART function, the installation must comply
with the HART power standard.
POWER CONSUMPTION—
0.8 watt maximum @ 30 Vdc.
CURRENT OUTPUT—
• 4-20 mA (Normal operating mode).
• 3.8 mA indicates calibrate mode.
• 3.5 mA or less indicates a fault condition.
MAXIMUM LOOP RESISTANCE—
300 ohms at 18 Vdc, 600 ohms at 24 Vdc.
WIRING—
The transmitter has flying leads, 20” long, 600V insulation.
Colors: Red = V+
Black = V–
Green = earth ground
Gauge: 22 AWG (red and black)
16 AWG (green).
WARM-UP—
Warm-up time can last up to 150 seconds.
OPERATING TEMPERATURE—
See Appendix A.
STORAGE TEMPERATURE—
Transmitter: –55°C to +75°C (–67°F to +167°F)
Sensor:
0°C to +20°C (+32°F to +68°F).
Ideal: +4°C to +10°C (+39°F to +50°F).
HUMIDITY RANGE—
15 to 90% RH.
PRESSURE RANGE—
Atmospheric ±10%.
INGRESS PROTECTION—
IP66.
ELECTRO-MAGNETIC COMPATIBILITY—
EMC Directive 2004/108/EC
EN55011 (Emissions)
EN50270 (Immunity).
THREAD OPTIONS—
3/4" NPT or M25.
ENCLOSURE MATERIAL—
GTX Transmitter:
316 Stainless Steel
GTS Sensor Module: PPA (30% carbon filled).
DIMENSIONS—
See Figure 4.
WARRANTY—(For the GTX and GTS)
12 months from date of installation or 18 months from
date of shipment, whichever occurs first.
CERTIFICATIONS—
Explosion Proof Model
FM/CSA:
Class I, Div. 1, Groups A, B, C & D (T4).
Class I, Div. 2, Groups A, B, C & D (T4).
Class I, Zone 1, AEx d mb [ia Ga] IIC T4.
IP66.
Conduit seal not required.
Acidic atmospheres excluded.
ATEX:
0539
FM
APPROVED
®
II 2(1)G.
Ex d mb [ia Ga] IIC T4 Gb IP66.
FM10ATEX0009X.
IECEx:
Ex d mb [ia Ga] IIC T4 Gb IP66.
IECEx FMG 10.0003X.

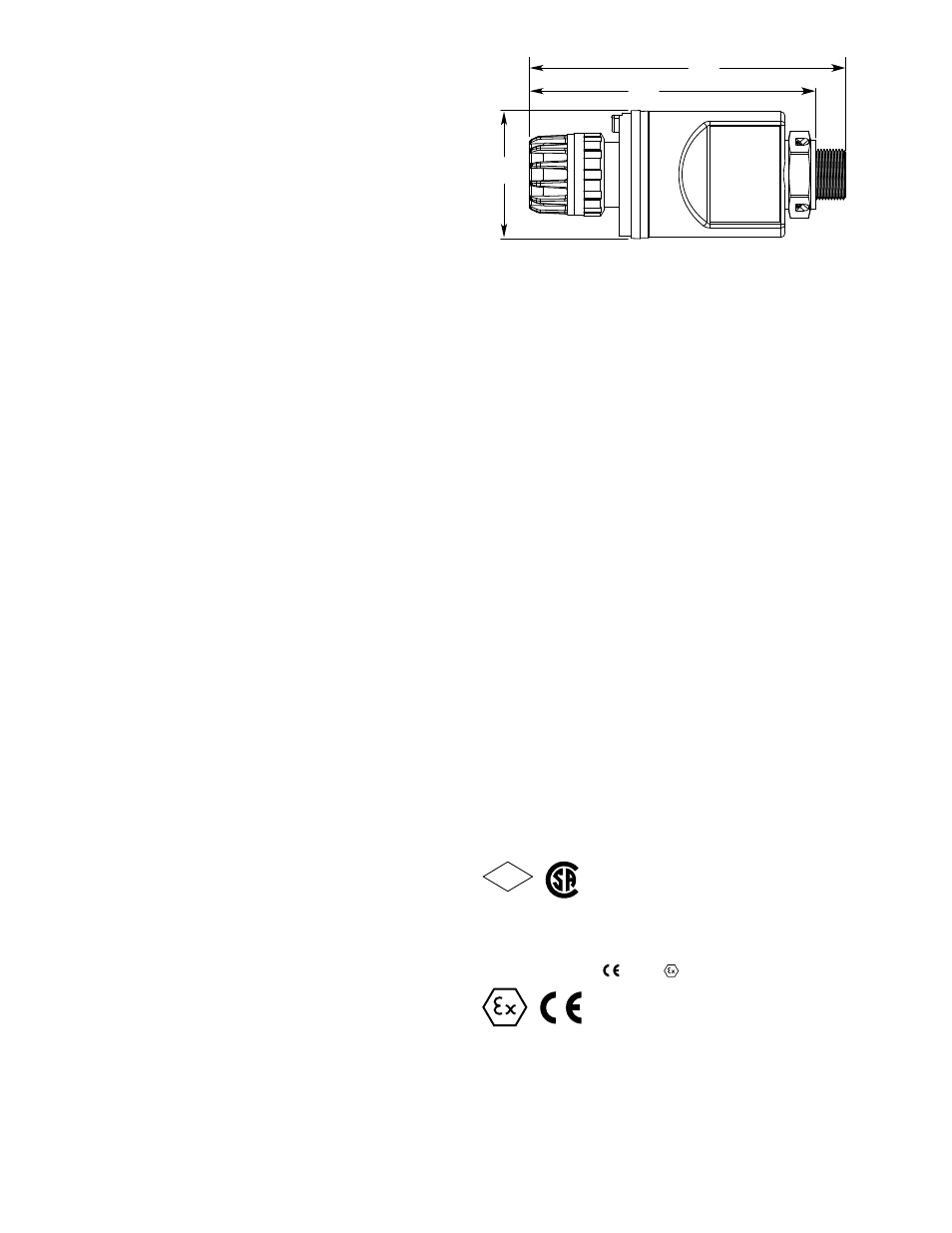

Figure 4—Dimensions of GT3000 Gas Detector in Inches (CM)
2.5
(6.4)
6.2
(15.8)
5.6
(14.3)
B2397
