chiliGREEN P4VTB - Manual (Page 14)

11

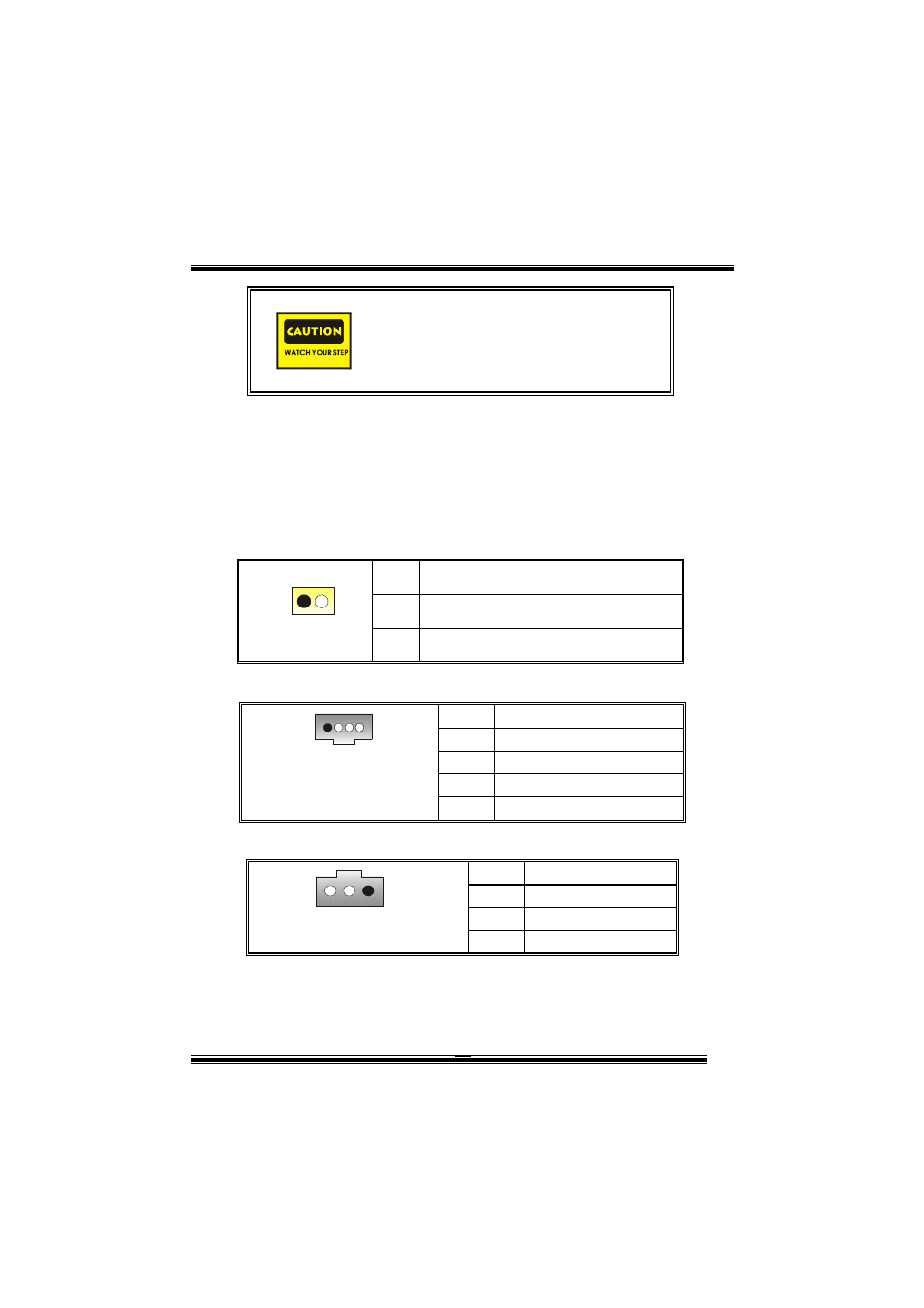

※ Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 2-3 close”.
3. Wait for five seconds.
4. Set the jumper to “Pin 1-2 close”.
5. Power on AC.
6. Reset your desired password or clear the CMOS data.
(16) Case Open Connector: JC1
Pin
Assignment
1
Case Open Signal
1
JC1
2
Ground
(17) CD-ROM Audio-In Header: JCDIN1/ (JCDIN2→ → → →optional)
Pin Assignment
1 Left Channel Input
2 Ground
3 Ground
1
JCDIN1/ 2
4 Right Channel Input
(18) Digital Audio Connector: JSPDIF1
Pin Assignment
1 +5V
2 SPDIF_OUT
1
J_SPDIF1
3 Ground
The following procedures are for resetting the
BIOS password. It is important to follow these
instructions closely.
