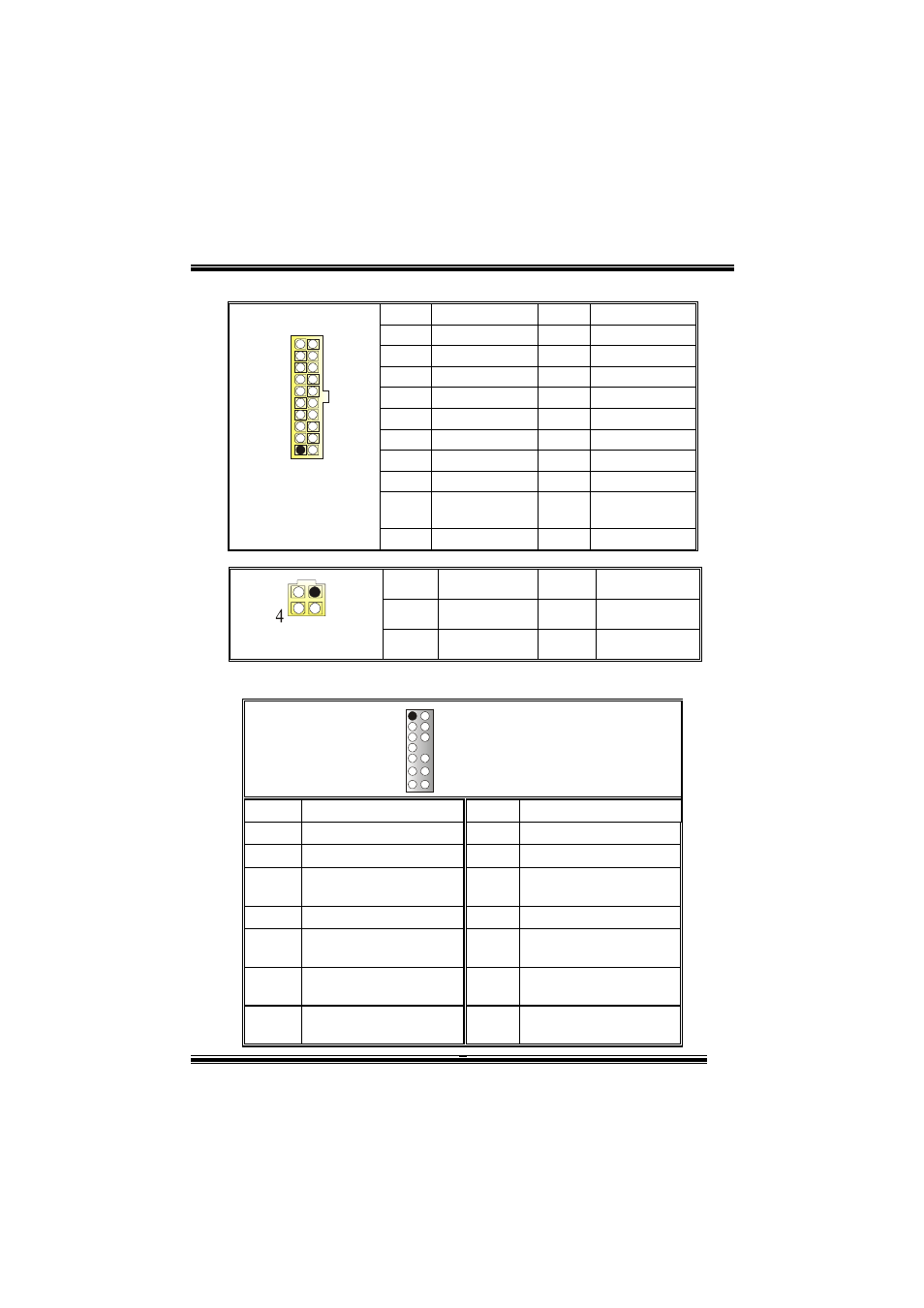

(11) Power Connectors: JATXPWR1
PIN Assignment PIN Assignment
1 +3.3V 11 +3.3V
2 +3.3V 12 -12V
3 Ground 13 Ground
4 +5V 14 PS_ON
5 Ground 15 Ground
6 +5V 16 Ground
7 Ground 17 Ground
8 PW_OK 18 -5V
9 Standby Voltage
+5V
19 +5V
20
11
10
1
JATXPWR1
10 +12V 20 +5V
PIN Assignment PIN Assignment
1 +12V 3 Ground
1 2
3
JATXPWR2
2 +12V 4 Ground
(12) Front Panel Audio Header: JAUDIO1
1 2
13 14 JAUDIO1
Pin Assignment Pin Assignment
1 Mic In/ Center 2 Ground
3 Mic Power/ Bass 4 Audio Power
5 Right Line Out/ Speaker
Out Right
6 Right Line Out/ Speaker
Out Right
7 Reserved 8 Key
9 Left Line Out/ Speaker
Out Left
10 Left Line Out/ Speaker
Out Left
11 Right Line In/ Rear
Speaker Right
12 Right Line In/ Rear
Speaker Right
13 Left Line In/ Rear Speaker
Left
14 Left Line In/ Rear Speaker
Left
