2 Basic Operation

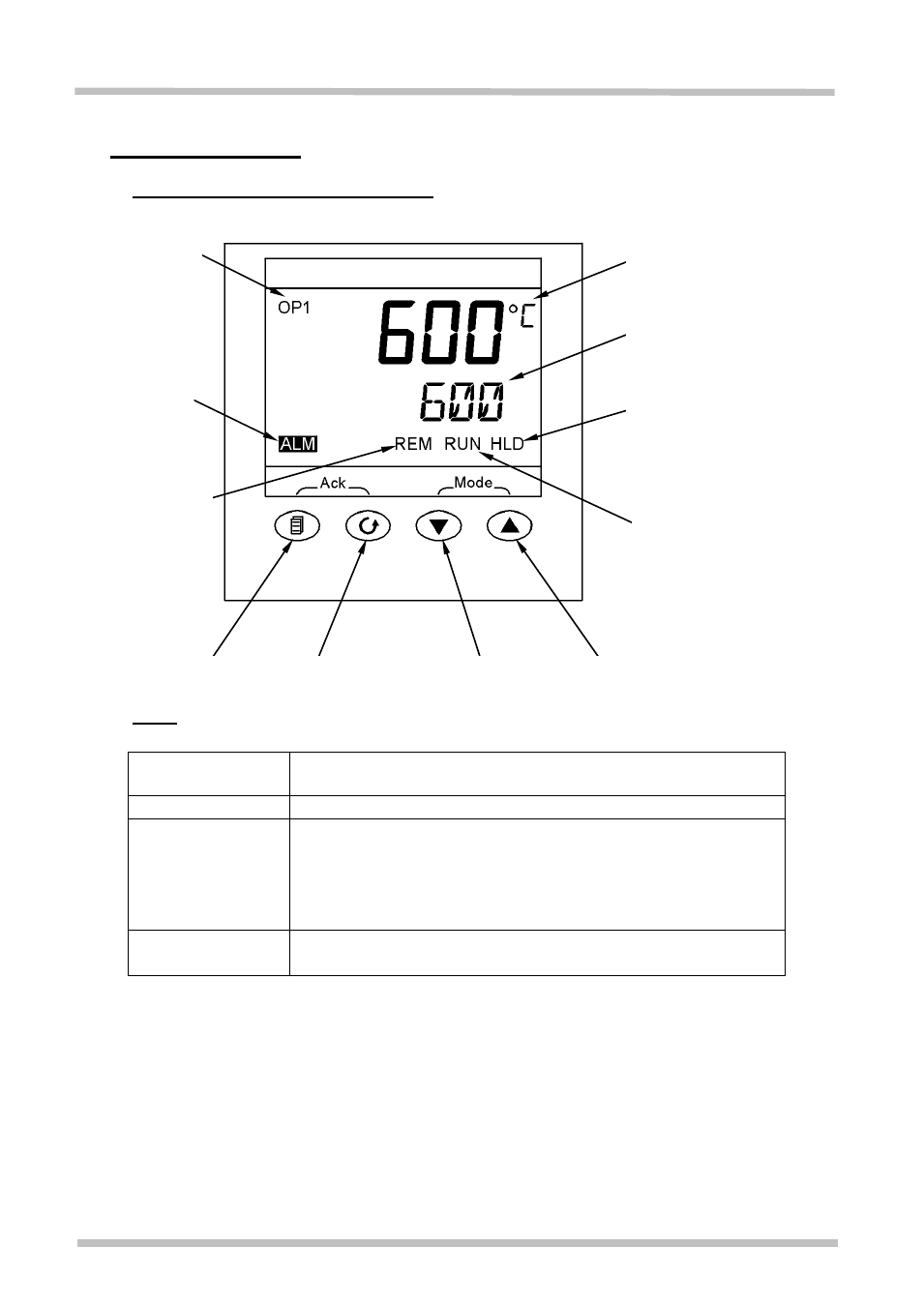

2.1 Controller Layout (Home Display)
2.2 Keys
Page Key

The Page key is used to access level 2 when held down
for 3 seconds.
Scroll Key

The Scroll key is used to scroll through the parameters.
ACK
Page + Scroll

When pressed simultaneously the ACK function is used
to:

Return to the Home Menu.

Acknowledge timer end.

Acknowledge an alarm if activated.
Arrow Keys

The arrow keys are used individually to adjust the
selected parameters and in combination to run a program
Note:
If a parameter is selected and no further action is taken, the display will time out and
revert back to the home display in its working level after approximately 1 minute
Power Output
Indicator
Scroll Key Down Key Up Key
Alarm
Indicator
Hold Indicator
Setpoint
Temperature
Measured
Temperature
Run Indicator
Remote
Indicator
(When configured)
Scroll Key Page Key
