4. Digital Meter (Dual & Six Fold)

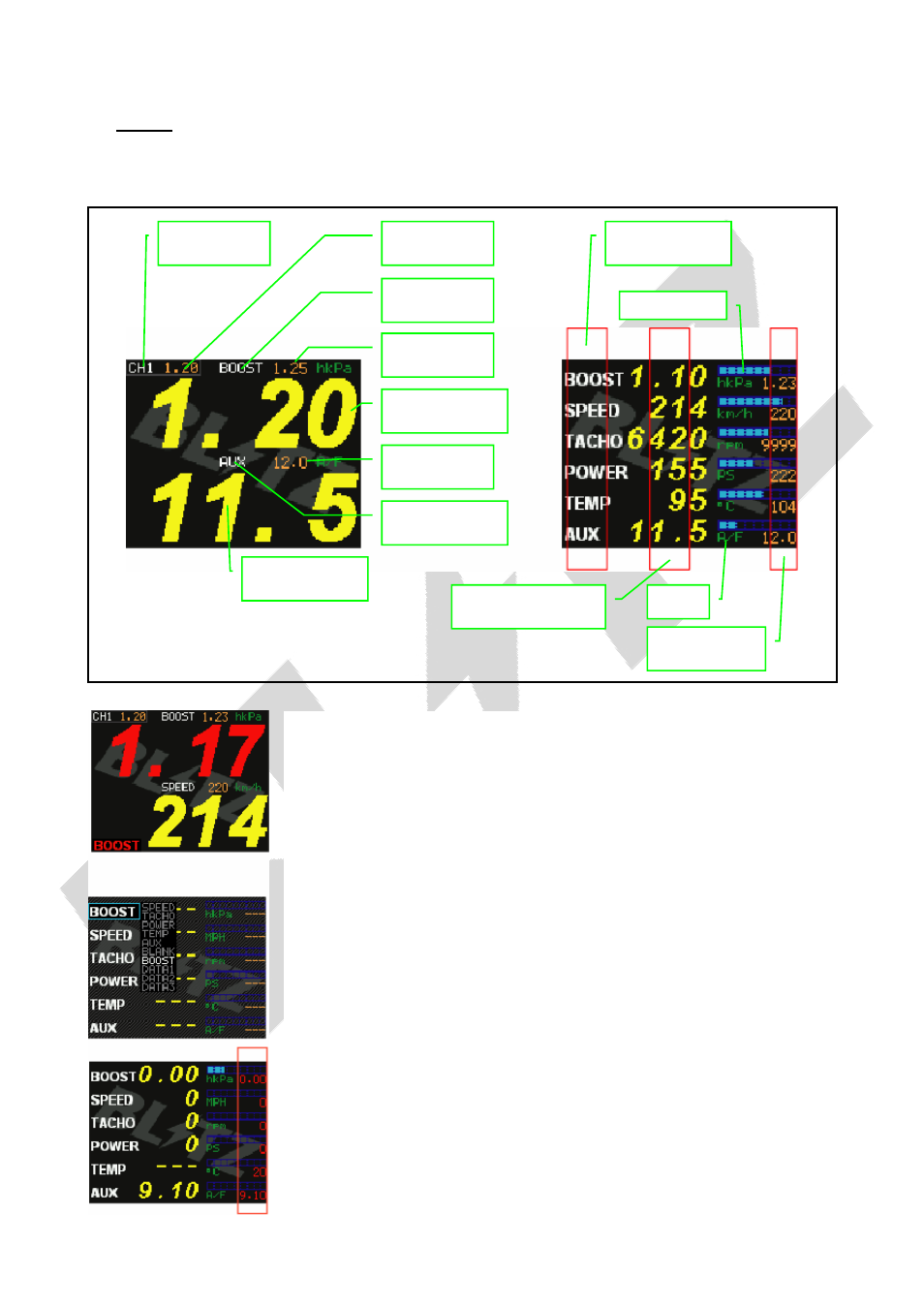

Displays in digital and bar graph the selected data sources. The types of display are Dual
and Six Fold and the boost settings can be easily changed at the Dual display.

Controlled

Channel

Second item

Peak Value

Data source of

the Second Item

Present value of

the Second Item

Source of

displayed Items

Data source of

the First Item

Controlled

Value

First item

Peak Value

Present value of

the first Item

Bar Graph

Displayed Item

Peak Value

Unit

Present values of

displayed data

All the digital values are processed to keep displaying for 0.6 seconds and the bar graphs
are processed to display in real time.
The digital value will also change when the Peak value is changed. Moreover, the color at
the digit will change when the warning value is reached.
The Peak value will be displayed as a warning color for 3 seconds when the Peak value is
updated.

Selection method of the screen

A selection border will pop up by pressing the encoder switch. Choose the item wanting
to make changes by rotating the encoder and confirm by pressing it. Then it will shift to
a selection screen with a list of items to choose from.
The changes will be canceled and it will go back to the selection screen by pressing the
RIGHT switch or it will return to the digital display screen without making any changes
if no operation is performed for 10 seconds.

It will shift from day and night lighting by pressing the LEFT switch for a short moment.
(This operation is the same on every screen)
Press the LEFT switch for over 3 seconds and it will only clear the peak value of the
displayed data.
It will go back up one MENU by pressing the RIGHT switch.

Press UP to switch the screens from Meter screen → Boost Set up → Dual digital
screen → Six fold digital screen → Result screen → Chassis dynamo screen → A/F
graph screen → Boot graph screen → MAP screen → Speed MAP screen (The screen
will shift to the other direction by keeping pressing the UP switch)
(The boost setup, boost graph and MAP screen will not be displayed if it is not connected
to the CPU unit)
