Page 25

Boost control functions will not be displayed if used as MMD i-Color. (Only 4 items)

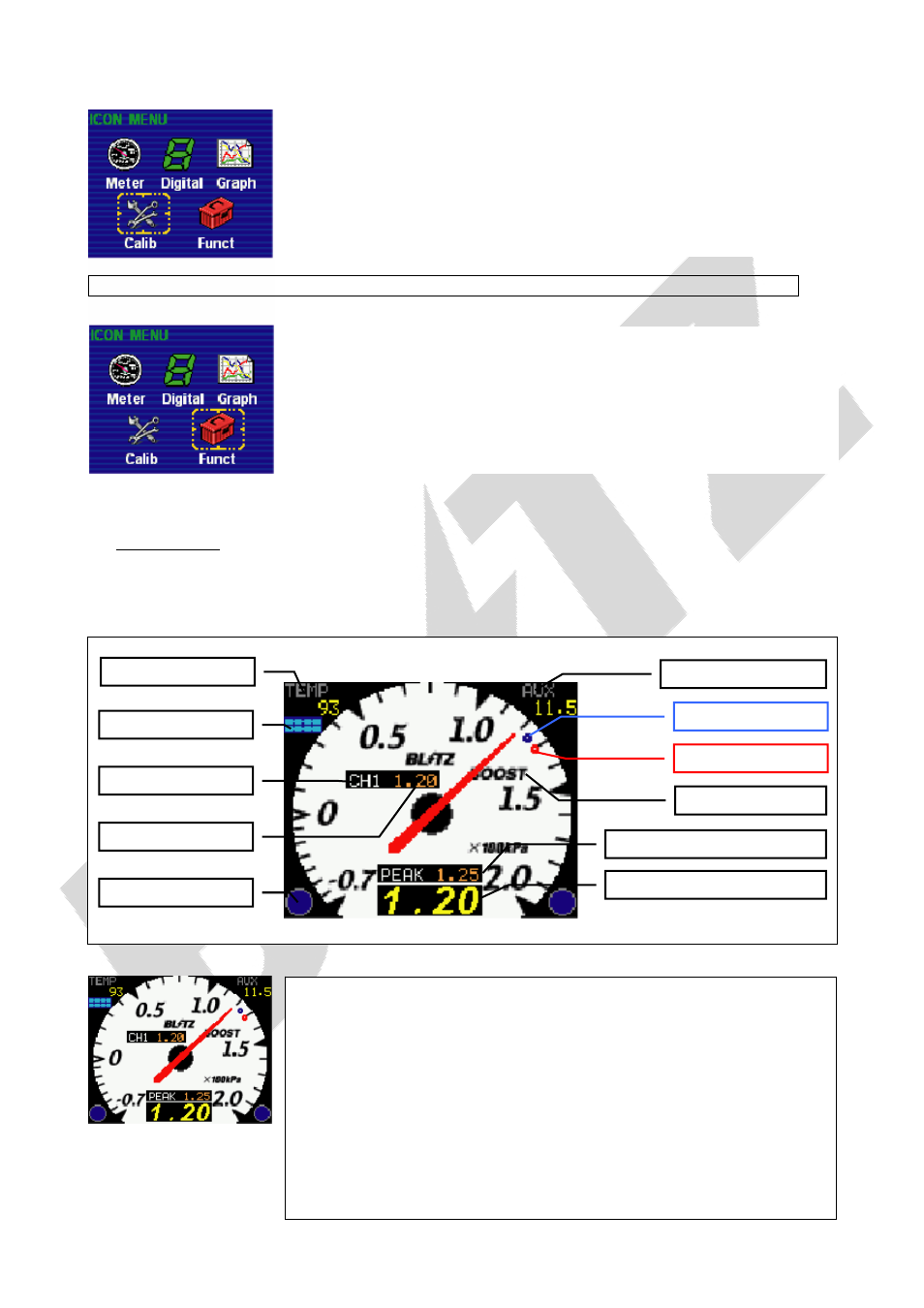

4. Calib Icon

A mode to input the initial adjustable values on six items. Functions will not work
properly if it is not set up after initial power up of the SBC or MMD.

・

SPEED

・

VOLTAGE

・

TACHO

・

BOOST SET UP

・

POWER

・

BOOST MAP

5. Funct Icon

A total of 24 detailed settings can be set here. For example, display direction,
warning, unit change, font color, etc are customized.

3. Needle Meter

It simultaneously displays 4 different sources of data on an analog type meter screen. (The
design of the meter’s face can be chosen from white, black, carbon and blue)
It can also easily jump to the SBC setting by a shortcut.

Main displaying data

Warning Mark (Red)

Fourth displaying data

Third displaying data

Second displaying data

Peak Mark (Blue)

Valve operation ratio

Controlling CH

Controlling value

Warning

Source of second displaying

Press the LEFT switch to shift from night and day illumination and vice versa.

Press the LEFT switch for over 3 seconds and it will only clear the peak value of the
displayed data.

Press UP to switch the screens from Meter screen → Boost Set up → Dual digital
screen → Six fold digital screen → Result screen → Chassis dynamo screen → A/F
graph screen → Boot graph screen → MAP screen → Speed MAP screen (The screen
will shift to the other direction by keeping pressing the UP switch)
(The boost setup, boost graph and MAP screen will not be displayed if it is not connected
to the CPU unit)
Press the DOWN switch to change the meters from Boost pressure → Speed → RPM →
Horse Power → Temp → A/F → Fuel Press → Oil Press.
(The boost pressure will not be displayed if it is not connected to the CPU unit)
