External wastegate type

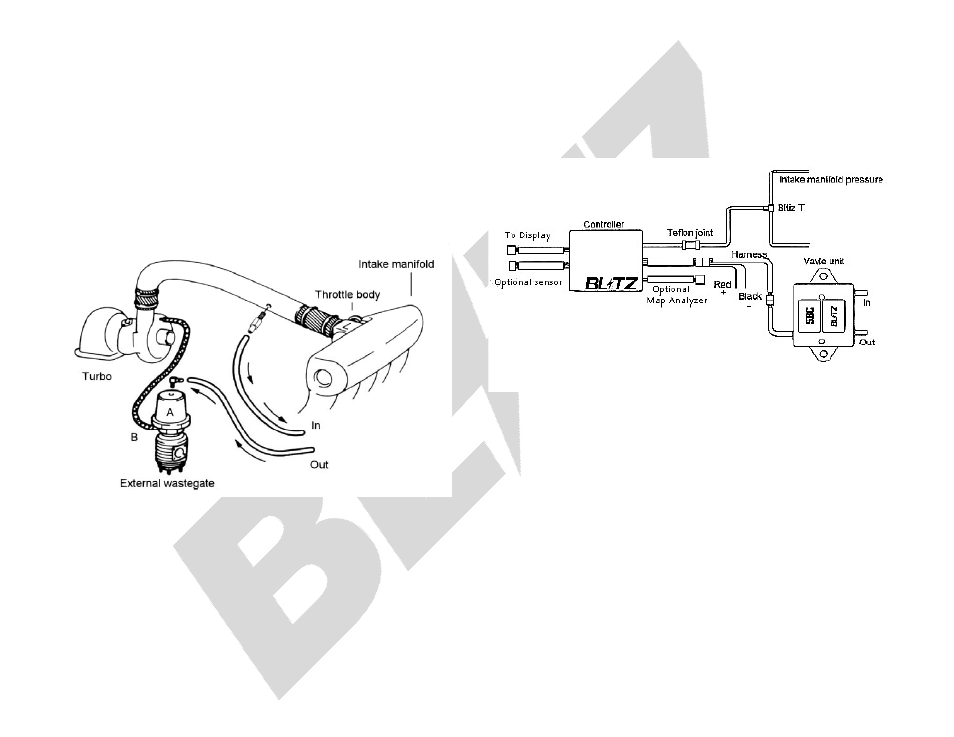

Installation of the controller

Th i

t f th S l

it i t

d f

b f

The in port of the Solenoid unit is taped from pressure before
throttle body. Use supplied hose clamps to prevent pressure leak.

Valve unit Out port connects to top port of external wastegate ( A ).

Connect compressor port to bottom port of external wastegate ( B ).

Red ( + ) positive wire from harness connects to 12 v ignition on.

Black ( - ) negative wire from harness goes to ground

Connect main harness to controller coupler

* Connect main harness to controller coupler.

Connect the other end of the harness to valve unit.

Use Teflon hose and connect to pressure port in controller to
after the throttle body, on the intake manifold. Use the crescent
clamp to hold the Teflon hose to the pressure port of the controller
and the Blitz T.

The 3-wire coupler is not to be used in basic installation. It is for
Map Analyzer unit.

IMPORTANT: Compressor pressure must be between turbo and

The optional sensor harness allows the user to tap into the vehilces

the throttle body.

electronic monitoring systems.

CAUTION: make sure the Teflon hose is not crimped or squeezed.
