Sixfold Monitor Display Mode.

1. To display the SIXFOLD MONITOR DISPLAY MODE, select and enter [SIXFOLD MONITOR]

by scrolling up or down at the [MAIN MENU.]

The SIXFOLD MONITOR DISPLAY MODE is able to display six items simultaneously.

There are three ways to choose on how to display the monitoring items:

a. Present value only.
b. Bar graph only
c. Present value and peak value

Ex: 5

4. Monitoring item configuration method

z The display item configuration method is the same as the Triple Monitor. Please see

Page 15-4 for detailed explanation.

z By pressing downward it will scroll from [a. Present value only] ～ [Present value and

peak value]

and backwards.

z It will go to the prior step by pressing the left button.

[Warning] The R-VIT will go back to its prior monitoring state by keeping it for over 5 seconds without

any operation. However, the changes will take place.

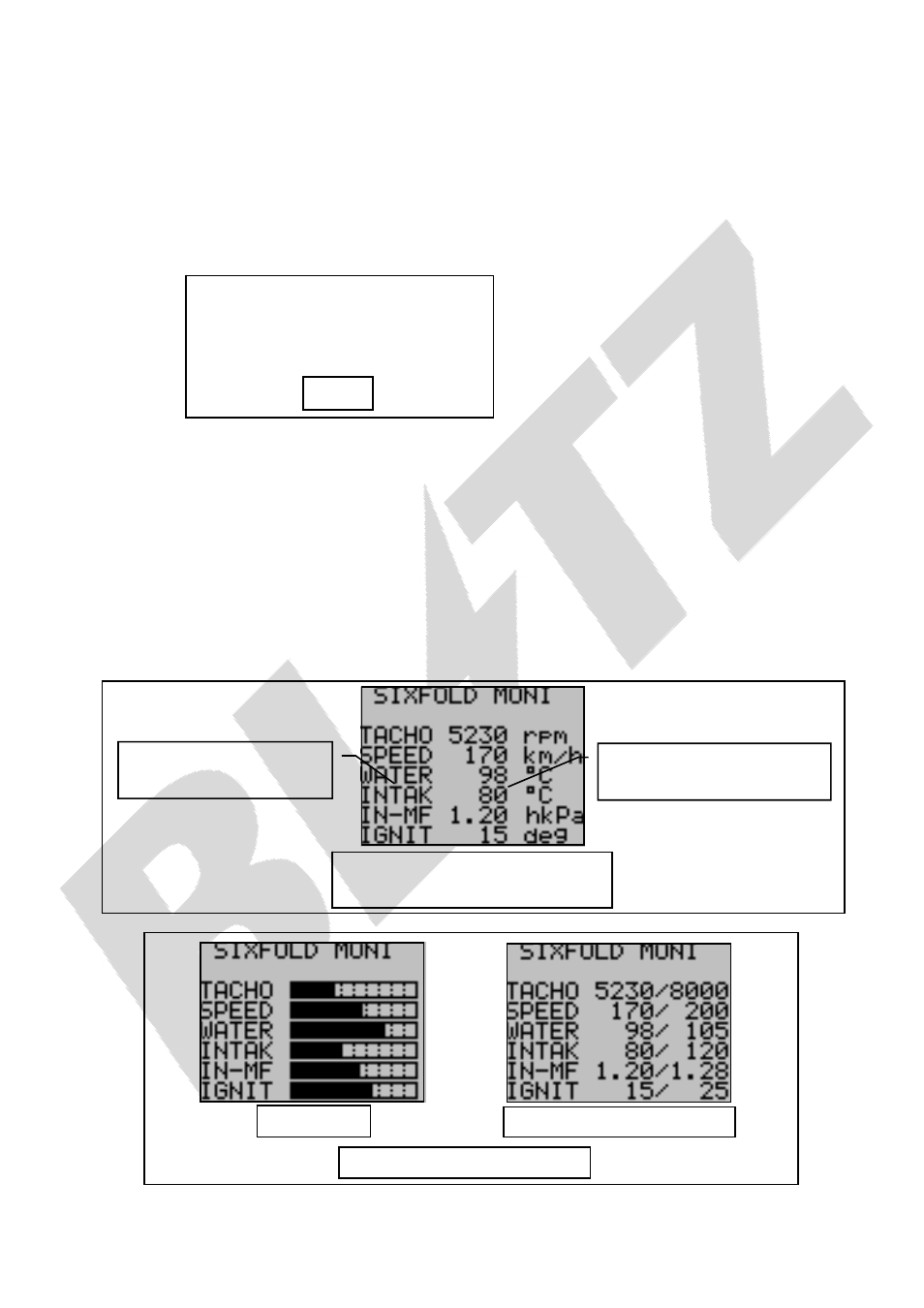

Display of Present Value Only

SIXFOLD MONI DISPLAY

First～Sixth Monitored

Items

First～Sixth item present

value.

Present Value and Peak Value

Bar Graph

SIXFOLD MONI DISPLAY
