countdown diplay mode and power itself off.

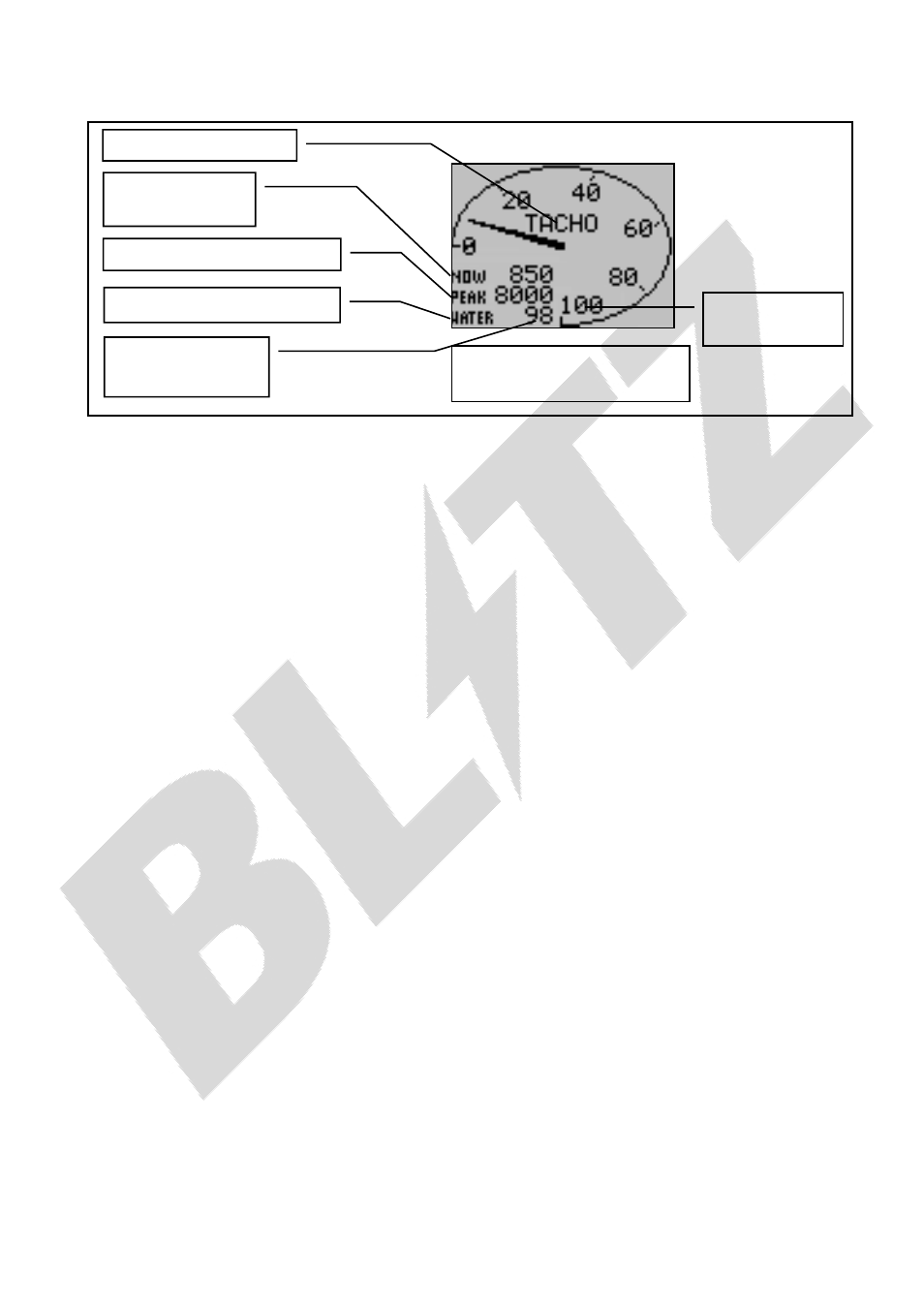

Ｎeedle Meter Display Mode.

First Monitoring item

First item

present value

First item peak value

Second Monitoring item

Second item

present value

Meter’s Scale

X100

NEEDLE METER

Ex 1:

1. To display the NEEDLE METERR DISPLAY MODE, select and enter [NEEDLE METER] by

scrolling up or down at the MAIN MENU.

2. The first monitoring item’s digital display shows the present value and the peak value. The

second monitoring Item’s digital display shows the preset value and it also can be concealed.

3. The NEDDLE METER DISPLAY MODE displays the first monitoring item’s value.

4. Monitoring item configuration method

z Press the ENTER button and it will select on the first monitoring item (Ex 1: TACHO).

Scroll Up or Down to select the desired monitoring item, then press ENTER to confirm.

z By pressing downward it will scroll from [

①Vehicle speed] to [⑱４ＷＤ %] and

backwards.

z After setting the first monitoring item, it will automatically go to setup the second

monitoring item. (Ex 1: WATER)

z Scroll Up or Down to select the desired second monitoring item, then press ENTER to

confirm.

※ By pressing downward it will scroll from [

①Vehicle speed] ～ [⑱４ＷＤ %] and

backwards. However,

it will be able to set the scale for the first monitored item

nly

when setting the second monitoring item.

※ While setting the second monitored item, pressing downwards will display from [①

Vehicle speed] ～ [

⑱４ＷＤ %

] → [first monitoring item scale] → [second

monitoring item BLKN] → and back again to [①Vehicle speed]

z After setting the second monitoring item, the needle meter’s max value will be selected.

z Press UP or DOWN to select the needle meter’s scale (X100); then, press ENTER to

confirm the scale.

z The NEEDLE METER DISPLAY MODE will start to monitor and display

z It will go to the prior step by pressing the left button.

[Warning] The R-VIT will go back to its prior monitoring state by keeping it for over 5 seconds without

any operation. However, the changes will take place.
