5. Operation Method. (It is the same as the Needle Meter Method)

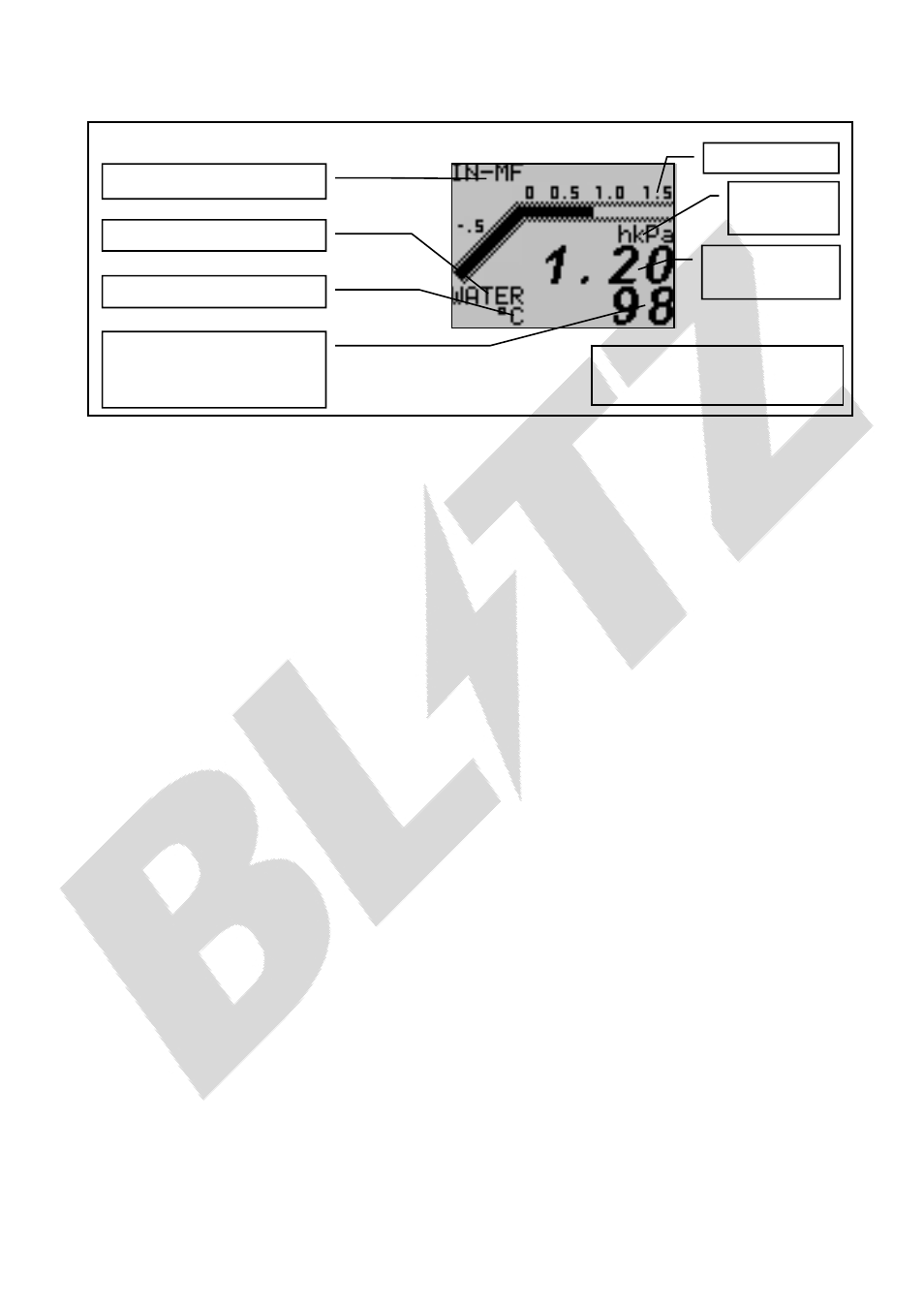

Bar Graph Display Mode.

First Monitoring item

First item

present value

1. To display the BAR GRAPH DISPLAY MODE, select and enter [BAR GRAPH] by scrolling up or

down at the MAIN MENU.

2. The center digital display shows the present value for the first monitoring item. The lower digital

display shows the present value for the second monitoring item or the peak value for the first

monitoring item and it can be also concealed

3. The ELLIPSE METER DISPLAY MODE displays the first monitoring item’s value.

4. Monitoring item configuration method

Press the ENTER button and it will select the first monitoring item (Ex 3: IN-MF).

Scroll Up or Down to select the desired monitoring item, then press ENTER to confirm.

By pressing downward it will scroll from [

①Vehicle speed] to [⑱４ＷＤ %] and

backwards.

After setting the first monitoring item, it will automatically go to set up the second

monitoring item. (Ex 3: WATER)

Scroll Up or Down to select the desired monitoring item, then press ENTER to confirm.

※ By pressing downward it will scroll from [

①Vehicle speed] to [⑱４ＷＤ %] and

backwards. However,

it will set the first monitoring item’s peak value

nly when

setting the second monitoring item.

※ While setting the second monitored item, pressing downwards will display from [①

Vehicle speed] ～ [

⑱４ＷＤ %

] → [first monitored item’ peak value] → [second

monitored item BLKN] → and back again to [①Vehicle speed]

After setting the second monitoring item, the bar graph’s max value will be selected.

Press UP or DOWN to select the bar graph’s scale (RPM = X 100); then, press ENTER to

confirm the scale.

The BAR GRAPH DISPLAY MODE will start to monitor and display

It will go to the prior step by pressing the left button.

[Warning] The R-VIT will go back to its prior monitoring state by keeping it for over 5 seconds without

any operation. However, the changes will take place.

Second item unit

Second Monitoring item

Second item present

value

Fi t it

k l

Meter’s Scale

First item

unit

BAR GRAPH

Ex 3:
