Convection Oven Component Replacement
39
1
2
3
4
5
6
8
10
9

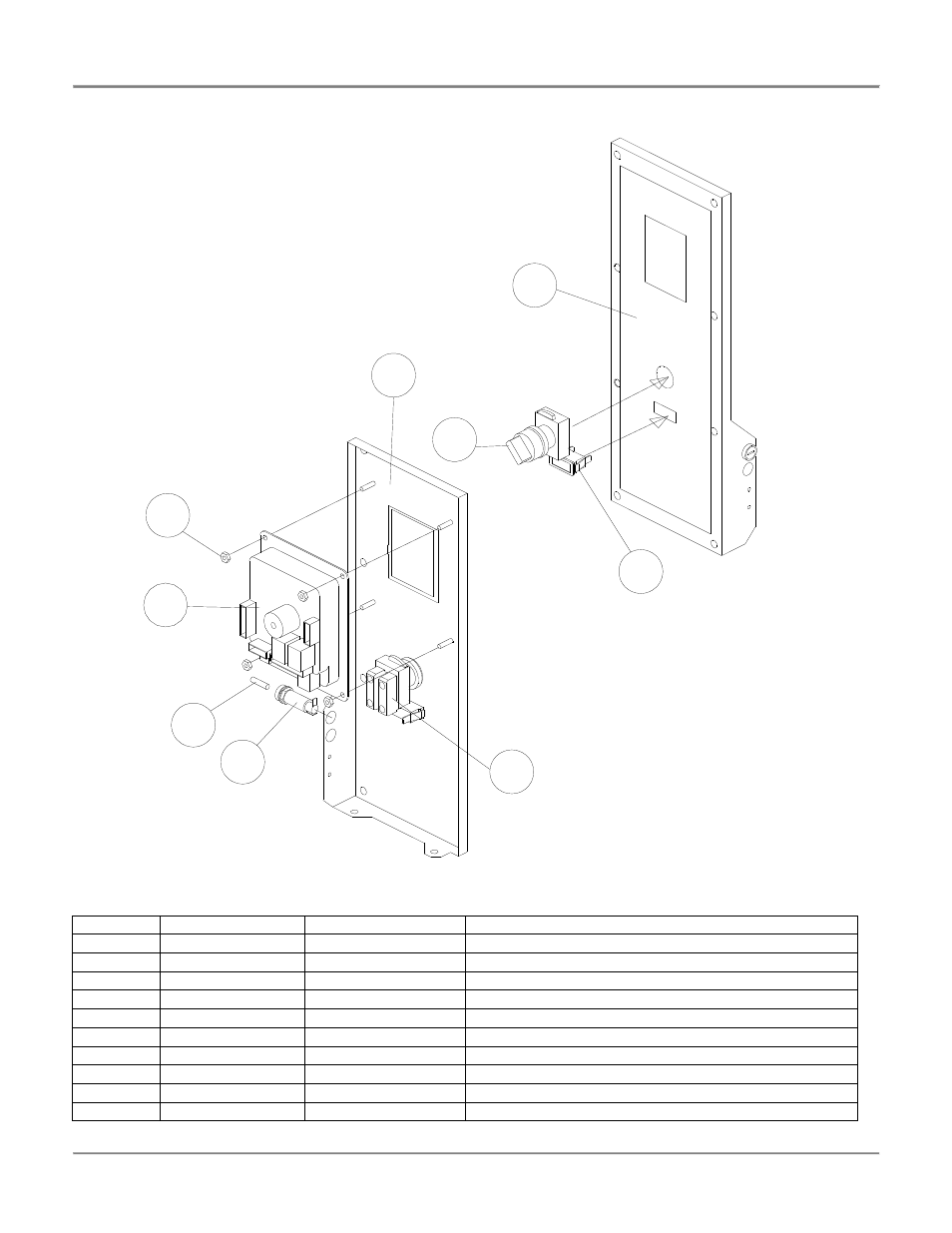

Figure 5. Control Plate, Color Touch Tec
Table 5. Control Plate, Color Touch Tec
ITEM # PART # QTY DESCRIPTION
1 S0307 2 CONTACT BLOCK, 1 N.O.
2 FB55163810 1 CONTROL PLATE – COLOR TOUCH TEC
3 CP0048 1 CONTROLLER, COLOR TOUCH TEC
4 N0575 1 DECAL, COLOR TOUCH SCREEN
5 FU010UK 1 FUSE, 1/2 A - 5 x 20 mm
6 FU004UK 1 FUSEHOLDER - 5 x 20 mm
7 WH0023 * 1 HARNESS, CONTROL PLATE
8 NUT276 4 NUT, #8-32 KEPS
9 LI016UK 1 PILOT LIGHT, CLEAR - 250V
10 S0304 1 SWITCH OPERATOR, 2 POSITION
* - not shown
