APG ACF-10 user manual - Manual (Page 7)

ACF-10 Series Rev. 1a, 2/03
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • [email protected]
6

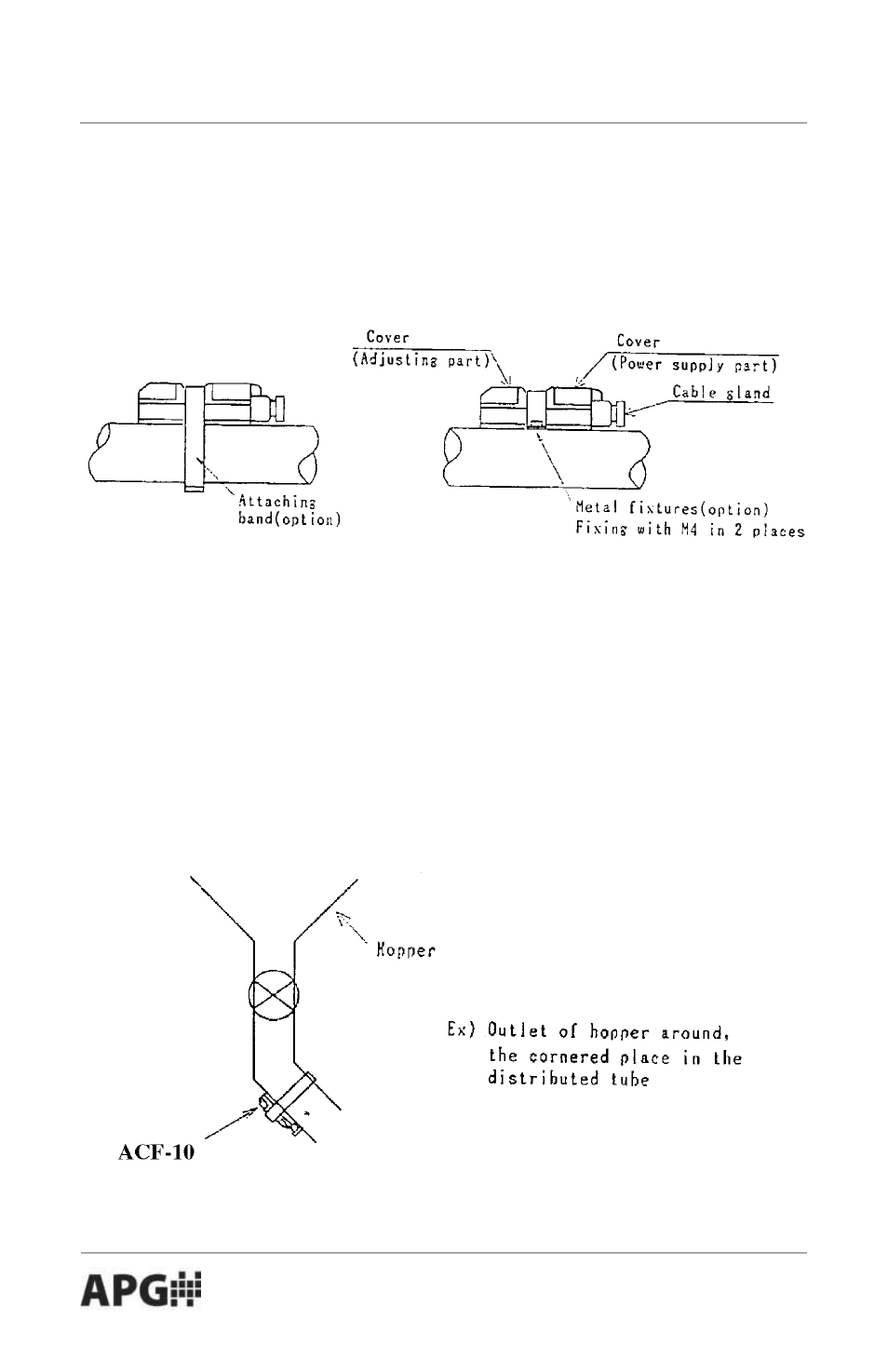

• Installation
The ACF-10 can be attached by fastening the band or the metal fixtures with
two bolts.
Cautions in Selecting a Place to be Attached
Select a place where a lot of sounds and vibrations are generating to install
the ACF-10. Be sure to install the receiving part so that it can contact firmly
with the wall of a distributed tube. If the receiving part does not contact firmly
due the rugged surface of the wall, paint the surface with silicon grease etc. to
increase the contact efficiency. Unless the receiving part is in contact firmly
with the wall, the sensor will be insensitive.
