ACF-10 Series Rev. 1a, 2/03
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • [email protected]
10
Other Functions

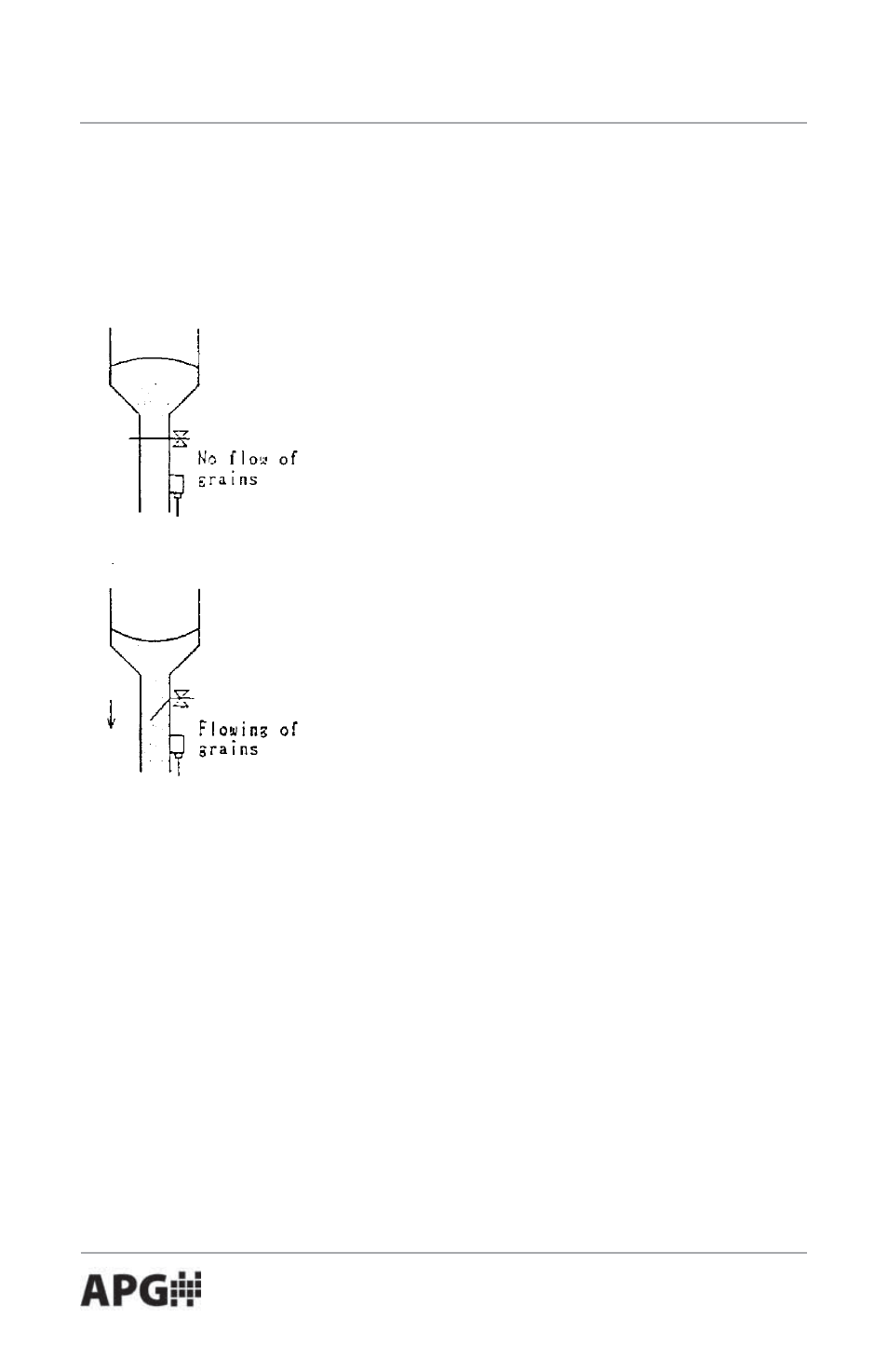

(1) Setting of DETECT switch
• Depending upon position of DETECT switch, the relay will operate as
follows:
Relay Contact
Detect Side OFF OPEN
Non Detect Side ON CLOSE
Relay Contact
Detect Side ON CLOSE
Non Detect Side OFF OPEN
(2) Setting of DELAY TIME
ON DELAY OFF DELAY
0.1 to 7 seconds 0.1 to 7 seconds
ON DELAY: Delay in output for change from non-detection to detection.
OFF DELAY: Delay in output for change from detection to non-detection.
