Rev. 1a, 2/03 ACF-10 Series
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • [email protected]
11
• Cautions on Handling
Wiring
Use the connection cables of ø5 to ø10 mm cross section.
If using cables other than specified diameter and strained cables, drip-proof
must be maintained.

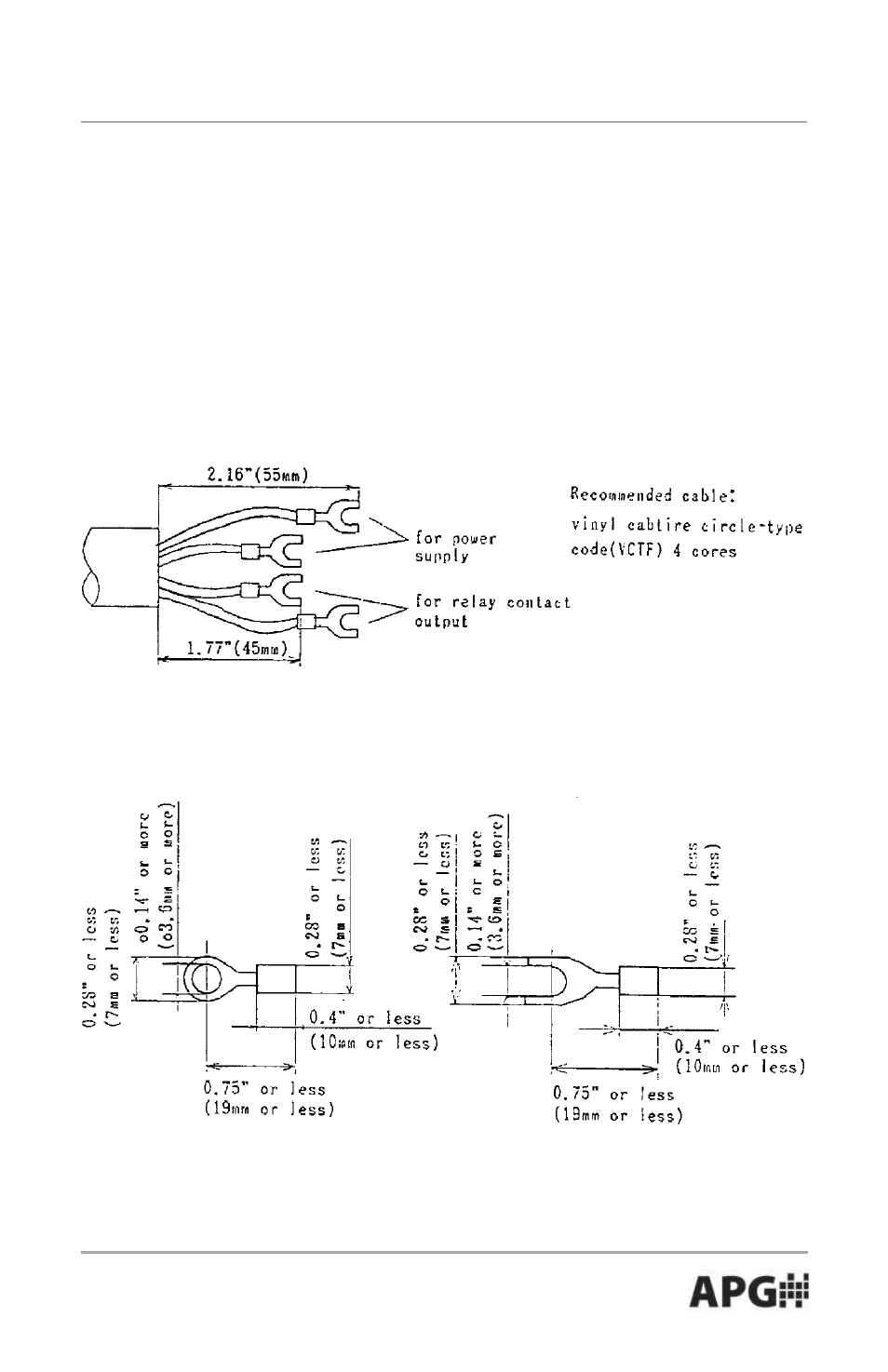

Treat the cable as shown in the following figure.
After passing the cable through the cable gland, making press-fit is
recommended for easy-to-work.
Shape of solderless terminals for cable
Use the solderless terminal with the size as shown in the figure below.
Recommended press-fit terminal: nominal 1.25-3.5
Use the terminal with insulating tube.
