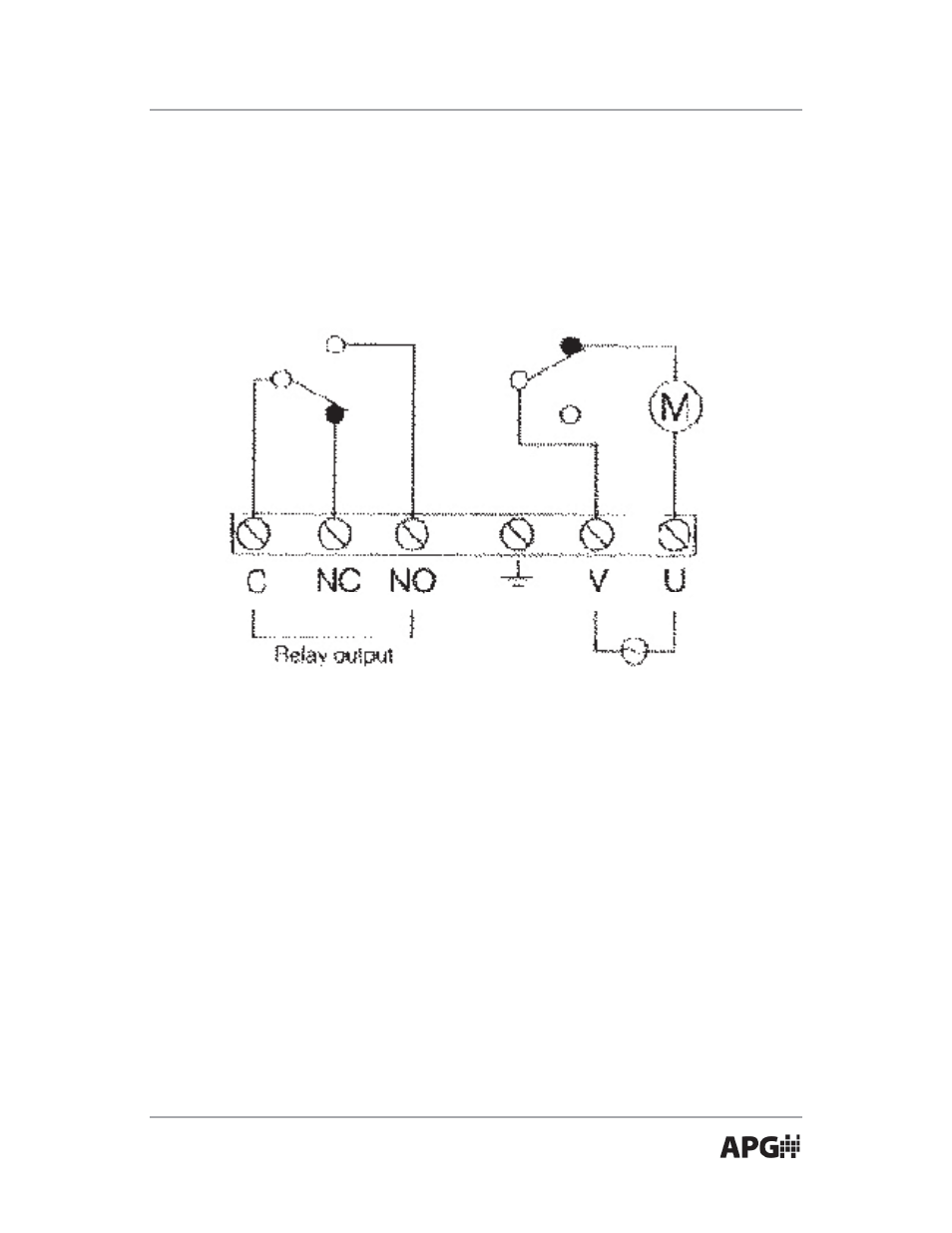

• Wiring
PWS-X Series (PWS-X, PWS-XL, and PWS-XT)
Wiring should be in accordance with all local codes. The PWS provides 5
cores 0.5 mm 2 PVC insulated cable. Install solderless terminals or sleeves to
the end of the conductors.
Contact Capacity (Resistive)
250 V 3 A AC
30 V 4 A DC
Power Consumption 1.5 VA
CAUTION: Make sure the supplying voltage and the wire color matches. The
wrong voltage or miswiring may damage the sensor.
WARNING: To avoid personal injury, DO NOT remove the housing cover
when power is applied.
