PERFECT SHADE EMBEDDED IN CONCRETE
ALTERNATE INSTALLATION INSTRUCTIONS
When installing a frame that will
be embedded in concrete, frame
must be assembled prior to
setting in concrete.

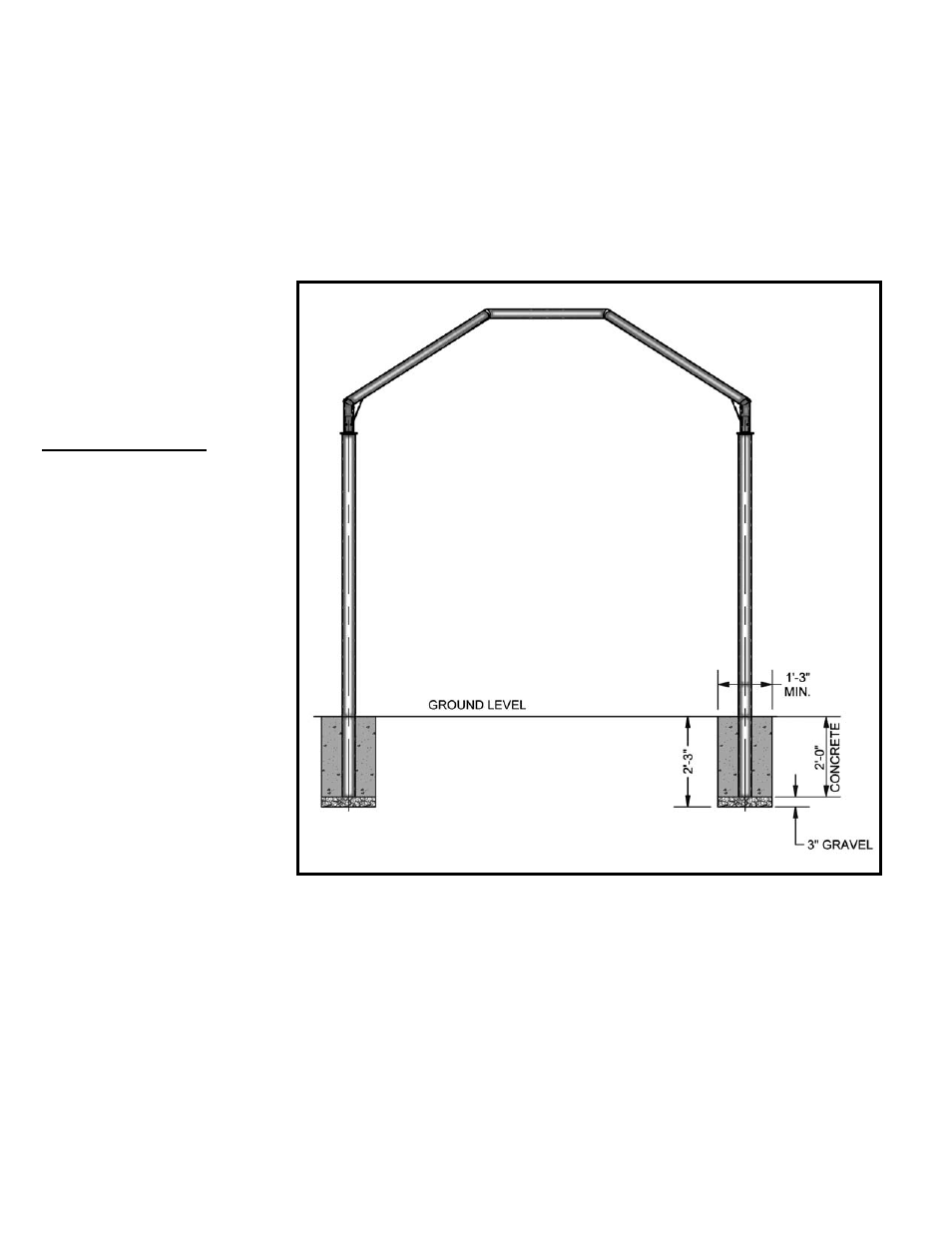

Step 1 Alternate
Using Dimension Chart in
Step 1, dig (4) 1’-3” minimum
diameter holes, 2’-3” deep or as
required by soil conditions or
local code.
Add 3” of gravel to bottom of
holes. (Bottom of pole must be
allowed to drain water)
Frame may be assembled with
uprights in holes. See steps 5
through 12 for frame assembly.
When frame is assembled,
plumb and level frame and
brace into position.
Fill concrete to ground level.
Allow concrete to dry 72 hours
before installing fabric. See
steps 13 through 22.
Note: Concrete and gravel for
setting uprights for embedded
frame is required. Installer to
supply.
This page must be used in conjunction with standard Perfect Shade Installation Instructions
