Anchor PERFECTSHADE - Manual (Page 3)

Step 1:
Choice of 1/2” diameter anchoring devices are at the discretion of the customer and not supplied by Anchor Indus-
tries.
Place anchoring devices as shown on the plan view below. (4) anchoring devices per base plate.
Note: For Your Convenience, (1) Template is supplied at the center of this manual.

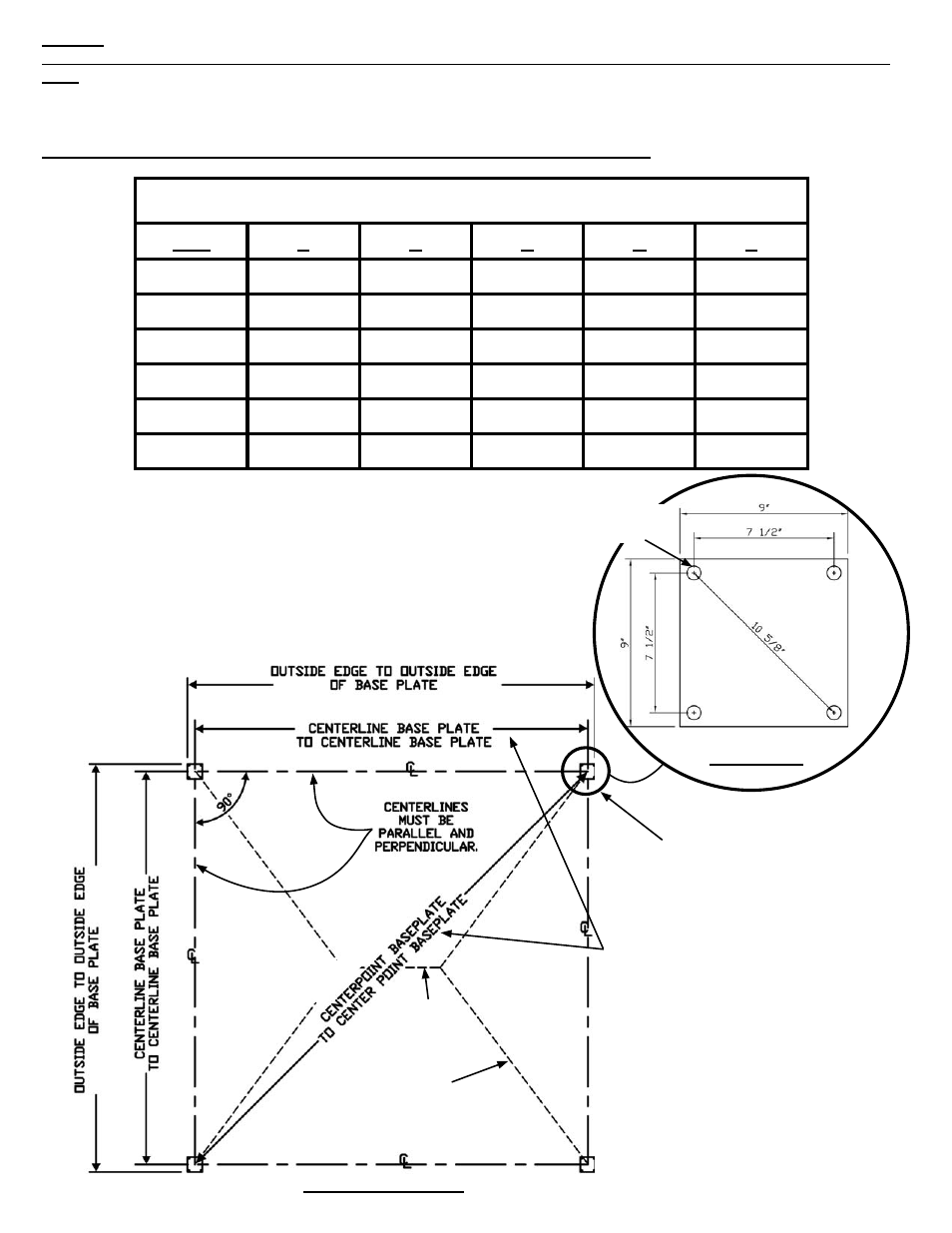

Base Plate Layout
Base Plate
(Typ. 4)
Base Plate
(4) 3/4” dia. holes for 1/2”
dia. anchoring devices.
Dimensions are to center
points of base plates un-
less noted otherwise.
DIMENSION CHART
FOR BASE PLATE LAYOUT
Size A B C D E
10’ x 10’ 9’- 10” 9’-10” 10’-7” 10’-7” 13’-10 7/8”
10’ x 15’ 14’- 10” 9’-10” 15’-7” 10’-7” 17 -9 9/16”
10’ x 20’ 19’- 10” 9’-10” 20’-7” 10’-7” 22’-1 5/8”
15’ x 15’ 14’- 10” 14’-10” 15’-7” 15’-7” 20’-11 3/4”
20’ x 20’ 19’- 10” 19’-10” 20’-7” 20’-7” 28’-0 9/16”
20’ x 30’ 29’- 10” 19’-10” 30’-7” 20’-7” 35’-9 7/8”
“C” Ref. dimension
“A”
“E” Diagonal
“D” Ref. dimension
“B”
Corner AA
Corner BB
Corner DD
Corner CC
Ridge
Frame shown in
dashed lines
Caution: Concrete installation
surface must be level.
