Anchor PERFECTSHADE User Manual

Page 4

Step 2

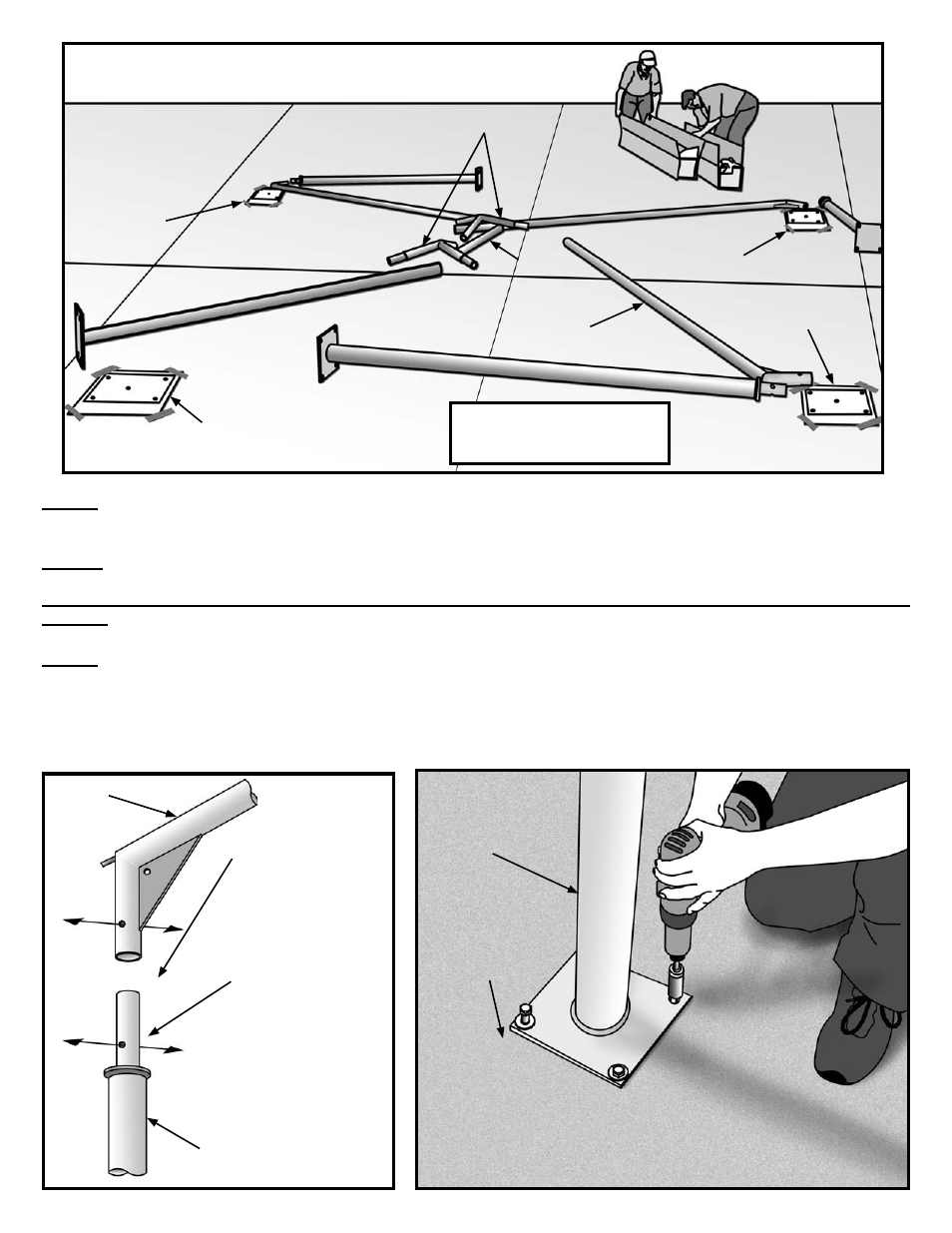

Layout frame members as shown above in their approximate fi nal placement. (See base plate layout in Step 1)

Step 3

Stand one of the uprights over the installed anchors at Corner AA. (See Figure 2)
Warning: Examine the orientation of the upright so that when hip is attached it will be pointed toward the ridge. (See
Figure 3)

Step 4

Fasten the base plate to the anchors and tighten to snug. (See Figure 4)

Figure 4

Remove template
before base plate
installation.

Corner BB
1st Base Plate
Template

Corner AA
2nd Base Plate
Template taped to
concrete surface.

Ridge

Figure 2

Corner CC
Base Plate
Template

Corner DD
Base Plate
Template

Upright

Slide hip down
over upright align-
ing holes.

Figure 3

Note that hole thru
top of upright is
perpendicular to
hip and aligns with
hole in hip.

Upright

Hip

Peak Weldments

Note the orientation of the corners to the ridge. Base plates
MUST be laid out in this order. -- AA, BB, CC and then DD.

Hip

Note: All uprights are iden-

tical, but proper orientation is
critical as noted in Step 3.
