Anchor CENTURY 80 WIDE - Manual (Page 4)

MANPOWER REQUIRED
Five experienced installers
should be able to assemble an
80’ x 70’ tent in approximately
five hours.
TOOLS REQUIRED
Sledge Hammers
Stake Driver
2 Measuring Tapes
LAYOUT & CHECK
Utilize parts list for a quick I.D. and a check list to
ensure that you have all the parts.
PARTS
QUANTITY PER SECTION
END (SQ. OR
ROUND) (PAIR)
20’ MIDDLE 30’ MIDDLE
BAG WITH FABRIC SECTION 2 1 1
CENTER POLE 2 2 2
SIDE POLE 24 4 6
POLE CAP (OPTIONAL) 2 2 2
SEE WEB GUY LAYOUTS & STAKING TABLES FOR STAKING REQUIREMENTS.
Pole Cap
Bag with Fabric
Section
Center Pole
Side Pole
4
Stake driven through
hole in bar and winch
plate
Stake line
Stake line
4’ STAKE BAR 2’ STAKE BAR
Stake driven through
hole in bar and
winch plate

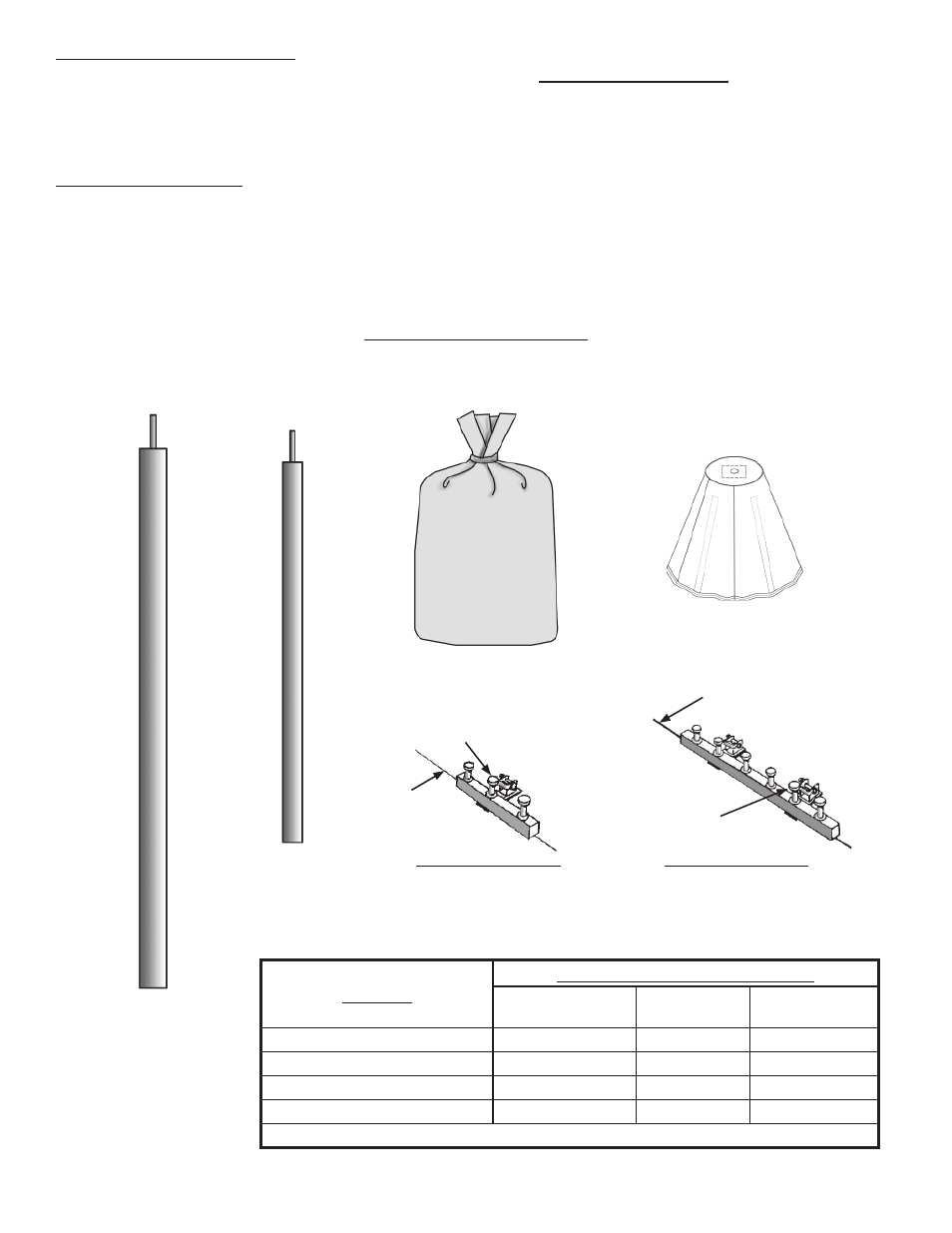

Parts Illustrations
