Web guy layout for 20’ x 40 – Anchor FIESTA FRAME TENT 18-22 User Manual
Page 9

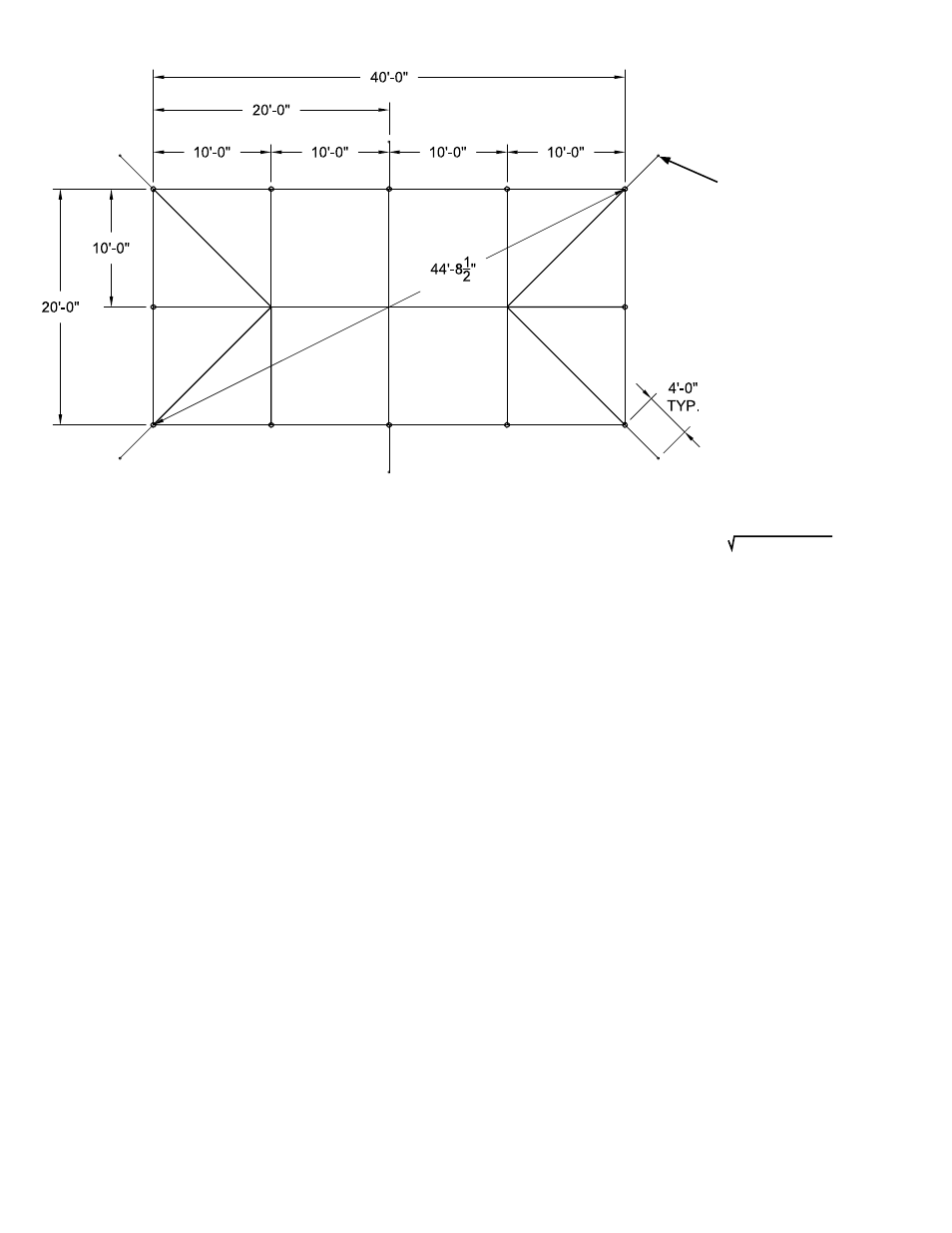

WEB GUY WITH 1” x 30”
STAKE (TYP. 6)
WEB GUY LAYOUT FOR 20’ x 40’
9
**
** To find diagonal measurement:
diagonal = width² + length²
*
IMPORTANT NOTE: REFER TO CAUTION STATEMENT #2 FOR IMPORTANT WARNING ABOUT NUMBER OF
STAKES SUPPLIED. (SEE BACK PAGE OF THIS MANUAL)
THE INSTALLER MUST USE THE LOCAL SOIL CONDITIONS TO CALCULATE THE ACTUAL
NUMBER OF STAKES REQUIRED AND IS RESPONSIBLE FOR THE STAKING PATTERN AND
CONFIGURATION.
ANCHOR PROVIDES ANCHORING PACKAGES FOR COMMON SOIL CLASSIFICATIONS;
CONTACT YOUR TENT SALES REPRESENTATIVE FOR MORE INFORMATION.
