Tools required, Ridge and cross bars – Anchor FIESTA FRAME TENT 18-22 User Manual
Page 7

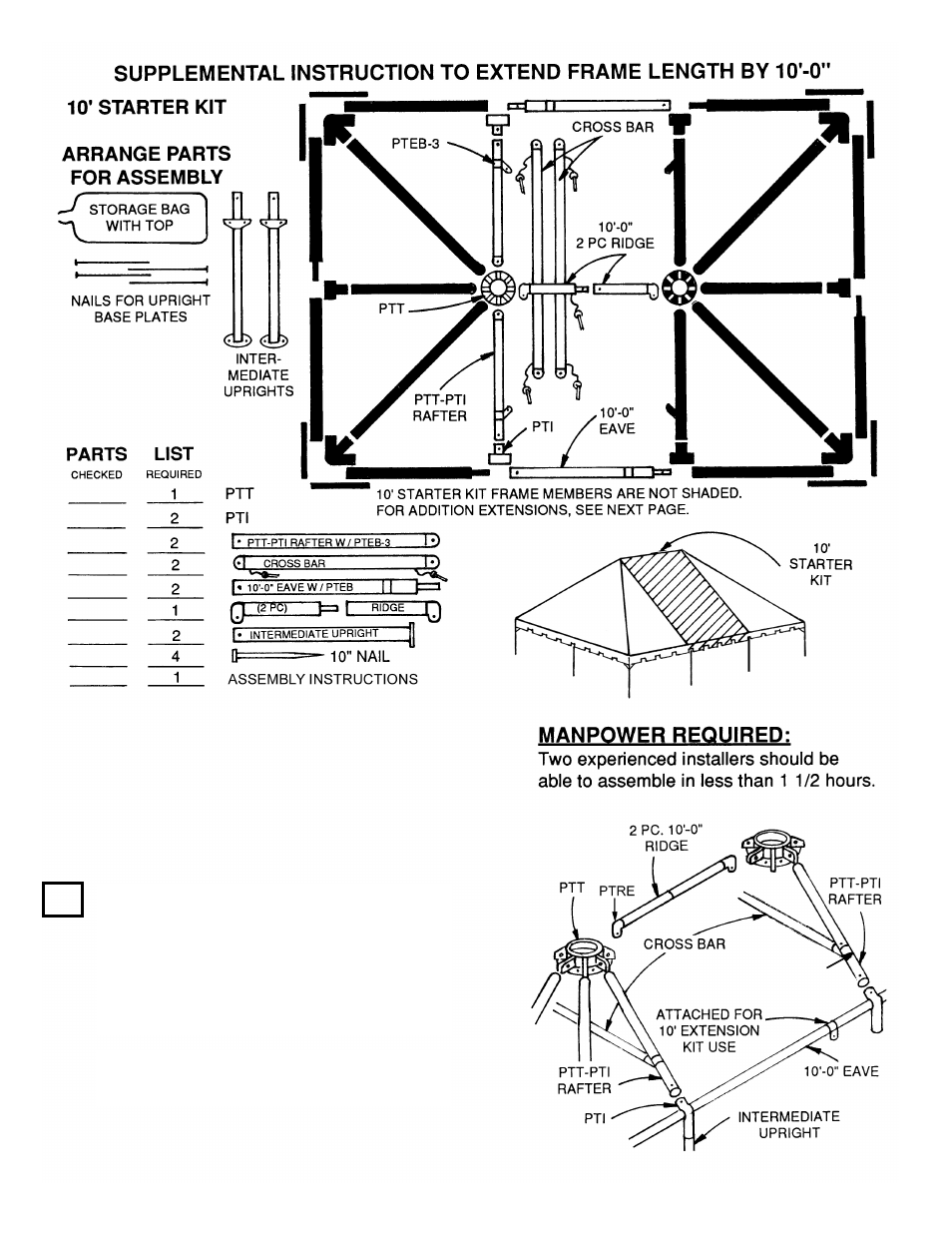

Connect 2-pc ridge and pin to PTTs using the PTRE
pointed downward so that the ridge is elevated.
Pin cross bars together and attach to frame as shown.
PTEB
7
TOOLS REQUIRED
Drill and 1/4” Bit
RIDGE AND CROSS BARS
Connect 2-piece ridge and pin to PTTs using the
PTRE pointed downward so that the ridge is el-
evated.
Pin Cross bars to PTEBs on rafters.
3a
