Anchor CENTURY FRAME TENTS 10X10, 15X15, 5M AND 20X20 User Manual
Page 6
6
Channel
opening
Upright

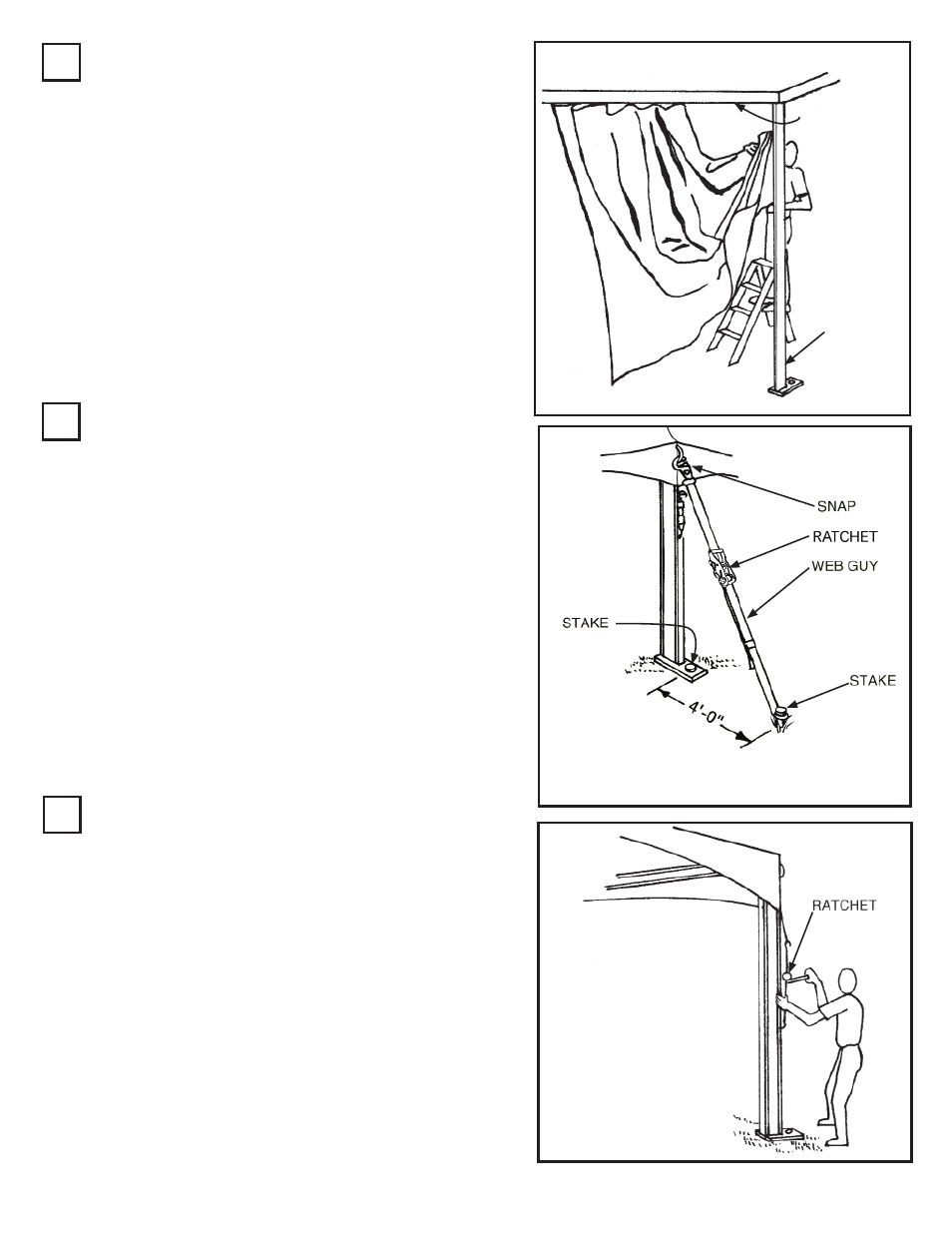

At each upright, gather up wall and insert bottom of
beading (kedar) into channel opening at top of upright.
Feed all of beading into channel.
Position tent to desired location. Drive a 1” x 30” stake
through each baseplate. Fasten guy web snap to ring
on corner weldment.
At other end of web guy, drive a 1” x 30” stake through
the ring. Tension guy web. See illustration for position-
ing of stake.
See guy web operating instructions provided.
IMPORTANT NOTE: PLEASE REFER TO
CAUTION AND OTHER ANCHORING IN-
FORMATION ON BACK PAGE.
A fi rmly tensioned top is “required” for proper installa-
tion. Pull fabric tightly and smoothly to minimize water
pooling, wind damage, fabric shifting. Use ratchets to
tension guy webs and tension straps.
Adjust center Pole if necessary to adjust the tension on
fabric top.
9
10
11
ATTACH WALLS TO UPRIGHTS
SECURE TENT
TENSION TOP
Corner guy is at 45 degrees.
