4

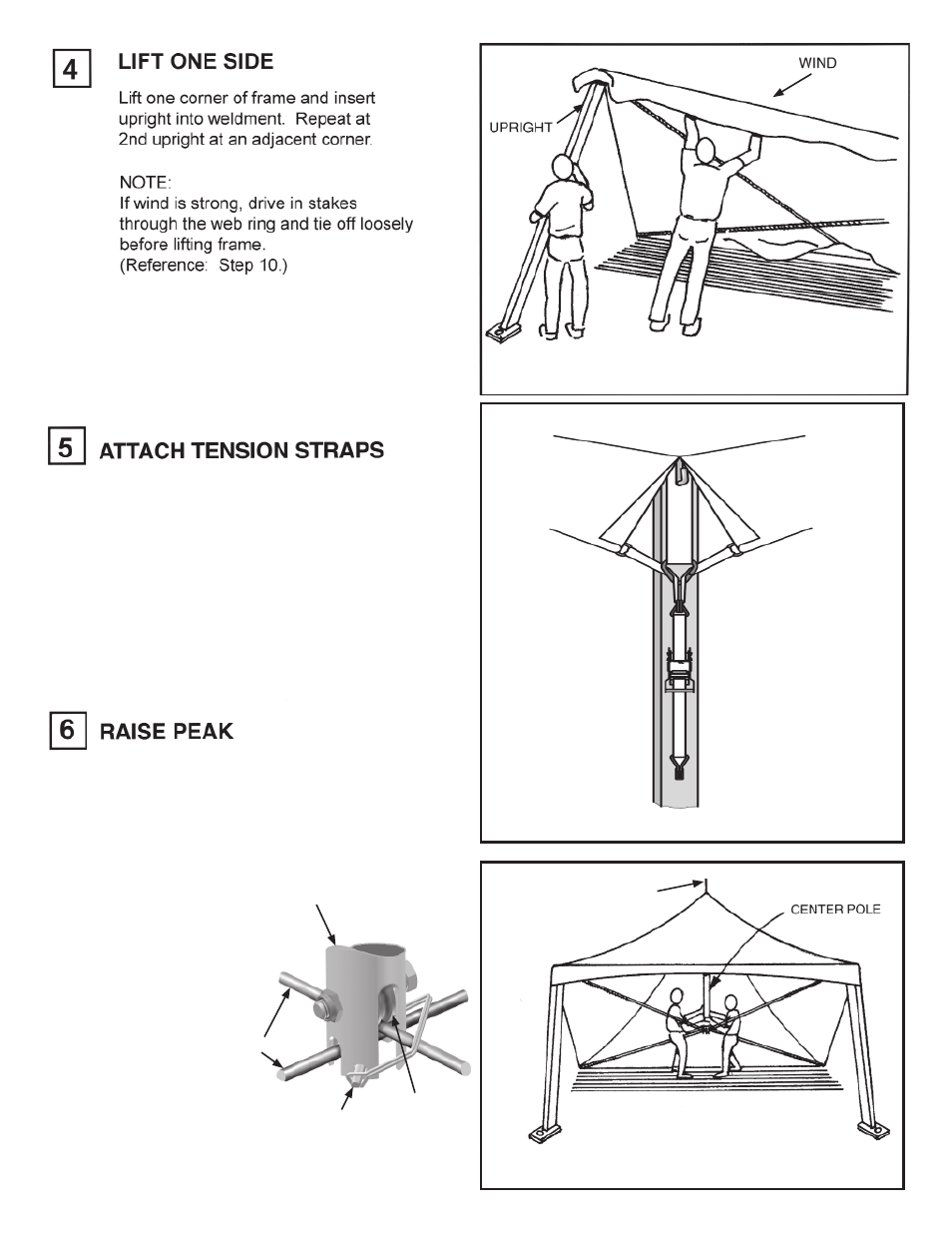

Place curtain web through triangle ring at end of tab as
shown. Fasten upper hook of tension strap to curtain
web. Insert lower hook into slot in upright.
Use ratchet to take up slack in web. This prevents up-
rights from sliding off weldment when other side of tent
is raised.
Do not tension at this time.
Repeat at other uprights in similar fashion.
Carefully position center pole pin through pole hole in
top. Use caution to prevent tearing of fabric. Raise top
by pushing pole on the upper cable. Slide pole along
cable in slot at bottom of pole and attach lock pin to
secure.
Caution:
Base of pole is on a roller
for east of installation. Be
sure movement of pole
is controlled (fi rmly held)
during installation and
removal to prevent base
from moving too quickly.
Center Pole
Cables
Lock Pin
Roller
CENTER POLE PIN
