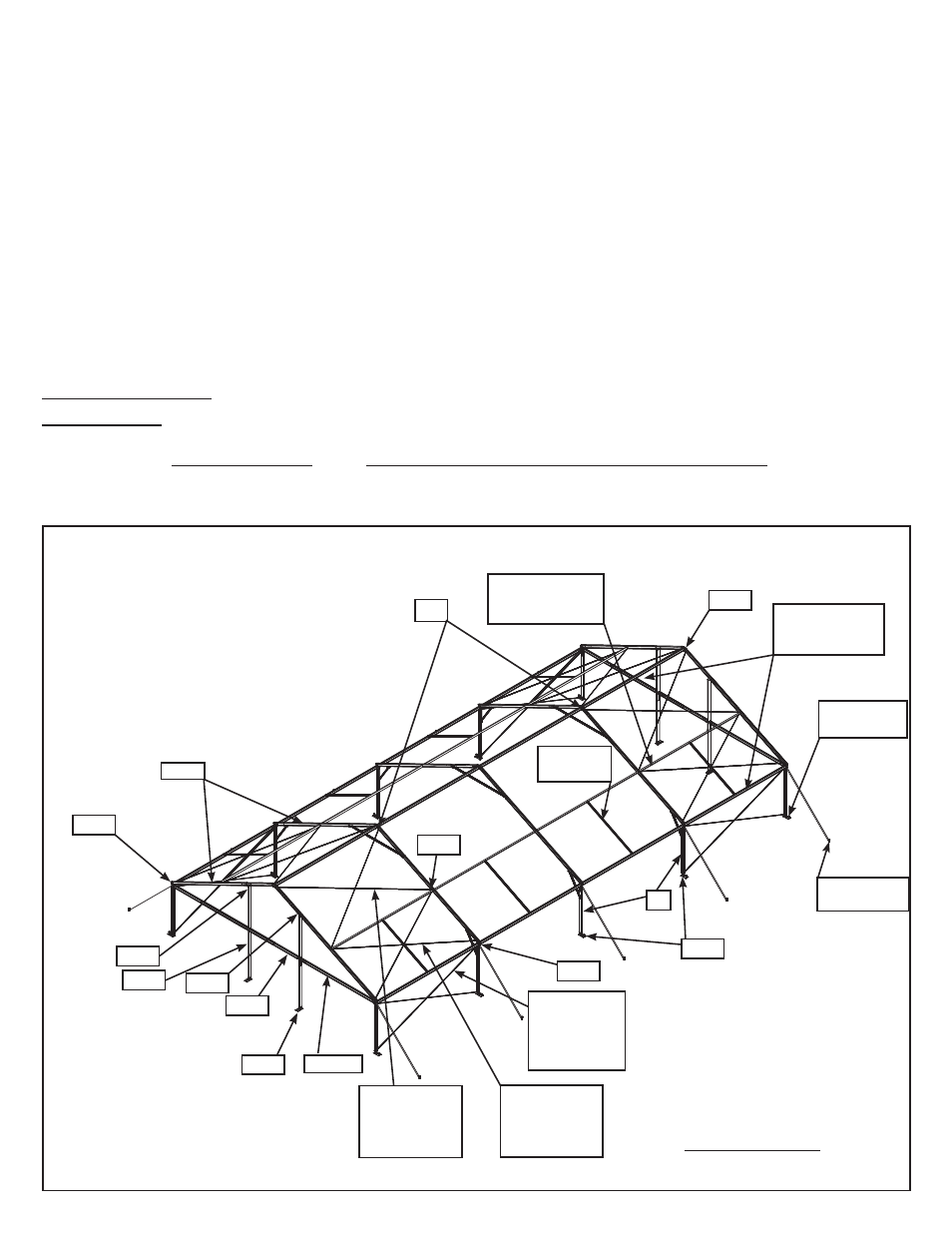

40’ Gabled Navi-Trac Frame Terminology
INTRODUCTION:
Like the hip-end version, the gabled end NAVI-TRAC frame is made up of extruded aluminum members joined by weldments. The alu-
minum frame members themselves are extruded with channels into which the NAVI-TRAC fabric “kedar” is fed. However, the gabled
end version of the Navi-Trac differs from the Hip End version in a number of ways:
1. All the beams are parallel to each other.
2. Beam base plates are hinged for pivoting to a vertical position. End Upright plates are fixed, non-pivoting.
3. The eave fittings are the MCW style that allows a simple drop-in action for purlin installation, rather
than the slip joint of the hip end configuration.
4. Fabric middle bays are installed into the channels of adjacent beams one bay at a time.
5. Gabled End fabric is intalled simply into the outer channel of the end beams and tensioned to the
Gabled End uprights.
6. X- cabling extends into the overhead rafter area to compensate for the lack of hip end support.
7. Corner guys are in one direction only, parallel to the beams.
Note: It is possible to combine the hip end and gabled end styles within one building unit (see kit #3); however, this assembly manual
focuses on the gabled end configuration only. The last few pages describe the hip/gabled combination and refer the customer to the
hip end assembly manual for the hip end part of the building unit.
ER10, 15, or 20
Dependent upon
mid bay width.
EW15
R21-9
P1, P2 OR P3
Dependent upon
mid bay width.
UG-15
U8
BFW
BHW
MCW
RWE
RW
XRB
UGT
X-7, 8 or 9
Dependent
upon mid bay
width.
X-1, 2 or 3
Dependent
upon mid bay
width.
P1 for 20’
bay only.
MCW
See Component List Table on Pages
5 & 6 for component descriptions.
3
EE10
GRW
X-4, 5 or 6
Dependent
upon mid bay
width.
INSPECT SITE
CAUTION:
Consult your local utility locator service or the National Utility Locating Contractors Association (NULCA) prior to
installation.
Prior to actual tent assembly, be sure to look up, down, above & below for obstacles, pipes, wires, trouble, etc.
30” Stake at
Base Plates
42” Stake for
each Guy
