Anchor PZ (PARTY) SERIES - PROFILE SIZE: 94MM X 48MM ADDENDUM - HEX END - Manual (Page 5)

5

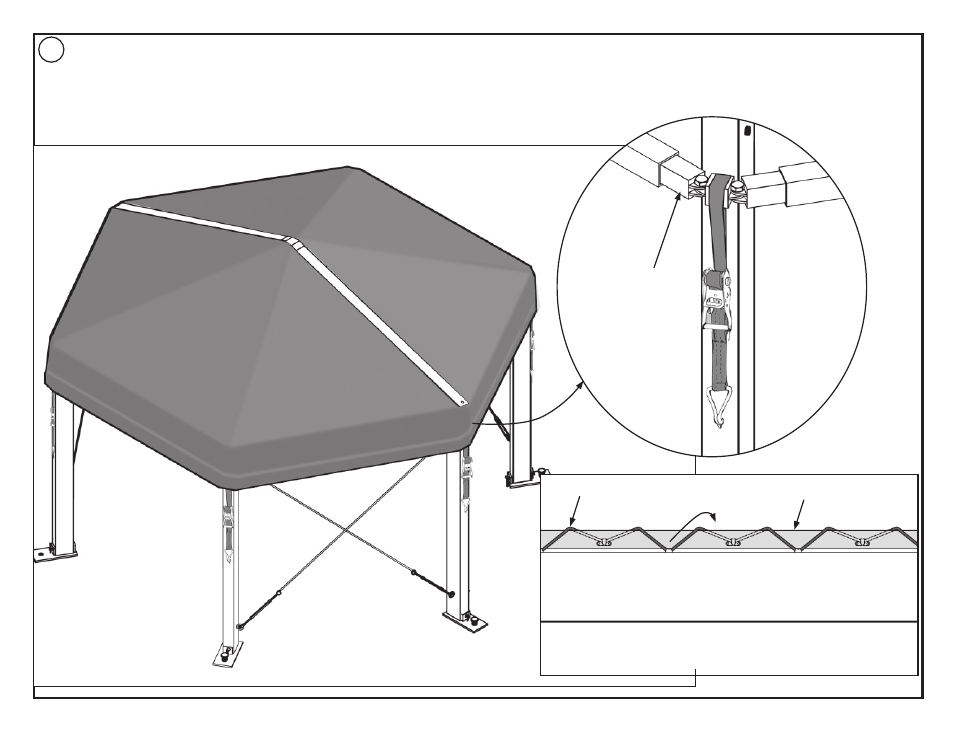

After fabric is pulled into frame channels, fabric must be tensioned into place by one of two methods.
Figures 7a & 7b show the Tension bar method. This is the same method as shown in the standard PZ instructions.
The difference is that at the corner, a hinged tension bar will be used. See Figure 7b.
Figure 7c shows Bungee Cord method.
7
Figure 7b
Hinged Tension
bar insert for
corners.
Figure 7a
Figure 7c
VIEW LOOKING AT EAVE
PURLIN FROM INSIDE TENT.
Eave Purlin
Upright
Bungee cord comes up over inside of
purlin and over top of purlin to catch on
hook on outside face of purlin.
Bungee Cord
Bottom of Curtain
