Anchor PZ (PARTY) SERIES - PROFILE SIZE: 94MM X 48MM ADDENDUM - HEX END - Manual (Page 2)

2

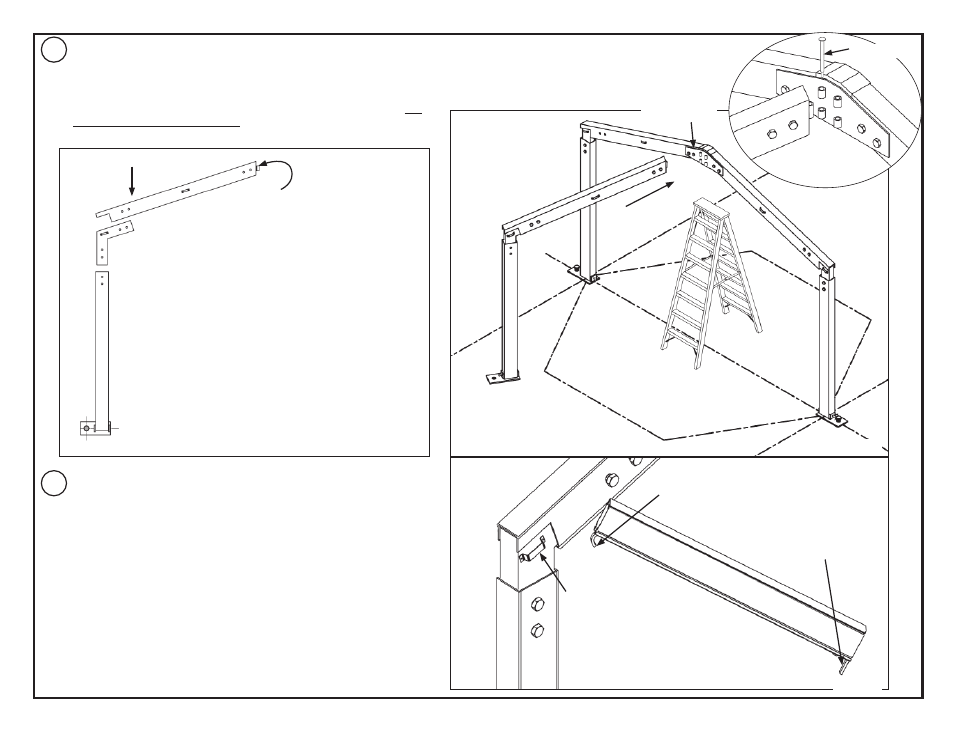

Move wing arch into
place and pin at ridge
as shown.
Continue holding the main arch with (2) installers.
Assemble wing arch just as you would assemble a standard arch,
beginning at base plate. Use (2) installers to raise arch to vertical. Move
arch to ridge and attach with pin as shown in Figure 2b.
Continue raising and attaching wing arches until they are all raised. Do
Not stake wing arches at this time.
Install Eave purlins all around Hex end. Insert curved tab of purlin into
eave bracket first, then, using a purlin fork, lift the other end of the purlin
and drop into the bracket of the adjacent arch.
2
3
12mm pin
Hex end Plate
Wing arch rafter has hinge insert to
fit to Hex End Ridge plate with 12mm
pin.
Assemble wing arch
Figure2a Figure 2b
Eave bracket
Curved Tab
Eave Purlin
Straight Tab
Figure 3a
